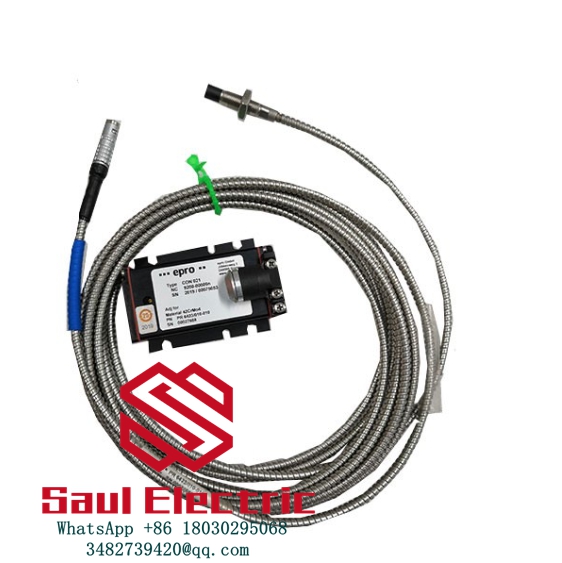

Epro PR6423/011-110+CON021 Turbine Vibration Sensor
Epro PR6423/011-110+CON021 is a non-contact eddy current sensor used in conjunction with Emerson AMS6500/MMS6000 A6110 axis displacement monitor. PR6423/011-110+CON021 main applications: steam turbine, gas turbine, centrifugal compressor; When the vibration exceeds the threshold, a warning and emergency stop interlock are triggered.

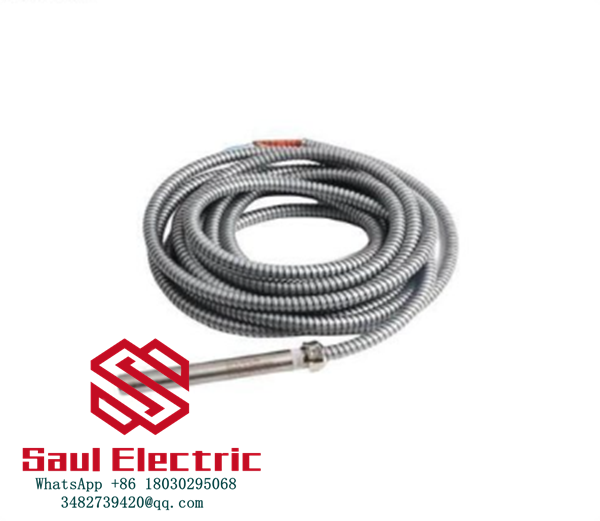

- PR6423/011-110: 8mm eddy current probe with LEMO plug, converts shaft gap variation into tiny impedance signal for shaft vibration and axial thrust displacement measurement.
- CON021 Preamplifier: Conditions, amplifies and linearizes probe signal, outputs standard -4~-20VDC gap voltage to TSI card; detects broken wire, short circuit and reverse power supply.
- Main application: Steam turbines, gas turbines, centrifugal compressors; triggers pre-alarm and emergency shutdown interlock when vibration exceeds threshold.
Specifications of PR6423/011-110
| Parameter Item | Specification |
|---|---|
| Full Model | PR6423/011-110 |
| Probe Diameter | φ8 mm |
| Linear Range | Static ±1.0 mm; Dynamic 0~500 μm |
| Sensitivity | 8 V/mm |
| Mount Thread | M10×1 mm, standard unarmored sleeve (code 011) |
| Cable Type | Non-armored shielded cable |
| Total Cable Length | 8 m (code 110) |
| Terminal Interface | LEMO aviation plug (only match CON021) |
| Standard Install Gap | 1 mm, output reference voltage -12 V |
| Applicable Shaft Material | Ferromagnetic carbon steel |
| Minimum Shaft Diameter | ≥25 mm |
| Probe Operating Temp | -35 ℃ ~ +180 ℃ |
| Protection Grade | IP66 |
| Linearity Error | ≤1.0% FS |
| Explosion-proof Class | Ex ib IIC T6 Intrinsically Safe |
| Matching Preamplifier | CON021 (Not compatible with CON041 screw terminal type) |
Specifications of CON021 Preamplifier
| Parameter Item | Specification |
|---|---|
| Product Type | Eddy current signal conditioner preamplifier |
| Power Input | DC -23 V ~ -32 V (nominal -24 V) |
| Linear Output Range | -4 V ~ -20 V DC, midpoint -12 V |
| Output Internal Resistance | 100 kΩ |
| Frequency Response | 0 ~ 20000 Hz (-3dB) |
| Rise Time | < 15 μs |
| Connection Port | LEMO aviation socket |
| Built-in Protection | Open circuit, short circuit, reverse power protection |
| Operating Ambient Temp | -30 ℃ ~ +70 ℃ |
| Mounting | DIN rail clip-on installation |
| Protection Grade | IP20 |
| Weight | Approx. 100 g |
| Matching Monitor Card | A6110 shaft relative vibration & axial displacement module |
