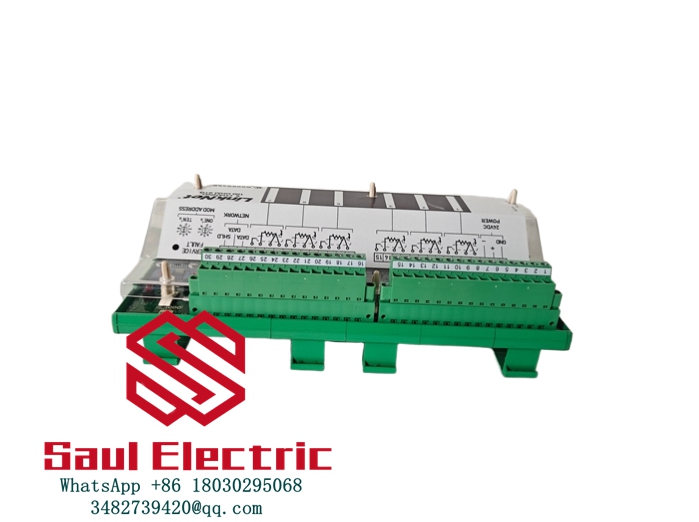

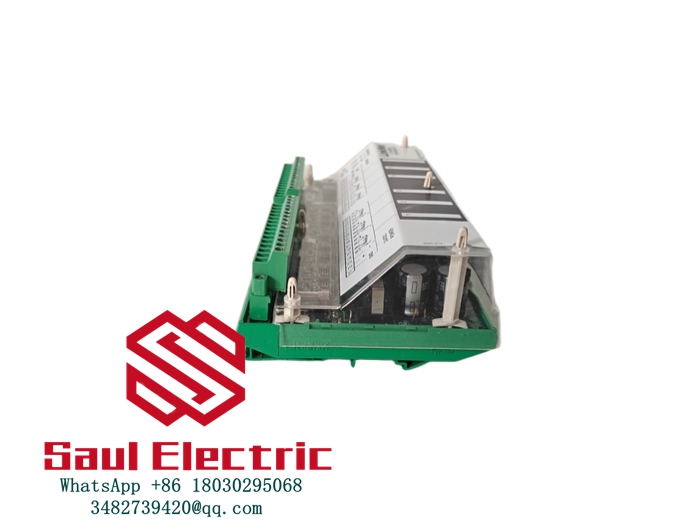

Woodward LinkNet Series 9905-973 8-Channel Relay Output Module
9905-973 belongs to the Woodward LinkNet series of 8-channel relay output modules, which are matched with I/O expansion modules for turbine control systems. They are installed in a rail mounted manner and communicate with the host controller through the LinkNet bus. They are discrete output units that are matched with gas/steam turbine control systems.
Product features
- 8 independent relay dry contact output channels, each channel electrically isolated, suitable for driving on-site solenoid valves, alarm circuits, interlock circuits, with strong anti-interference ability.
- LinkNet dedicated bus interface, directly connected to Woodward turbine control system, stable communication, supports module fault diagnosis, panel LED indicator lights, intuitively view channel operation and fault status.
- Standard DIN rail installation, quick assembly inside the cabinet, pluggable wiring terminals, easy maintenance and replacement.
- Relay contact isolation isolates the control system from the on-site strong current circuit, avoiding on-site interference and surge damage to the main control unit.
- Wide temperature working range, suitable for harsh cabinet conditions such as high temperature, humidity, and high vibration in power plants and oil and gas plants.
| Parameter | Value |
|---|---|
| Model | 9905‑973 |
| Series | LinkNet |
| Channel quantity | 8‑channel relay output |
| Communication bus | LinkNet bus |
| Power supply | 18‑32 V DC |
| Max current per channel | 2 A |
| Total power consumption | 14 W |
| Mounting type | DIN rail mounting |
| Isolation voltage | 1000 V RMS |
| Operating temperature range | ‑40 ℃ ~ +70 ℃ |
| Storage temperature range | ‑40 ℃ ~ +85 ℃ |
| Humidity | 0‑95% non‑condensing |
| Weight | 4.13 kg |
| Origin | USA |
| Certification | CE, UL |
Woodward LinkNet Series 9905-973 8-Channel Relay Output Module
Woodward PEAK200-HVAC 8200-1501 Steam Turbine Control
AC 800 PEC GFD563A102 3BHE046836R0102 low-speed process control
EMERSON 5X00875G01 Ovation OCR3000 Controller Atom CPU Module
ProTech-GII Woodward 8237-1246 Designed for speed detection system
ProTech-GII Woodward 5437-1119 Spare module for safety device
Usage scenarios
- I/O expansion of gas turbine and steam turbine control systems, outputting interlock protection signals, alarm signals, and solenoid valve drive signals.
- The complete control system for the generator set and steam turbine generator realizes the switch control of auxiliary oil pump, cooling fan, and sound and light alarm circuit.
- The turbine drive control system for compressor units in the oil and gas industry includes on-site valve components and interlock circuit outputs.
- Replacement of old equipment spare parts for Woodward LinkNet system in stock, with the original module damaged and replaced in place without the need to modify the program or wiring.
- Expansion of discrete output inside the control cabinet of power plant thermal and chemical process turbine units.
