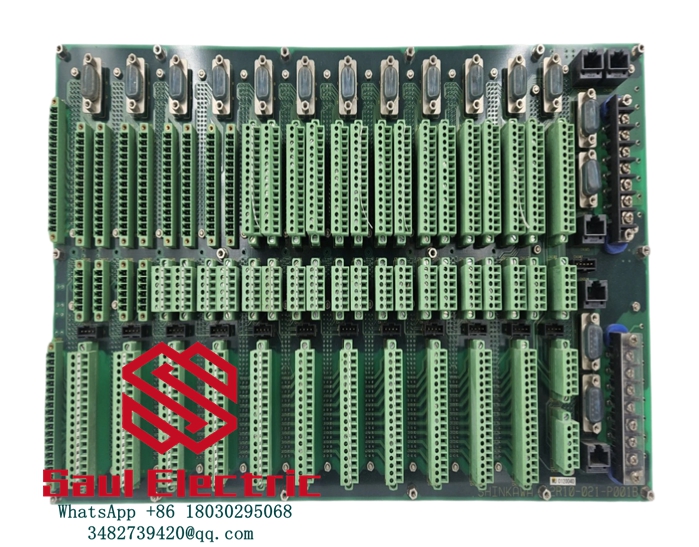

SHINKAWA VM-742B1 TSISI monitoring system external communication network gateway board
SHINKAWA VM-742B1 is an external communication gateway board of SHINKAWA VM-7B series TSI monitoring system, specially designed for long-distance data transmission of rotating machinery monitoring signals. SHINKAWA VM-742B1 collects all real-time measurement data and alarm signals from vibration, displacement and speed acquisition boards through the rack backplane bus, and converts internal rack data into standard Modbus TCP and Modbus RTU signals to connect with external control systems. VM-7B It supports dual-network redundant communication deployment to avoid single-link transmission failure, and undertakes the core task of realizing data interaction between the on-site TSI rack and upper DCS, PLC and turbine control system.
Technical Specifications of SHINKAWA VM-742B1
| Item | Specification |
|---|---|
| Communication Interfaces | Dual Ethernet ports (Modbus TCP) + 1 RS485 DB9 port (Modbus RTU) |
| RS485 Baud Rate | 9600 / 19200 bps, parity and terminal resistance configurable |
| Installation Slot | Slot 1 & Slot 2 of VM-76xB standard rack |
| Indicator Lights | Running LED, communication status LED for each channel |
| Working Temperature | 0 ℃ ~ +60 ℃ (indoor cabinet installation) |
| Power Supply | Powered by VM series rack backplane |
| Hot Swap Support | Yes, maintenance without rack shutdown |
| Max Supported Slave Addresses | 247 Modbus addresses |
| Compliance Standard | API 670 rotating machinery protection standard |
SHINKAWA VM-741B VM7 Series TSI Local Communication/Keyphasor Integrated Module

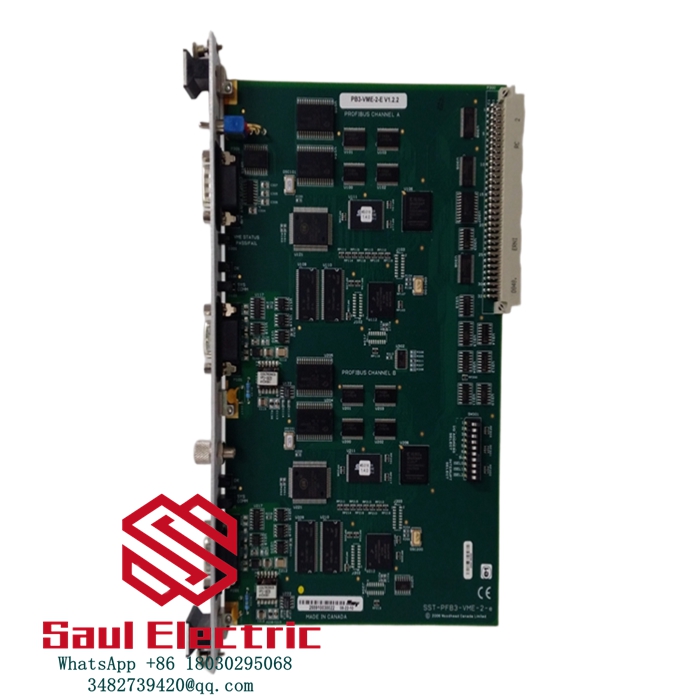

SST-PFB3-VME-2 Dual Channel PROFIBUS-DP VME Communication Card
Single-Slot VMIVME-7698 370 Processor-Based VMEbus Single-Board Computer
VMIC丨VMIVME-5576 Fiber-Optic Reflective Memory with Interrupts
ACS600丨XVC770BE101 3BHE021083R0101 Quality assurance丨warranty 1 year
UNIROL1010 3BHE035301R0001 Is a powerful small indirect excitation system
PP D517 A丨PPD517A3011 3BHE041576R3011 Excitation central executive controller
Tricon/TRICONEX 4119A Enhanced intelligent communication module
HIMA F8652X Controller unit module 984865265
IGBT Electric voltage driven device 5SHX2645L0004 3BHB003154R0101
This communication module is mainly used for TSI monitoring systems of various large rotating equipment. It is widely equipped on steam turbines, gas turbines, generators and large compressors in thermal power plants, combined cycle power plants and petrochemical facilities, transmitting shaft vibration, axial displacement and overspeed data to turbine control systems like GE Mark VI. It is also applied to power generation equipment on offshore platforms and heavy industrial fans, mills and pumps to build redundant communication networks. In addition, it realizes data interconnection between SHINKAWA VM-7 series monitoring racks and plant SCADA, remote vibration diagnosis platforms, ABB and Alstom DCS to provide reliable monitoring signals for equipment operation supervision and safety trip interlock logic.
