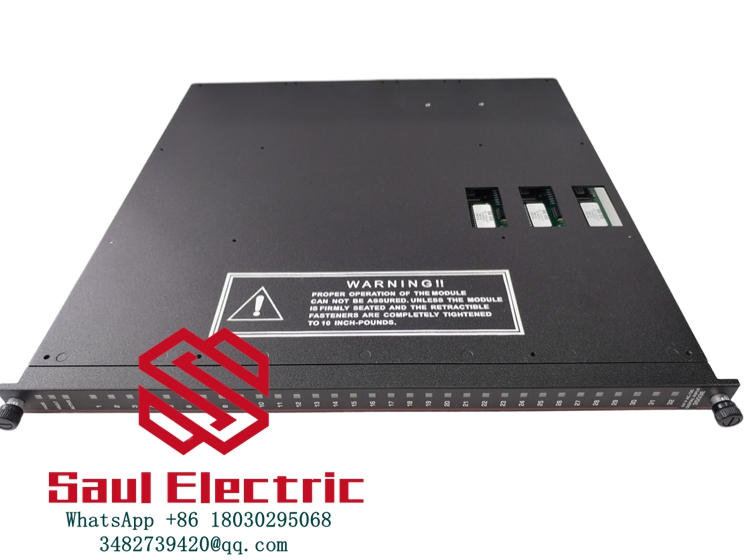

Triconex AI3721 (3721) Analog Input Module
The Triconex AI3721 (Model 3721) is a high-density, Triple Modular Redundant (TMR) analog input module purpose-built for Tricon safety instrumented systems (SIS) by Invensys Triconex (now part of Schneider Electric). It serves as the critical interface between field sensors and Tricon controllers, delivering precise, reliable acquisition of process signals in safety-critical and high-reliability industrial environments.
At its core, the 3721 employs an industry-proven TMR architecture with three independent signal channels and 2oo3 (two-out-of-three) voting logic. This ensures fault tolerance: even if one channel fails, the remaining two channels maintain accurate signal acquisition, eliminating single-point failure risks. The module supports 0–5 VDC and –5 to +5 VDC input ranges, configurable via TriStation 1131 software—no hardware changes required—making it compatible with diverse sensors like pressure transmitters, temperature sensors, flow meters, and strain gauges.
Integrated with comprehensive diagnostics, it continuously monitors signal integrity, wiring status, and module health, enabling proactive maintenance. It is designed for hot swapping, allowing on-site replacement without system shutdown, maximizing uptime in continuous operations.
Primary Applications
The AI3721 is deployed exclusively in environments where signal accuracy and system integrity are paramount to prevent hazards, downtime, or production loss. Key use cases include:
- Oil & Gas: Upstream/downstream pressure monitoring, pipeline flow measurement, wellhead temperature tracking, and ESD (Emergency Shutdown) system feedback.
- Petrochemical & Refining: Reactor level monitoring, distillation column control, burner management system (BMS) feedback, and pump station pressure sensing.
- Power Generation: Boiler drum level monitoring, turbine vibration analysis, generator temperature tracking, and auxiliary system process control.
- Chemical & Pharmaceutical: Reactor pressure/temperature monitoring, agitation speed sensing, and high-purity pipeline flow measurement.
- Metals & Mining: Mill roll force monitoring, conveyor belt speed tracking, and smelter temperature control.
- Water & Wastewater: Tank level monitoring, pipeline flow metering, and pump discharge pressure sensing.
Core functions include:
- Acquiring low-level analog signals (0–5 VDC / –5 to +5 VDC) from field sensors with high precision.
- Converting analog signals to digital data for Tricon controller processing via its high-resolution ADC.
- Providing fault-tolerant signal acquisition to ensure safety interlock reliability.
- Supporting real-time process monitoring and control through 10 ms update rates.
Key Technical Specifications
| Category | Specification |
|---|---|
| Model | Triconex AI3721 (3721) |
| Type | TMR Analog Input Module (Differential, DC-coupled) |
| Channels | 32 input points |
| Input Ranges | 0–5 VDC; –5 to +5 VDC (configurable via TriStation 1131) |
| Resolution | 12-bit or 14-bit (programmable ADC) |
| Accuracy | < 0.15% of Full Scale Range (FSR) at 0–60°C |
| Input Update Rate | 10 ms (fast sampling for dynamic processes) |
| Input Resistance | 10 MΩ (DC, minimum); 140 kΩ (DC, typical at power-off) |
| Over-Range Tolerance | +6% (–5.3 to +5.3 VDC); continuous overrange protection: 150 VDC / 115 VAC |
| Common Mode Rejection | –85 dB (DC–100 Hz, for high EMI immunity) |
| Isolation | 800 VDC minimum (field-to-system) |
| System Compatibility | Tricon v9, v10, and v10.2+ series |
| Power Consumption | < 15 watts (backplane-powered) |
| Operating Temperature | –20°C to +60°C (industrial ruggedness) |
| Form Factor | Rack-mounted for Tricon chassis |
| Hot-Swappable | Yes (online replacement without shutdown) |
| Certifications | IEC 61508 SIL 3 capable (safety-critical compliance) |
| Weight | Approx. 1.36 kg |
| Status Indicators | PASS, FAULT, ACTIVE, FIELD (comprehensive diagnostics) |
Key Features
- TMR Fault Tolerance: Three independent channels with 2oo3 voting ensure zero single-point failure risk.
- Software-Configurable Ranges: 0–5 VDC / –5 to +5 VDC via TriStation 1131, simplifying setup for diverse sensors.
- High Precision: 12/14-bit resolution and <0.15% FSR accuracy enable measurement of small signal changes (e.g., 0.01 V pressure transmitter outputs).
- Robust Diagnostics: Real-time monitoring of signals, wiring, and module health for proactive maintenance.
- Industrial Ruggedness: Designed to operate in harsh environments with high EMI, temperature extremes, and humidity.
- Hot-Swappable: Minimize downtime by replacing faulty modules while the system runs.
