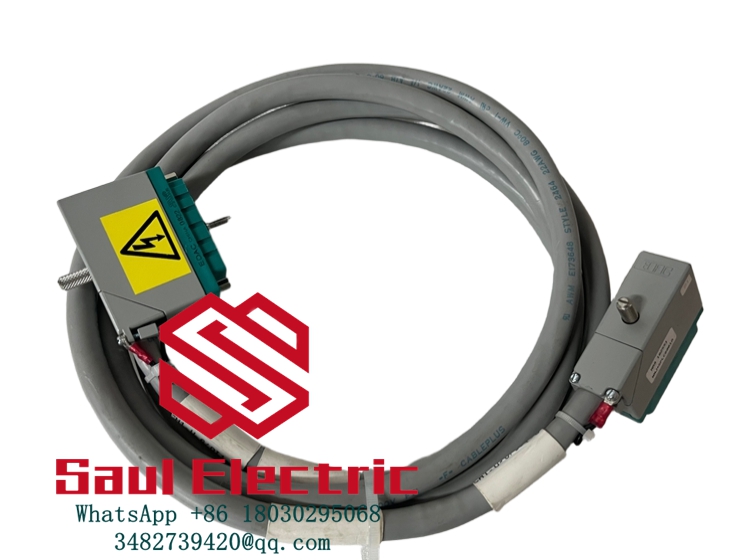

Triconex 4000093-330 Digital Input DI Prefabricated Shielded Cable
Triconex 4000093-330 is a prefabricated shielded cable assembly specifically designed for the digital input DI of the ricon TMR triple redundant SIS safety instrumented system. The Triconex 4000093 series is unified as a DI digital input terminal cable, which is only compatible with digital input cards and cannot be used for AO output.
Core functional features
- TMR triple redundant matching wiring
The cable core layout is compatible with the triple redundant architecture, and single line interference will not cause safety interlock failure, meeting the ESD and BMS unit safety shutdown circuit specifications. - No on-site wiring, zero risk of wiring errors
The two end joints are prefabricated in the factory and fully inspected for conductivity, eliminating the need for manual crimping and wiring processes, greatly shortening the SIS cabinet debugging cycle, and avoiding safety failures caused by virtual connections and wrong wiring. - Double layer full section shielding grounding
The entire cable is fully shielded, and there is no jumping or false triggering of the switch signal in the environment of the frequency converter, high-power motor, and strong electromagnetic factory. - Full channel circuit diagnostic compatibility
The cable shielding layer and core wire layout match the Tricon DI card for self diagnosis of broken/short circuits, and the system can accurately report line faults.
Technical Specification Table
| Parameter Item | Technical Specification |
|---|---|
| Full Model Number | 4000093-330 (Compatible upgrade version: 4000093-330N) |
| Cable Category | Digital Input dedicated signal cable assembly (4000093 series = DI only; 4000103 series = DO output cable, non-interchangeable) |
| Total Length | 30 ft / 9 meters |
| Conductor Standard | 24 AWG stranded oxygen-free copper |
| Per-channel Rated Current | 0.3A, total cable max carrying current 12A |
| Shield Structure | Double shielding: aluminum foil inner layer + tinned copper braided outer shield with drain wire |
| Jacket Material | Flame-retardant, oil-resistant industrial TPE/PVC |
| Connector | Original factory customized locking multi-pin male/female integrated pre-terminated plug |
| Signal Type Supported | 24VDC discrete digital input dry contact signal |
| Minimum Bend Radius | ≥14.22 cm |
| Operating Temperature Range | Cabinet: -20℃ ~ +70℃; Storage: -40℃ ~ +85℃ |
| Humidity Condition | 5%~95% non-condensing |
| Safety Certification | IEC61508 SIL3, UL, CE, RoHS |
| Cable Impedance | 100Ω ±10% matched for TMR signal transmission |
| Weight | Approx. 0.48 kg |
| Compatible DI Modules | 3501, 3503, 3504, 3511, 3604E digital input cards |
| Matching Terminal Boards | 3000, 3001, 3002, 3003 DI external termination panels |
