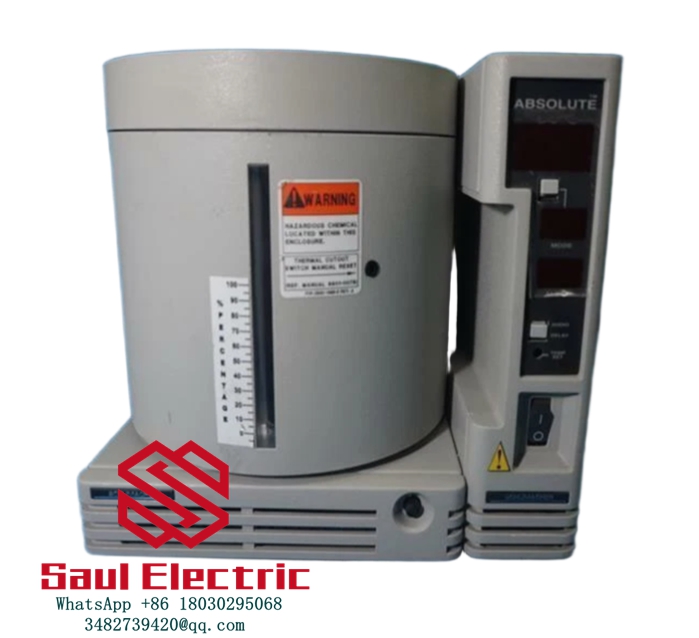

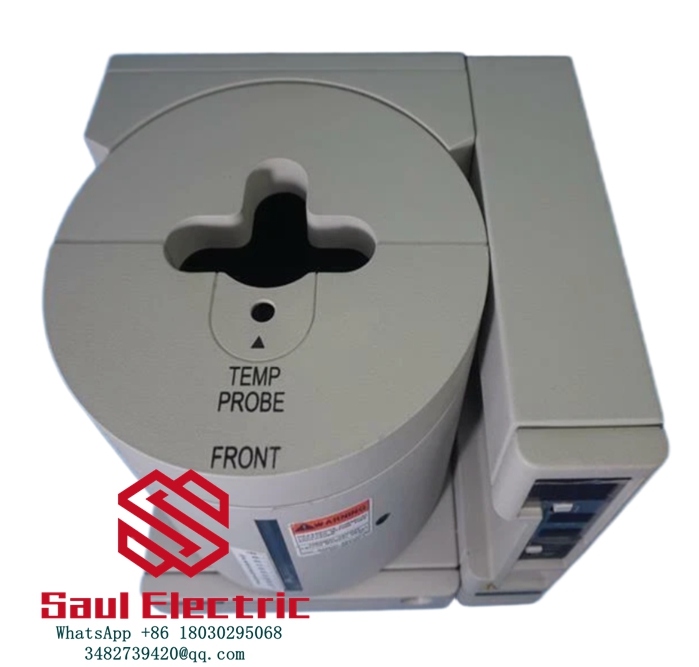

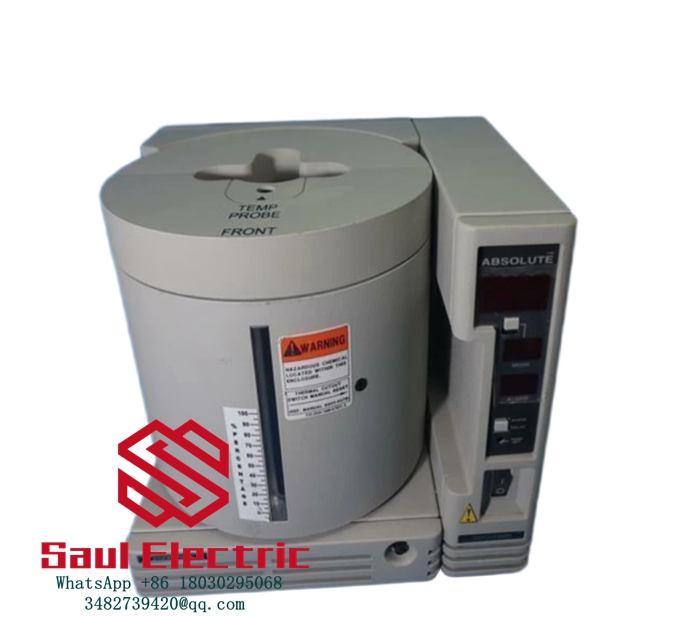

The SCHUMACHER ATCS-15 is a high-precision absolute temperature control system designed for critical industrial and laboratory applications that require stable and accurate temperature regulation. Developed by SCHUMACHER, the ATCS-15 integrates advanced microprocessor-based PID closed-loop control technology, ensuring reliable performance and consistent temperature stability. With a compact modular design and user-friendly operation, the SCHUMACHER ATCS-15 is widely recognized in fields such as semiconductor manufacturing and precision chemical processing, providing a cost-effective and efficient temperature control solution for small-volume liquid temperature management.
Application Fields
-
Semiconductor Manufacturing: Used for temperature control of liquid source chemicals in CVD (Chemical Vapor Deposition) and diffusion processes, ensuring the stability of thin film deposition quality.
-
Microelectronics/Wafer Processing: Suitable for constant-temperature transportation of high-purity reagents and precursors (such as TEOS, TMB) in wafer fabrication processes.
-
Vacuum/Film Deposition: Applied in vapor generation and transportation systems that require precise temperature stability to maintain process consistency.
-
Laboratory & Precision Industry: Ideal for small-volume (≤1.5L) liquid precision temperature control scenarios in laboratories, pharmaceutical, and chemical industries, where high temperature accuracy is required.
Specification Parameters (Table)
|
Parameter Item
|
Specification Details
|
|---|---|
|
Product Model
|
SCHUMACHER ATCS-15
|
|
Control Type
|
Absolute Temperature Control System (Microprocessor PID Closed-Loop)
|
|
Temperature Control Range
|
+10°C to +60°C (Standard); 10°C–22°C (Partial Versions)
|
|
Temperature Accuracy (Set Point)
|
±0.1°C (Standard Accuracy of ATCS-15)
|
|
Long-Term Temperature Stability
|
±0.2°C (Steady-State Fluctuation of ATCS-15)
|
|
Container Compatibility
|
1500cc Quartz Container / 1.2L Stainless Steel Container (Standard Configuration of SCHUMACHER ATCS-15)
|
|
Liquid Level Monitoring
|
Quartz: 100%/50%/25%/15% Discrete Sensing; Stainless Steel: 100%/75%/15%
|
|
Safety Alarm
|
Temperature Deviation ±5°C Alarm; 15% Low Liquid Level Alarm; Over-Temperature Cutoff (50°C)
|
|
Communication Interface
|
DDC Remote Control/Monitoring Interface (Standard Configuration ofATCS-15)
|
|
Power Supply
|
100–240 VAC, 50/60 Hz (Global Universal)
|
|
Dimensions (L×W×H)
|
305 × 230 × 180 mm (12 × 9 × 7 in)
|
|
Weight
|
5.4 kg (12 lb)
|
|
Structural Features
|
Modular Design; Front Removable Source Cup; Stainless Steel Version Integrates Liquid Level Sensing and Cover Heater
|
Product Function
As a high-precision temperature control device, the SCHUMACHER ATCS-15 mainly undertakes the following core functions:
-
Provides ±0.1°C level precise temperature control for liquid source chemicals in CVD/diffusion processes, effectively ensuring the quality and process consistency of thin film deposition.
-
Integrates microprocessor closed-loop control technology, which can suppress environmental interference and maintain long-term temperature stability with a fluctuation range of ≤±0.2°C.
-
Adapts to 1500mL quartz containers or 1.2L stainless steel containers, and is equipped with liquid level monitoring and safety interlock functions to realize unattended operation.
-
Supports DDC remote monitoring and control, which can be connected to the factory automation network to meet the standardized integration needs of semiconductor production lines.
