HIMA HIQuad F8621A coprocessor communication board
F8621A 984862160 is a communication board for safety instrumented system co processors produced by HIMA in Germany. Compatible with HIMA HIQuad H41q/H51q safety system, standard 19 inch rack card, plugged into the central rack backplane for operation.
main function
- Share the communication and computation load of the main CPU, specifically handle serial communication tasks, ensure that the secure CPU focuses on executing SIS security logic, is not occupied by external communication resources, and guarantees real-time security logic.
- Provide two isolated RS485 interfaces to enable data exchange between HIMA safety system and DCS, PLC, upper SCADA, HMI human-machine interface, supporting Modbus RTU master/slave mode.
- Complete the external forwarding of safety system alarms, interlock status, and process measurement point data, while receiving instructions issued by the upper level.
- Support redundant system configuration, dual port RAM for high-speed data exchange with the main CPU; The board comes with a complete self diagnosis, and communication faults can be reported to the system alarm.
- Can only be used on the old H41q/H51q platforms, cannot be directly used on the new generation HIQuad-X system , software and hardware are incompatible with each other.
HIMA HIQuad F8621A coprocessor communication board
| Item | Specification |
|---|---|
| Model | F8621A |
| Order No. | 984862160 |
| System Compatibility | HIMA H41q / H51q (HIQuad) |
| Processor | HD64180, 10 MHz |
| On‑board Memory | 384 kB (SRAM + EPROM) |
| Communication Port | 2 × RS485 half‑duplex, galvanic isolated |
| Baud Rate | 300‑57600 bps software configurable |
| Supported Protocol | Modbus‑RTU Master / Slave, H800 |
| Backplane Power | 5 V DC, 360 mA |
| Safety Level | SIL 3 (within H41q/H51q system architecture) |
| Diagnostic | On‑board TX/RX LED indicators, self‑diagnosis |
| Operating Temperature | 0 ℃ ~ +60 ℃ |
| Protection Class | IP20 (rack‑mount module) |
| Net Weight | 0.16 kg |
| Shipping Weight | 0.50 kg |
| Mounting | 19‑inch sub‑rack plug‑in module |
| Country of Origin | Germany |
Product Recommendation
HIMA F3236 984323602 16-fold input module丨safety related

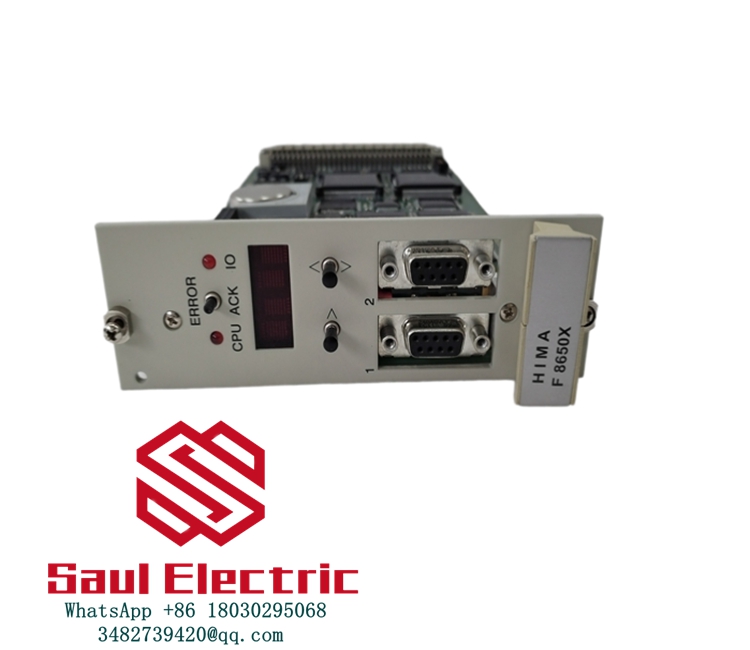

HIMa CPU controller Unit F8650X F8651X 984865165 F8652X processor module
