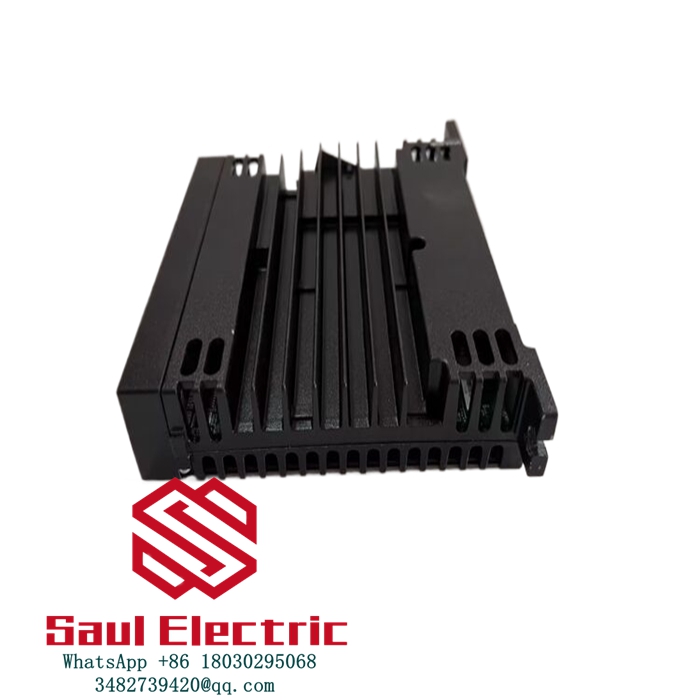

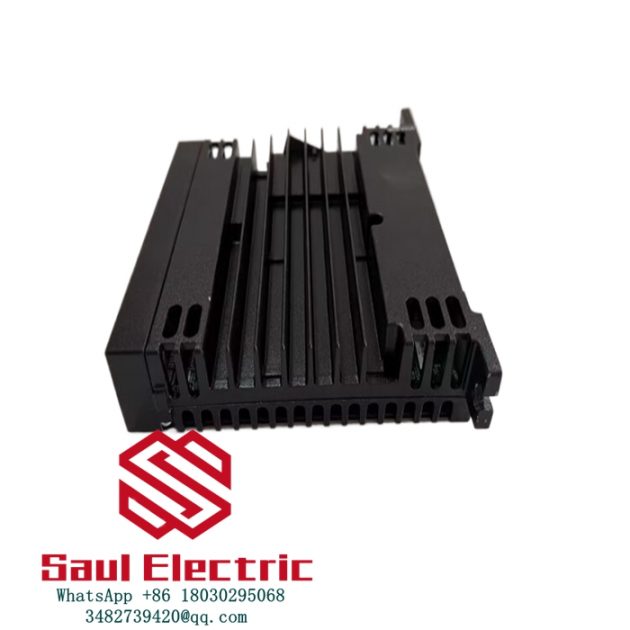

The GE IS410BAPBH1A is a high-performance UCSD (Unit Control System Device) controller designed for critical turbine control applications in power generation systems. As part of GE’s Mark VIe series, this controller serves as the central processing unit for gas and steam turbine control, providing comprehensive monitoring and regulation capabilities. The IS410BAPBH1A combines powerful processing capabilities with rugged industrial design, making it suitable for demanding power plant environments.
Engineered for reliability, the GE IS410BAPBH1A features triple modular redundancy (TMR) architecture and supports high-speed communication protocols. Its modular design allows flexible configuration while maintaining the high durability standards expected from GE’s industrial control components.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | IS410BAPBH1A |
| Manufacturer | General Electric |
| Product Type | UCSD Controller |
| Processor Type | Dual-core 64-bit industrial grade |
| Clock Speed | 1.8 GHz |
| Memory | 2GB DDR4, 16GB Flash |
| Communication Protocols | Ethernet/IP, PROFIBUS DP, MODBUS TCP |
| I/O Capacity | Supports up to 512 I/O points |
| Power Supply | 24V DC ±5% |
| Power Consumption | 35W (max) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 200mm × 150mm × 50mm |
| Weight | 2.1kg |
| Protection Rating | IP40 |
Main Features and Advantages:
The GE IS410BAPBH1A delivers exceptional control performance with its dual-core processor architecture, capable of handling complex control algorithms with millisecond response times. Its TMR design ensures fault-tolerant operation, critical for uninterrupted power generation.
Advanced diagnostics: The controller includes comprehensive self-monitoring and predictive maintenance capabilities, reducing downtime and maintenance costs. The IS410BAPBH1A also features advanced cybersecurity protections, meeting industry standards for critical infrastructure protection.
Application Areas:
- Power Generation: Gas and steam turbine control6
- Combined Cycle Plants: Integrated turbine-generator control
- District Heating: Cogeneration systems
- Industrial Power: On-site generation facilities
- Oil & Gas: Compressor station control
Related Products:
- IS210JPDHG1A, IS220PDIAH1B, IS220PDOAH1B,IS220PPDAH1B, IS220YAICS1B, IS220YDIAS1B,IS220YDOAS1B, IS221PDIAH1B, IS221PDOAH1B,
IS221PPDAH1B, IS221YAICS1B, IS221YDOAS1B,
IS400JPDHG1A, IS410JPDHG1A, IS411JPDHG1A,
IS420ESWAH1A, IS420ESWAH2A, IS420ESWAH3A,
IS420ESWAH4A, IS420ESWAH5A, IS420ESWBH1A,
IS420ESWBH2A, IS420ESWBH3A, IS420ESWBH4A,
IS420ESWBH5A, IS420PVIBH1B, IS420YVIBS1B,
IS421ESWAH1A, IS421ESWAH2A, IS421ESWAH3A,
IS421ESWBH1A, IS421ESWBH2A, IS421ESWBH3A
- IS210JPDHG1A, IS400JPDHG1A, IS410JPDHG1A,IS411JPDHG1A, ISx2yPAICH1B, ISx2yPDIAH1B,ISx2yPDOAH1B, ISx2yPPDAH1B, IS42yPVIBH1B,
ISx2yYAICS1B, ISx2yYDIAS1B, ISx2yYDOAS1B, IS42yYVIBS1B,
IS42yESWAH1A, IS42yESWAH2A, IS42yESWAH3A,
IS42yESWAH4A, IS42yESWAH5A, IS42yESWBH1A,
IS42yESWBH2A, IS42yESWBH3A, IS42yESWBH4A,
IS42yESWBH5A, IS420UCSCH1, IS420UCSCH2, IS420UCSCS2
- IS410BAPBH1B: Enhanced version with additional memory
- IS420BAPBH1A: Next-generation UCSD controller
- IS200ERBHG1A: Redundancy module
- IC693ALG392: Analog input module
- DS200DCFBG1B: Communication interface board
Installation and Maintenance:
Installation preparation: Verify proper ESD precautions and environmental conditions before installing the GE IS410BAPBH1A. Ensure adequate clearance for ventilation and proper cable management for optimal performance.
Maintenance recommendations: Perform regular firmware updates and periodic visual inspections. The IS410BAPBH1A requires minimal maintenance but benefits from annual preventive maintenance checks to ensure long-term reliability.
Product Assurance:
GE provides a standard 12-month warranty for the IS410BAPBH1A. Each unit undergoes extensive testing to ensure reliable operation in power generation applications.
