GE IC693CPU374-GU Programmable Logic Controller (PLC) module

GE IC693CPU374-GU Programmable Logic Controller (PLC) module

IC693CPU374 is a programmable logic controller (PLC) module in the 90-30 series of AgFANuc. The module is a processor module that hosts user programs, executes logic, and manages the data exchange with the processor via an embedded communication port.

IC693CPU374 can also be called controller. The controller has a built-in microprocessor and a 586 processor with a processing speed of 133 MHz. Its typical scan rate is 0.15 ms per 1K Boolean contact logic. The controller module has a single – slot width mounted on a 90-30 PLC rack.

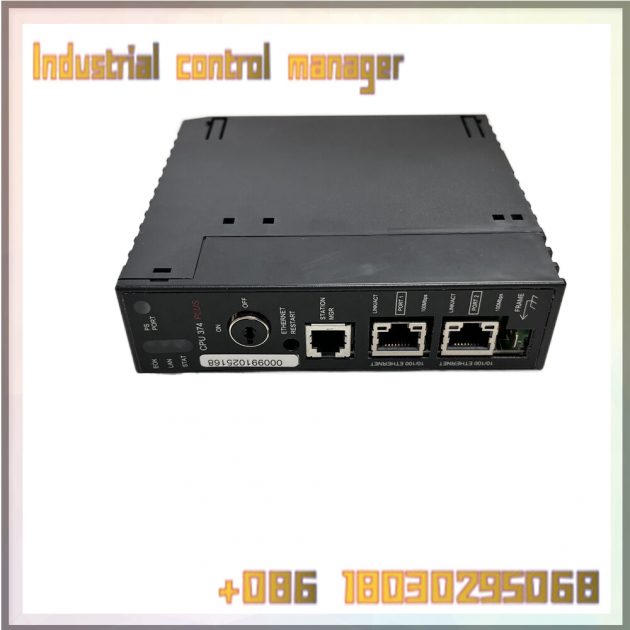

The user memory of IC693CPU374 is 240KB. It has two (2) Ethernet communication ports, supports 10/100 Mbps transmission speed, and has automatic sensing function. These ports enable the controller to connect to Ethernet for communication with programming workstations such as desktop or laptop computers, with human machine interface (HMI) and supervisory Control and Data acquisition (SCADA) systems, and with other processors for messaging functions. i The controller can also communicate through the RS485 communication interface, which can be found on the power supply, whether it is a standard power supply or a large-capacity power supply.
