Fluke 1773/1775/1777 3 Phase Power Quality Analyzer

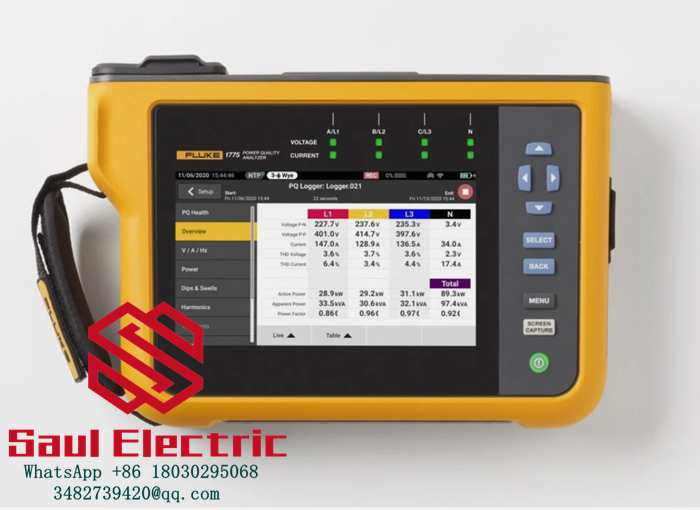

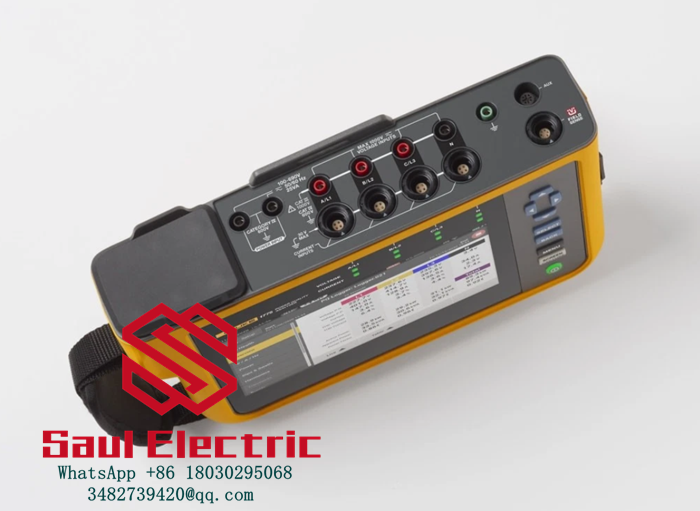

Fluke three-phase power quality analyzers (represented by the 1770 Series) are advanced, portable test instruments designed to measure, record, and analyze power quality parameters in three-phase electrical distribution systems. Compliant with IEC 61000-4-30 Class A standards, they enable accurate troubleshooting, compliance verification, and energy loss assessment for low- and medium-voltage networks. The 1770 Series (e.g., FLUKE-1773, 1775, 1777) features automatic measurements, a user-friendly touchscreen interface, and rugged construction for reliable field use.
Key Applications
- Power Quality Troubleshooting: Identify voltage dips/swells, harmonics, transients, unbalance, and frequency deviations causing equipment malfunction.
- Energy Management & Loss Calculation: Measure power consumption, calculate energy losses, and optimize efficiency to reduce operational costs.
- Compliance Testing: Verify compliance with international standards (e.g., EN 50160, IEC 61000-4-30) for utility and industrial power systems.
- Preventive Maintenance: Monitor critical equipment (motors, drives, transformers) to predict failures and schedule maintenance.
- Load Studies & Commissioning: Assess system capacity before adding loads and benchmark power quality during equipment installation.
Operating Environment
| Parameter | Specification |
|---|---|
| Operating Temperature | -10 °C to +50 °C (14 °F to 122 °F) |
| Storage Temperature | -20 °C to +60 °C (-4 °F to 140 °F) |
| Relative Humidity | 10 % to 90 % (non-condensing) |
| Altitude | Up to 2,000 m (6,562 ft) |
| Enclosure Rating | IP53 (dust-protected and splash-resistant) |
| Safety Rating | CAT III 1000 V / CAT IV 600 V |
Specifications (Fluke 1770 Series Example)
| Parameter | FLUKE-1773 | FLUKE-1775 | FLUKE-1777 |
|---|---|---|---|
| Voltage Input | 3-phase + neutral, up to 1000 V AC RMS | 3-phase + neutral, up to 1000 V AC RMS | 3-phase + neutral, up to 1000 V AC RMS |
| Current Input | 4 channels (3P+N), 1 A–1500 A (with i17XX-FLEX1500) | 4 channels (3P+N), 1 A–1500 A (with i17XX-FLEX1500) | 4 channels (3P+N), 1 A–1500 A (with i17XX-FLEX1500) |
| Sampling Rate | 1 MS/s | 1 MS/s | 1 MS/s (20 MS/s for transients) |
| Bandwidth | DC to 1 MHz | DC to 1 MHz | DC to 1 MHz |
| Transient Capture | Up to 6 kV | Up to 6 kV | Up to 8 kV |
| Harmonics | Up to 50th | Up to 50th | Up to 50th (9 kHz bandwidth) |
| Display | 7-inch color touchscreen | 7-inch color touchscreen | 8-inch color touchscreen |
| Connectivity | WiFi, Ethernet, BLE | WiFi, Ethernet, BLE | Dual WiFi, Ethernet, BLE |
| Memory | 8 GB internal + SD card | 8 GB internal + SD card | 8 GB internal + SD card |
| Battery Life | Up to 8 hours | Up to 8 hours | Up to 8 hours |
Typical Industries
- Power Utilities: Monitor grid quality, verify service compliance, and analyze distribution network issues.
- Manufacturing: Protect sensitive equipment (PLCs, VFDs, robotics) from power quality disturbances.
- Oil & Gas: Ensure reliable operation of motors, pumps, and control systems in harsh environments.
- Data Centers: Maintain stable power for servers and UPS systems to prevent downtime.
- Commercial Buildings: Optimize energy usage and comply with efficiency regulations.
- Renewable Energy: Analyze grid integration issues for solar/wind installations.
Related Series Products
-
Fluke 1736/1738 Three-Phase Power Quality Loggers
- Compact, cost-effective models for basic power quality logging and energy analysis.
- Fluke Connect® compatible for remote data access and sharing.
-
Fluke 1760 Basic Three-Phase Power Quality Recorder
- Class-A compliant for advanced power quality analysis in medium/low-voltage networks.
- Offers customizable thresholds and detailed event correlation.
-
Fluke 438-II Three-Phase Power Quality and Motor Analyzer
- Combines power quality analysis with motor performance testing (speed, torque, efficiency).
- Ideal for predictive maintenance of electric motors.
