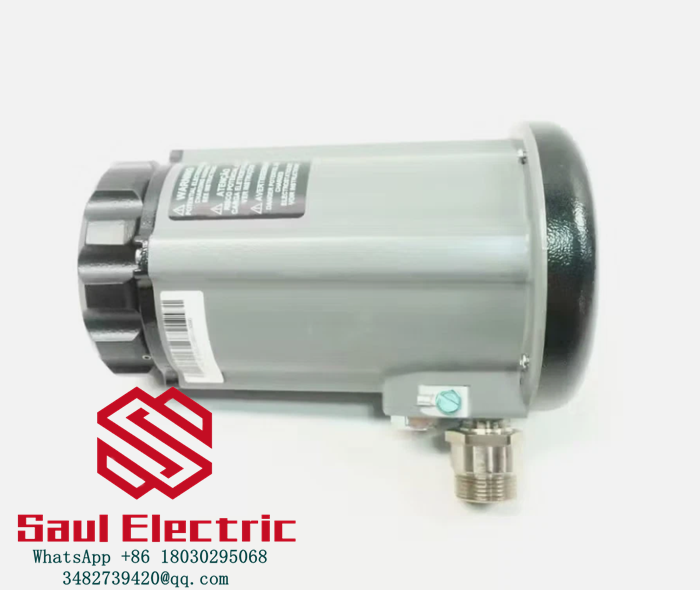

FIREYE 85UVF1A-1QDK3 Ultraviolet (UV) flame detector
The FIREYE 85UVF1A-1QDK3 is a microprocessor-based ultraviolet (UV) flame scanner from the Phoenix Series II, designed for industrial burner management systems. It integrates a high-sensitivity UV sensor (295–340 nm), internal flame relay, and self-diagnostics into a rugged IP66 housing, delivering reliable flame detection without external amplifiers. The unit features an 8-pin quick-disconnect (QD) connector, a K3 filter, and selectable Flame Failure Response Time (FFRT), making it ideal for hazardous industrial environments.
Key Functions
- UV Flame Detection: Senses 295–340 nm UV emissions from fossil fuel flames (natural gas, propane, diesel, etc.), ignoring false sources like hot refractory or sunlight.
- Internal Flame Relay: Automatically sets ON/OFF thresholds during setup, eliminating the need for remote flame amplifiers or switches.
- Self-Diagnostics & Self-Checking: Continuous electronic self-verification ensures scanner integrity; auto-selects sensor gain for optimal performance.
- Analog Output: Provides 4–20 mA proportional signal for flame strength monitoring and integration with control systems.
- Hazardous Area Compliance: FM, UL/c, CE approved for Class I Division 2 hazardous areas (with 59-546-xx cable).
Specifications
| Parameter | Description |
|---|---|
| Product Type | Phoenix Series II UV Flame Scanner |
| Model | 85UVF1A-1QDK3 |
| Sensor Type | Ultraviolet (UV), 295–340 nm |
| Filter | K3 filter (reduces infrared interference) |
| FFRT | Selectable (1/2/3/4 seconds) |
| Power Supply | 24 V DC ±10%, 200 mA |
| Outputs | 4–20 mA (flame strength); SPST flame relay (N.O.); SPST fault relay (N.C.) |
| Electrical Connection | 8-pin quick-disconnect (QD) |
| Housing Material | Cast aluminum, gray polyester powder coat |
| Ingress Protection | IP66 (NEMA 4X) |
| Operating Temperature | -40°C to 74°C (-40°F to 165°F) |
| Mounting | 1″ NPT female (60-2919/60-2692 flange) |
| Cooling Air | 4 SCFM (113 l/min) at 3/8″ NPT |
| Weight | 4.5 lbs (2.04 kg) |
| Certifications | FM, UL/c, CE |
Applications
The 85UVF1A-1QDK3 is used for safety-critical flame monitoring in:
- Industrial Gas Burners & Duct Burners
- Refineries & Petrochemical Plants
- Power Generation (Boilers, HRSGs)
- Incinerators (Waste Gas, Hazardous Waste)
- Manufacturing (Food & Beverage, Pharmaceuticals)
- Oil & Gas (Offshore/Onshore Facilities)
Recommended Similar Products (Phoenix Series II)
- 85UVF1A-2QD: Fiber-optic UV flame scanner with quick disconnect, ideal for high-temperature or hard-to-reach burner applications.
- 85IRF1A-2QD: Infrared (IR) flame scanner for detecting hydrocarbon flames in smoky or dusty environments.
- 85UVF1A-1QD: Standard UV flame scanner with quick disconnect (no K3 filter), suitable for clean-burning gas applications.
- 85UVF4A-2QDK3WR: Fiber-optic UV scanner with K3 filter and direct-coupled amplifier compatibility, optimized for high-noise industrial settings.
