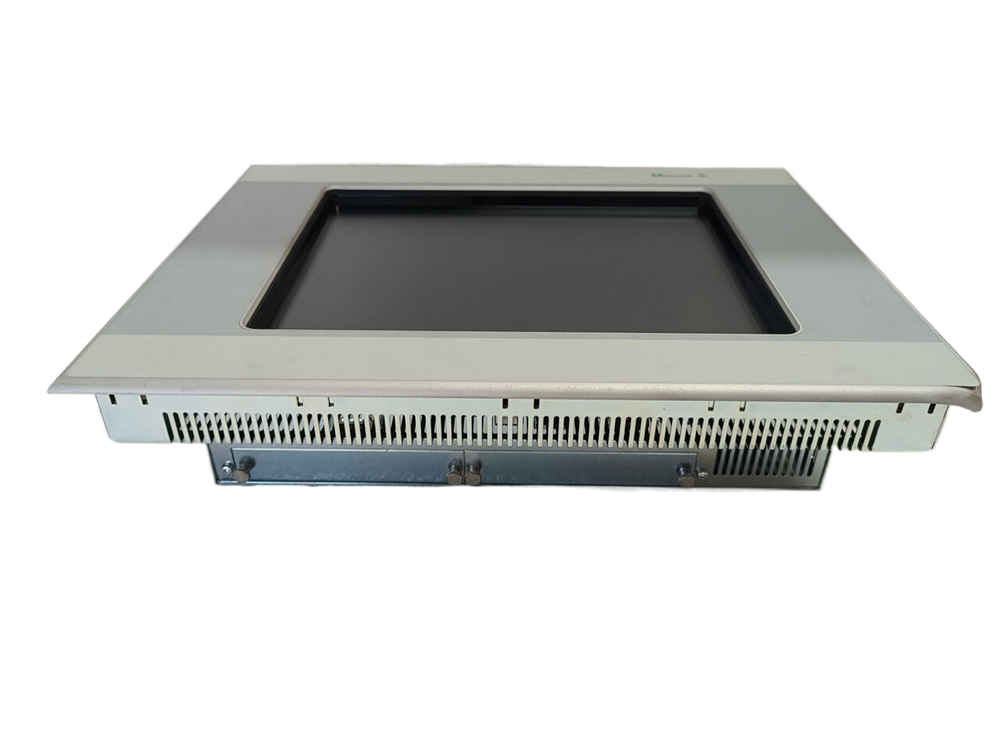

EATON XV-303-70-B00-A00-1C human-machine control panel
XV-303-70-B00-A00-1C is a 7-inch front mounted integrated HMI PLC human-machine panel of Eaton XV300 series, equipped with ARM Cortex-A9 processor, projecting capacitive multi touch screen, integrated CODESYS PLC operation, without GALILEO visual authorization;
main function
- Integrated HMI-PLC 2-in-1, front panel opening installation, no need for additional configuration of independent PLC controller, saving control cabinet space.
- 7-inch projection capacitive multi-point touch screen, supporting gesture operation, anti glare tempered glass panel, smooth industrial field operation experience.
- Fanless passive cooling design, no rotating parts, reducing the risk of dust induced failures, suitable for long-term continuous operation.
- Rich interfaces: Ethernet RS232、RS485、CANopen、USB， Easy to connect with frequency converters, sensors, and third-party automation equipment.
- Equipped with CODESYS V3 operating environment, standard IEC61131-3 programming language, convenient logic programming; This model does not include GALILEO configuration authorization.
- SD card supports engineering backup, historical alarm, and trend data storage, making it convenient for on-site program upgrades and data exports.
- Real time clock power-off maintenance ensures accurate alarm and event timestamps; Support switching between landscape and portrait display.
- The front panel is IP65 protected, which can resist dust and a small amount of splashing water on the front side of the cabinet; Back IP20, only for use inside the cabinet.
EATON XV-303-70-B00-A00-1C human-machine control panel
| Parameter | Value |
|---|---|
| Model | XV‑303‑70‑B00‑A00‑1C |
| Catalog No | 179649 |
| Product family | XV300 series HMI‑PLC panel |
| Device type | Front‑mount HMI‑PLC control panel |
| CPU | ARM Cortex‑A9 800 MHz |
| Display size | 7‑inch widescreen TFT |
| Resolution | 1024 × 600 pixels |
| Touch type | PCT projected capacitive multi‑touch |
| RAM | 512 MB DDR |
| Flash memory | 1 GB SLC NAND |
| Retain memory | 128 kB NVRAM |
| External storage | SD card slot(SDSC / SDHC) |
| Communication interface | 1×Ethernet 10/100Mbps,1×RS232,1×RS485,1×CAN,1×USB Host,1×USB Device |
| Supported protocol | Modbus TCP,Modbus RTU,CANopen |
| Power supply | 24 VDC, 0.8A typical |
| Cooling method | Fan‑less passive cooling |
| Front protection degree | IP65 |
| Rear protection degree | IP20 |
| Dimension(W×H×D) | 205 ×124 ×53 mm |
| Weight | 1.15 kg |
| Transport gross weight | 1.50 kg |
| Operating temperature range | 0 ~ +50 ℃ |
| Storage temperature range | -20 ~ +70 ℃ |
| Relative humidity | 5‑95% non‑condensing |
| Software runtime | CODESYS V3 runtime(no GALILEO license) |
| Certification | CE,cULus,DNV‑GL |
| Origin | Europe |
