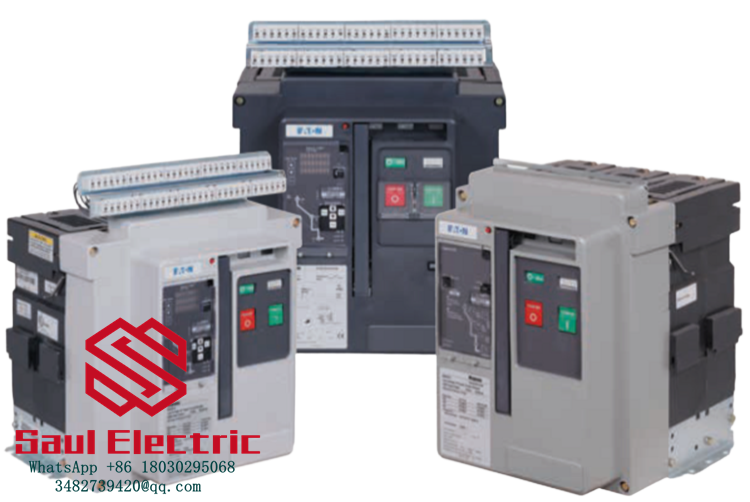

Eaton MDS625 Low Voltage AC Power Circuit Breaker
The Eaton MDS625 is a 3-pole, 2500A Magnum DS series low-voltage insulated case circuit breaker manufactured by Eaton (Cutler-Hammer). Designed per ANSI/NEMA/UL standards, it provides 100% continuous current rating and high short-circuit interrupting capability for heavy-duty power distribution.
Core Uses
- Main incoming feeder protection in low-voltage switchboards (e.g., Pow-R-Line)
- Motor, transformer, and capacitor bank protection
- Selective coordination in industrial and commercial distribution systems
- Arc flash mitigation and system reliability enhancement
Technical Specifications (Table)
| Parameter | Specification |
|---|---|
| Model | MDS625 |
| Series | Magnum DS (MDS) |
| Poles | 3P, 3-phase |
| Rated Continuous Current (In) | 2500 A |
| Rated Voltage (Ue) | 600 V AC (max) |
| Short-Circuit Interrupting Rating | 65 kA @ 600 V AC |
| Trip Unit | Digitrip 520 / 1150 (LSI/LSIG) |
| Trip Functions | Long-time (L), Short-time (S), Instantaneous (I), Ground Fault (G, optional) |
| Mounting | Drawout / Fixed (standard frame) |
| Connection | Bolt-on / Lug terminals |
| Frame Size | Standard |
| Standards | UL 891, ANSI C37.13, NEMA SG3/SG5 |
| Operating Temperature | 40°C (ambient) |
Typical Industries
- Oil & Gas: Refineries, offshore platforms
- Power Generation: Utility plants, co-generation facilities
- Data Centers: Critical power distribution
- Manufacturing: Automotive, metals, pulp & paper
- Commercial High-Rise: Large HVAC, lighting, and elevator systems
- Water/Wastewater: Pumping stations, treatment plants
Similar Series Products
- Eaton MDS850
- 5000A, 85kA @ 600V; double-wide frame; for high-current main feeders
- Eaton MDSH25
- 2500A, 130kA @ 600V; high interrupting rating; arc flash reduction applications
- Eaton MDS632
- 3200A, 65kA @ 600V; standard frame; for 3000A-class distribution systems
