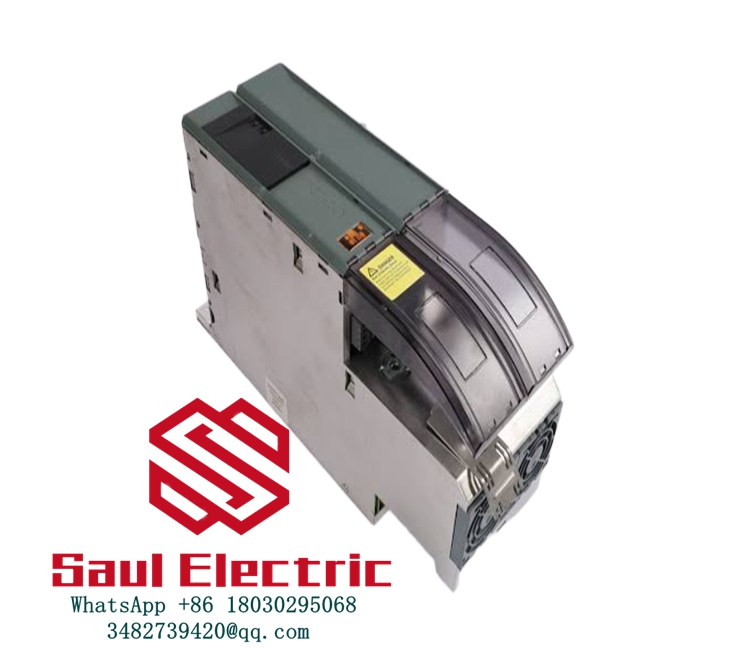

B&R ACOPOSmulti Series 8BVP0440HC00.000-1 Power Module
8BVP0440HC00.000-1 is an ACOPOSmulti series active power module from B&R.
8BVP0440HC00.000-1 Function: Rectify three-phase industrial AC power to generate DC bus voltage, providing shared DC bus power for multiple inverter servo modules on the rack; Built in PFC power factor correction, supports motor regeneration energy feedback to the grid, and suppresses braking energy consumption; Implement bus voltage monitoring and overvoltage/undervoltage protection; Cooperate with ACOPOSmulti inverter module to form a complete multi axis servo drive system, providing stable power input for the entire motion control system.
Parameter Specifications
| Parameter | Value |
|---|---|
| Model | 8BVP0440HC00.000‑1 |
| Product family | ACOPOSmulti drive system |
| Module type | Active power supply module, cold‑plate cooling |
| Mains input | 3×220‑480 VAC ±10%,50/60Hz |
| Nominal DC‑bus voltage | 650‑707 VDC |
| Nominal input current | 44 A |
| Max.apparent power | 31.1 kVA |
| Power factor control | PFC integrated |
| Regenerative capability | Regeneration back to mains |
| EMC filter | Built‑in filter acc. EN61800‑3 Category C3 |
| Cooling type | Cold‑plate cooling |
| Mounting | Cold‑plate base mounting |
| Max.chargeable DC‑bus capacitance | 5.8 mF @400VAC |
| Switching frequency | 5 kHz /10 kHz configurable |
| Protection class | IP20 |
| Dimension(W×H×D) | 106.5 ×317 ×212 mm |
| Weight | 8.2 kg |
| Transport gross weight | 10.1 kg |
| Operating temperature range | 0 ~ +55 ℃ |
| Storage temperature range | -20 ~ +70 ℃ |
| Relative humidity | 5‑95% non‑condensing |
| Certification | CE,UL/cULus,UKCA |
| Origin | Austria |
Product features
- Permanent magnet synchronous design, fast dynamic response, strong overload capacity, peak torque can reach 22.8Nm, suitable for frequent start stop, acceleration and deceleration conditions.
- Equipped with EA induction EnDat single loop absolute encoder, it has strong anti-interference ability, no need to return to zero when powered on, and high position feedback accuracy.
- Natural self cooling and heat dissipation, no need for additional cooling fans, simple overall structure, reducing equipment failure rate.
- Flange 100mm standard installation, optical axis output, rotatable and bendable connector, flexible wiring, adaptable to various mechanical installation structures.
- The protection level is IP65, and the flange and shaft end protection are reliable, which can adapt to industrial environments with workshop dust and a small amount of oil splashing.
- Perfectly matched with the full range of servo drives from B&R ACOPOS and ACOPOS P3, seamlessly integrated with the B&R PLC motion control architecture.
- No brake version, suitable for applications outside the vertical axis; If vertical load is required, a derivative model with a brake should be selected.
- The status of the motor body can be diagnosed by reading temperature, encoder faults, and other diagnostic information through the driver, which facilitates equipment maintenance and troubleshooting.
