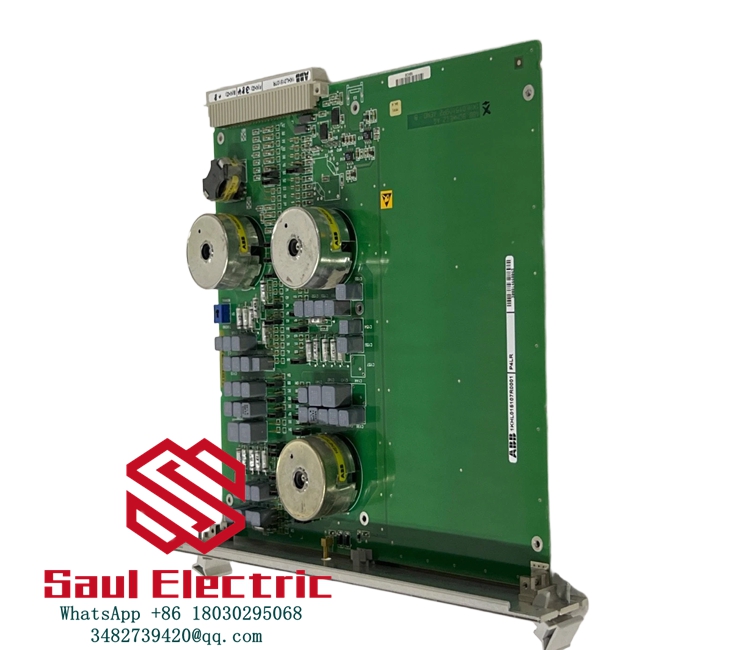

ABB P4LR 1KHL015107R0001 Relay Output Module PxRF Series

ABB P4LR 1KHL015107R0001 Relay Output Module PxRF Series

P4LR 1KHL015107R0001 is an ABB PxRF series Procontrol P4 system relay output module. The main function is to convert the internal logic operation results of Procontrol P4 controller into passive relay contact outputs, realizing valve switching, equipment start stop, interlock tripping, and alarm outputs;

ABB P4LR 1KHL015107R0001 Relay Output Module PxRF Series

Product features

Procontrol P4 system specific relay output card, passive dry contact output, compatible with on-site solenoid valves, relays, and alarm circuits.
Channel electrical isolation, isolating each output channel from each other, isolating on-site interference, and protecting the DCS backplane bus.
8-way relay contacts, with a maximum single channel capacity of 5A contacts, meeting the requirements of most switch interlocking circuits.
The panel LED status indicator intuitively displays the working status of each output, making it easy for maintenance personnel to quickly locate.
Rack slot installation, powered by P4 rack backplane, no external power supply required.

Item	Specification
Model	P4LR
Part No	1KHL015107R0001
Brand	ABB
Module type	Relay Output Module for Procontrol P4 System
System compatibility	ABB Procontrol P4 DCS rack system
Channel quantity	8 relay output channels
Contact type	Potential‑free relay contact
Rated contact rating	250 VAC / 30 VDC, 5 A per channel
Backplane bus	Procontrol P4 internal bus
Power consumption	0.75 A @ 5 VDC backplane
Diagnostic	Module self‑diagnosis, channel status LED indicators
Hot‑swap	Not supported
Net weight	0.42 kg
Mounting	Procontrol P4 rack slot mounting
Protection class	IP20, cabinet internal use
Operating temperature	0℃ ~ +55℃
Storage temperature	‑40℃ ~ +70℃
Humidity	5‑95% RH non‑condensing
Certification	CE
Status	Obsolete, spare‑part only
