ABB EL3060 Explosion proof Continuous Gas Analyzer

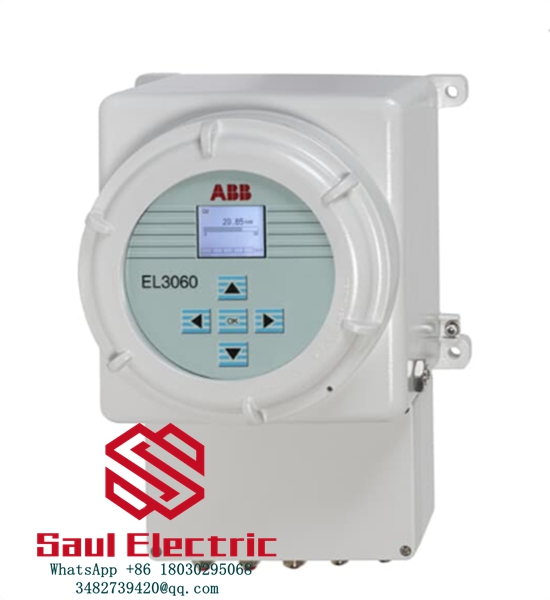

The ABB EL3060 is a compact, flameproof continuous gas analyzer from ABB’s EasyLine series, engineered specifically for hazardous areas (Zone 1/2) per ATEX/IECEx standards. It integrates a flameproof control unit (EL3060-CU) with optional plug‑and‑play analyzer modules—including Magnos28 (paramagnetic O₂), Caldos25/27 (thermal conductivity), or Uras26 (NDIR infrared)—to measure up to 5 gas components in one device. The EL3060 features a touchscreen interface for safe, through‑the‑glass operation without opening the enclosure, and leverages ABB’s decades‑proven measurement tech from the Advance Optima line for high reliability.
Intended Use
- Primary Role: Continuous, real‑time gas concentration monitoring in explosive or harsh industrial environments.
- Core Functions:
- Measure infrared‑active gases (CO, NO, SO₂) via Uras26 NDIR photometer.
- Analyze oxygen (O₂) via Magnos28 paramagnetic sensor.
- Detect thermal conductivity gases (H₂, Ar, CH₄) via Caldos25/27 modules.
- Provide cross‑sensitivity correction for up to 5 components and support for ABB Ability digital services (remote monitoring, QR‑code diagnostics).
- Application Goals: Ensure safety compliance, optimize process efficiency, and enable emissions monitoring in hazardous zones.
Environmental Requirements
| Parameter | Specification |
|---|---|
| Operating Temperature (Control Unit) | -20°C to +50°C (-4°F to +122°F) |
| Operating Temperature (Uras26 Module) | -20°C to +45°C (-4°F to +113°F); power on only > -10°C |
| Storage/Transport Temperature | -25°C to +65°C (-13°F to +149°F) |
| Relative Humidity | 5%–95% (non‑condensing) |
| Altitude | Up to 3,000 m (9,843 ft) |
| Explosion Protection | ATEX II 2G Ex d IIC T4 Gb; IECEx Ex d IIC T4 |
| Protection Rating | IP65 (flameproof die‑cast aluminum enclosure) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | EL3060 (EasyLine Series) |
| Manufacturer | ABB Measurement & Analytics |
| Analyzer Modules | Uras26 (NDIR), Magnos28 (O₂), Caldos25/27 (TCD) |
| Measurable Gases | CO, NO, SO₂, O₂, H₂, Ar, CH₄, etc. |
| Number of Components | Up to 5 (with cross‑sensitivity correction) |
| Display/Operation | Touchscreen (through‑the‑glass, no enclosure opening) |
| Communication | Ethernet, Modbus TCP, ABB Ability (remote diagnostics) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Dimensions (W×H×D) | ~320 mm × 350 mm × 200 mm (12.6 in × 13.8 in × 7.9 in) |
| Weight | ~15 kg (33 lbs) (standard configuration) |
| Certifications | ATEX, IECEx, CE, ULA |
Typical Application Industries
The EL3060 is deployed in hazardous‑zone industries requiring continuous gas analysis:
- Oil & Gas: Offshore platforms, refineries, and natural gas processing (explosive gas monitoring).
- Chemical & Petrochemical: Fertilizer plants, ethylene crackers, and hazardous batch processes.
- Power Generation: Combined‑cycle plants, gas turbines, and waste‑to‑energy facilities (combustion optimization).
- Pharmaceuticals: Solvent recovery and inert atmosphere monitoring in explosive production areas.
- Metals & Mining: Furnace gas analysis and safety monitoring in high‑temperature, hazardous environments.
Similar Series Products (ABB EasyLine/Advance Optima)
-
ABB EL3000 – General‑purpose EasyLine analyzer (non‑flameproof, Zone 2 only); same core tech as EL3060 but for safe/light hazardous areas
- ABB AO2000 (Advance Optima) – Modular, high‑end gas analyzer series; supports more complex multi‑gas analysis and remote I/O for large‑scale plants
- ABB EL3040 – Compact EasyLine analyzer for Zone 2 hazardous areas; ideal for cost‑sensitive, less explosive applications。
