The RCI-Box (Remote Control Interface) XU D194 3BHC018137R0001 is used to transfer digital measurement signals from the main controller to an oscilloscope. This allows to monitor internal measurement signals in real-time without having to install any probes in the converter.
The digital internal signals are converted to analog signals and sent to the oscilloscope by the RCI-Box XU D194. The signals to be monitored can be freely selected in the PCS6000 HMI. A maximum of 8 channels can be monitored simultaneously with one RCI.Box.

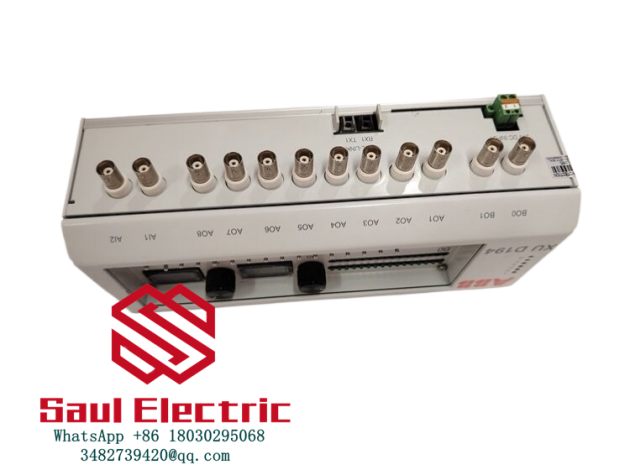

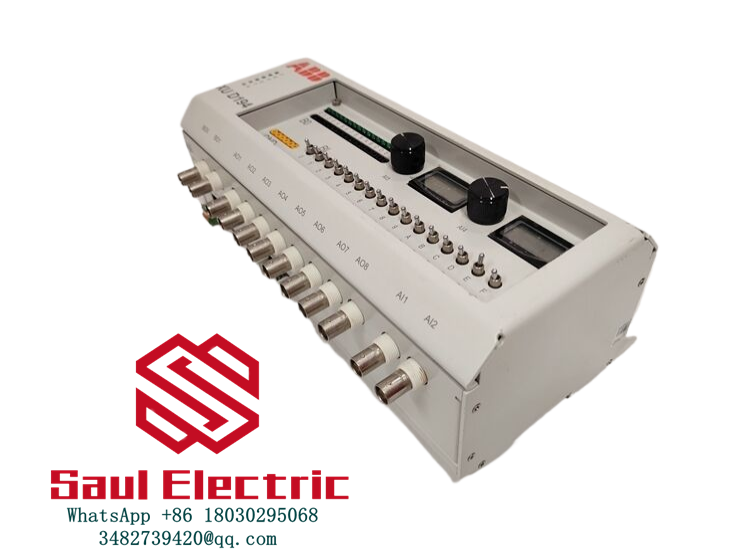

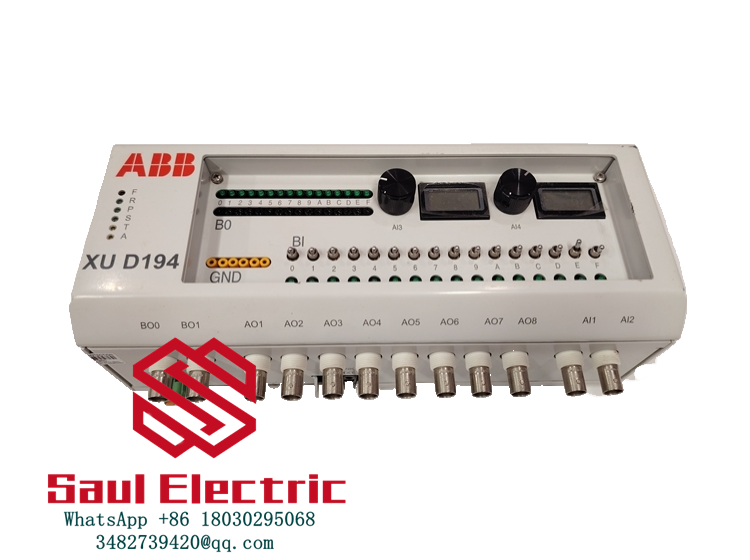

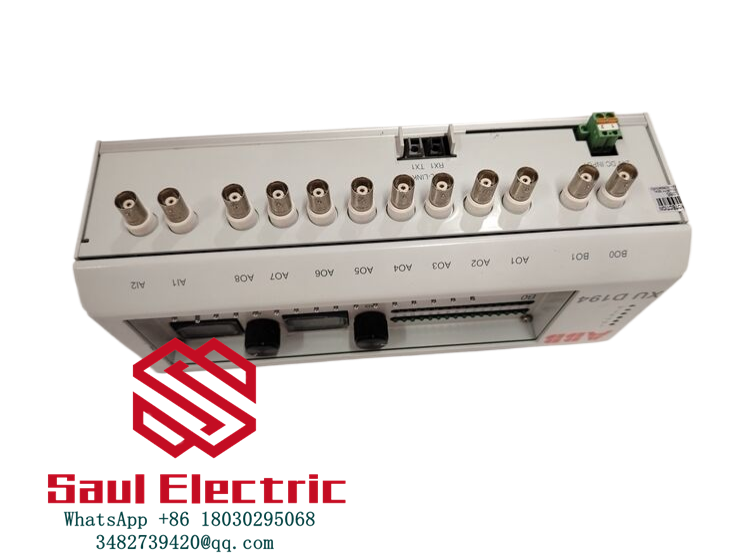

RCI-Box XU D194 3BHC018137R0001 as shown in the figure
– Weight: approximately 2 kg
– Length: 275 mm
– Width: 136 mm
– Height: 101 mm
– Input: 24V DC
Replaceable control components in CCU

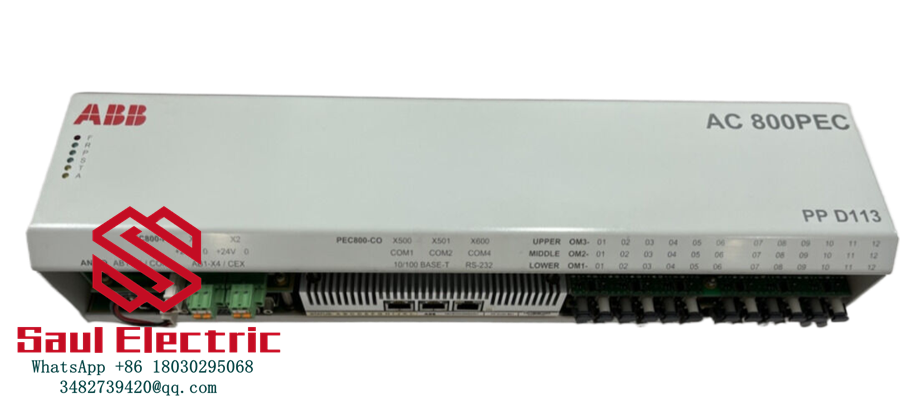

AC 800PEC PP D113 B03-20-110110 3BHE023584R204Z
AC 800PEC Combi I/O UA D155 A0111 3BHE029110R0111
Replaceable control components in POU
HVD XV C770 BE102 3BHE021083R0102
VLSCD XV C724 BE 3BHE009017R0102
ASE2B UD C920 BE102 3BHE034863R0002

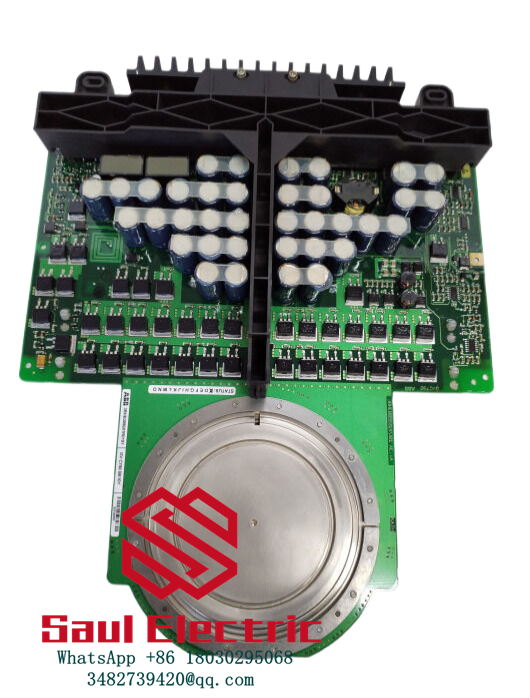

IGCT (Low Power) RC-IGCT 5SHX 1960L0006, 91mm GVC736 3BHB056120R0003
IGCT (Old type) IGCT, 4500V, 91mm, 5SHY 3545L0016 3BHB020720R0002
IGCT (New generation) GCT, 4500V, 91mm, 5SHY 4045L0006 (One to one replacement of the 5SHY 3545L0016) 3BHB030310R0001
5SHY3545L0016 3BHB020720T0002 IGBT semiconductor switching device
