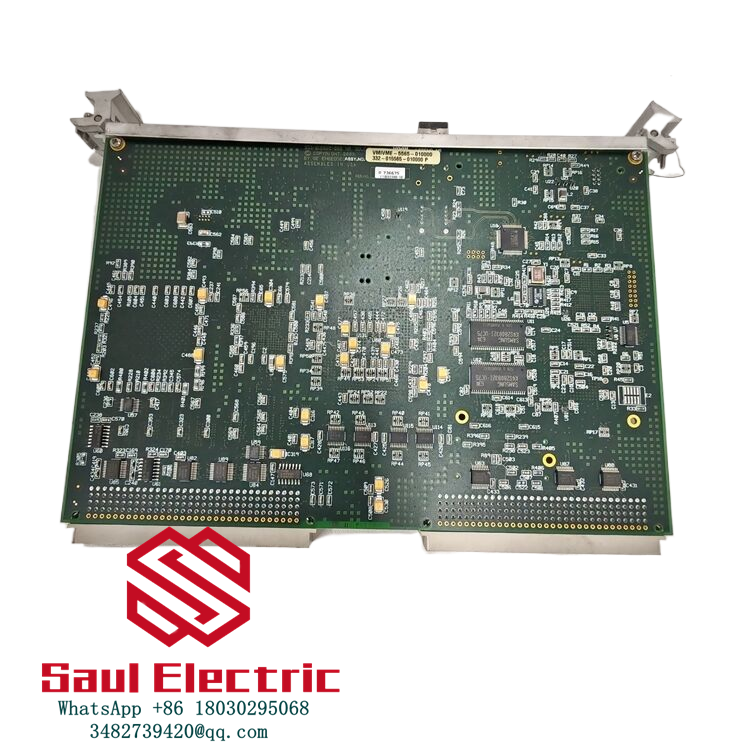

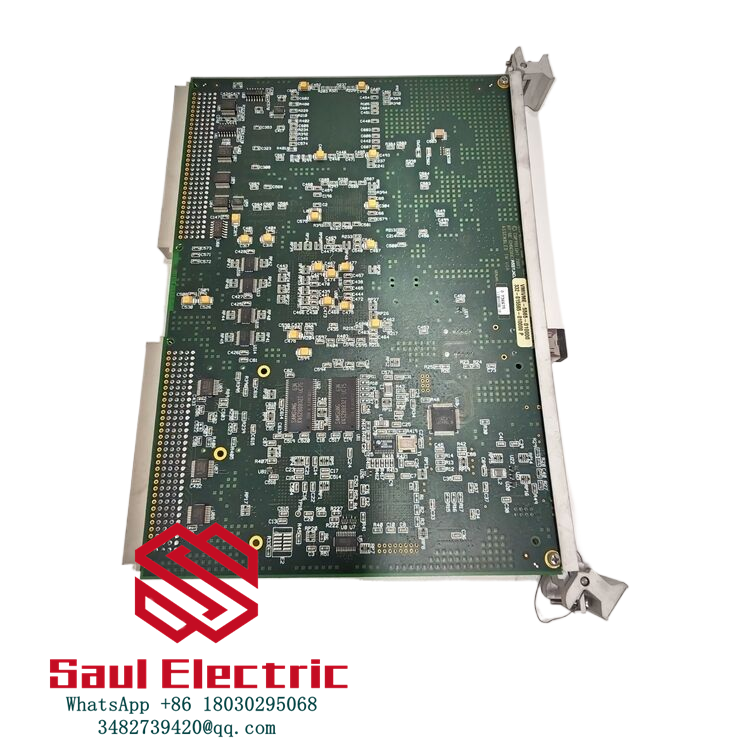

The VMIC VMIVME-5594 is a high-performance reflective memory board designed for real-time data sharing in industrial automation systems. As part of VMIC’s VMEbus product family, this module enables deterministic communication between multiple controllers with nanosecond-level synchronization. The VMIVME-5594 provides 256MB of shared memory space with <150ns access latency, making it ideal for mission-critical applications requiring time-sensitive data exchange.
Featuring fiber-optic connectivity, the VMIVME-5594 creates a low-latency network that maintains data integrity even in electrically noisy factory environments. Its dual-port architecture allows simultaneous access from both VMEbus and local processors.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | VMIVME-5594 |
| Manufacturer | VMIC (GE Subsidiary) |
| Type | Reflective Memory Board |
| Memory Capacity | 256MB SDRAM |
| Latency | <150ns |
| Data Rate | 174MB/s sustained |
| Interfaces | VME64x (A32/D32), Fiber Channel |
| Fiber Ports | 2 (ST connectors) |
| Error Detection | 32-bit CRC |
| Operating Temp | -40°C to +85°C |
| Power Consumption | 15W typical |
| Dimensions | 6U × 160mm × 233mm |
| Certifications | CE, UL, RoHS |
Key Features and Advantages:
Deterministic performance: The VMIVME-5594 achieves sub-microsecond synchronization across distributed systems. Its hardware-based data replication eliminates software overhead.
Robust connectivity: Multi-mode fiber support enables cable runs up to 500m without repeaters. Hot-swappable modules facilitate system expansion.
Reliability: Built-in error checking ensures >99.999% data integrity in 24/7 operations. Conformal coating protects against industrial contaminants.
Application Areas:
- Aerospace: Flight simulator synchronization
- Energy: Power grid phasor measurement
- Manufacturing: Multi-axis motion control
- Defense: Radar data fusion
In steel mills, the VMIVME-5594 coordinates rolling mill stands with <1μs skew.
Related Products:
- GE Electric丨IS220UCSAH1A PAMC Acoustic Monitor (processor)
- Fanuc/GE VMIVME-4140 32-Channel 12-bit Analog Output Board
- GE V7768-320000 VME Single Board Computer 3509301007768-320000B
- GE VMIVME-4514A analog I/O card based on vmebus
- IS215ACLEH1BB application layer module for Mark VI
Installation and Maintenance:
Installation preparation: Verify VME slot availability and fiber optic cable routing before installing VMIVME-5594. Use ESD protection during handling.
Maintenance recommendations: Clean fiber connectors quarterly with approved cleaning kits. Monitor board temperature via onboard sensors.
Product Assurance:
VMIC provides 12-month warranty with lifetime technical support for VMIVME-5594. Each unit undergoes 500-hour burn-in testing including thermal shock. Global next-day replacement available.
