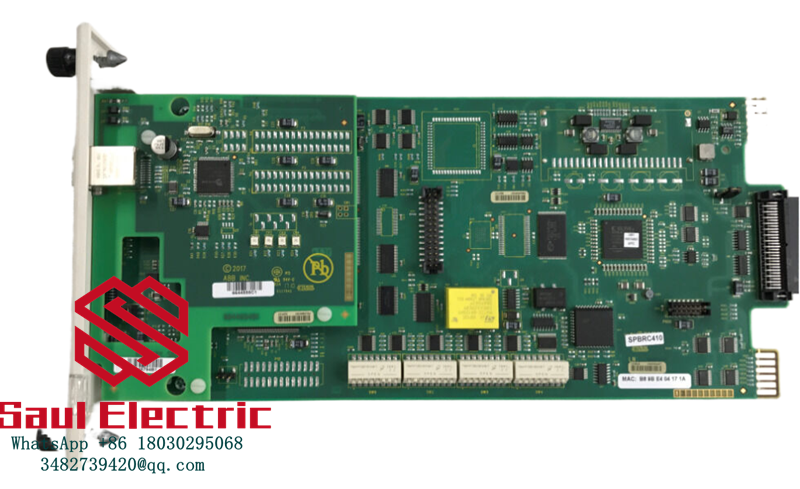

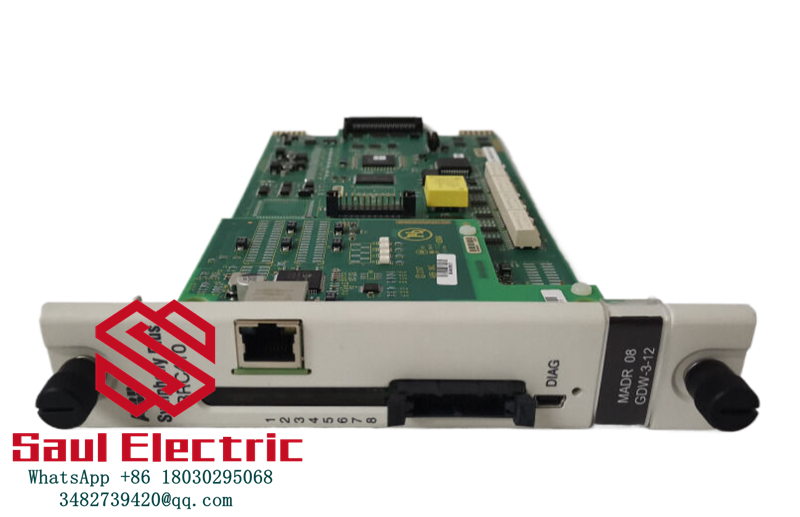

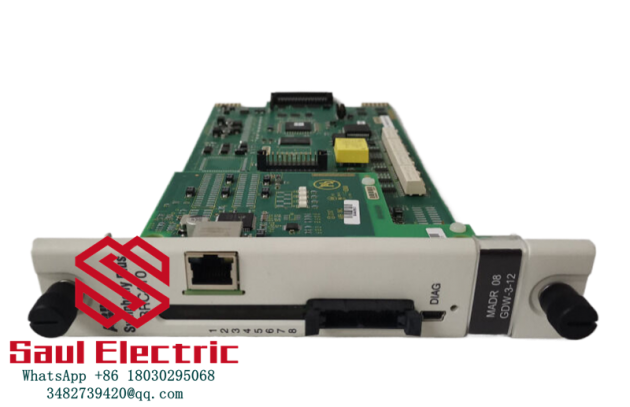

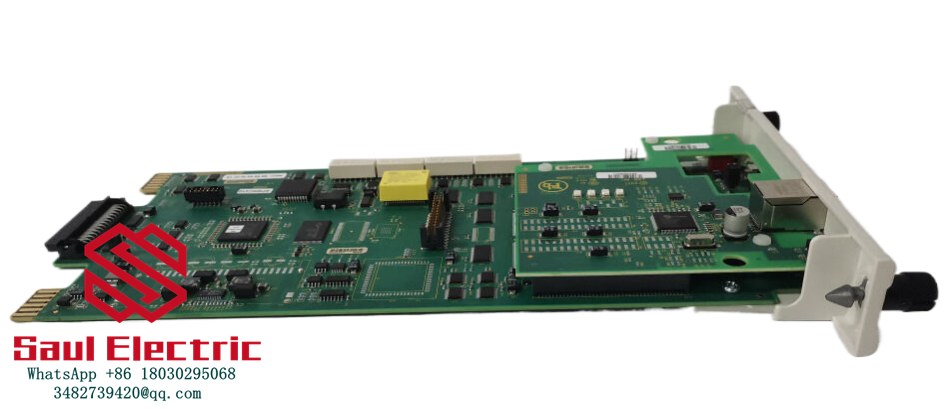

The ABB SPBRC410 is an advanced industrial controller featuring Modbus TCP/IP connectivity, designed for seamless integration in modern automation systems. As part of ABB’s programmable controller series, this compact unit combines robust process control capabilities with enterprise-level communication protocols. The SPBRC410 delivers deterministic control with 1ms cycle times, making it ideal for synchronized operations in multi-axis motion control applications.
With dual-core ARM Cortex processing architecture, the SPBRC410 supports simultaneous execution of 32 PID loops while maintaining <0.01% control accuracy. Its integrated web server enables remote diagnostics and configuration via standard browsers, reducing commissioning time by up to 40% compared to traditional controllers.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | SPBRC410 |
| Manufacturer | ABB |
| Type | Programmable Controller with Modbus TCP |
| Processor | Dual-core ARM Cortex-A9 @800MHz |
| Memory | 512MB DDR3 + 4GB eMMC |
| Control Cycles | 1ms (minimum) |
| PID Loops | 32 simultaneous |
| Accuracy | ±0.01% of span |
| Communication | Modbus TCP/IP, Ethernet/IP |
| Digital I/O | 16 configurable points |
| Analog Inputs | 8 channels (16-bit) |
| Operating Temp | -20°C to +60°C |
| Power Supply | 24VDC ±10% |
| Certifications | UL 508, CE, IEC 61131-2 |
Key Features and Advantages:
High-speed control: The SPBRC410’s deterministic architecture ensures <50μs jitter in critical timing applications like packaging lines. Its patented anti-windup algorithm prevents integral saturation in cascaded PID configurations.
Connectivity: Native OPC UA server functionality enables direct MES/ERP integration without middleware. The built-in data logger stores 1 million samples with millisecond timestamp precision for forensic analysis.
Durability: Conformal coated PCB withstands 95% relative humidity in food processing environments. The aluminum enclosure provides IP65 protection against dust and water jets.
Application Areas:
- Pharmaceutical: Batch process control (FDA 21 CFR Part 11 compliant).
- Water Treatment: Pump station optimization with flow/pressure cascades.
- Energy: Solar tracker positioning systems.
- Automotive: Robotic welding cell coordination.
In chemical plants, the SPBRC410’s ATEX Zone 2 certification enables direct installation in hazardous areas.
Related Products:
- ABB DSPU131 3BSE000355R1 MA200 Interface Board
- ABB丨AC 800PEC XUD194A丨XUD194 3BHC018137R0001 High performance controller
- ABB丨PFTL 101AER-0.5KN 3BSE023010R1 Manufactured on piezomagnetic principle
- CI857K01 3BSE018144R1 INSUM communication module
- I/O UNIT DSTC454 5751017-F Remote input/output base unit
- PFSK162 Input/output relay module 3BSE015088R1
Installation and Maintenance:
Installation preparation: Verify grounding resistance <1Ω before powering the SPBRC410 in high-noise environments. Use CAT6 shielded Ethernet cables for Modbus TCP networks exceeding 50m.
Maintenance recommendations: Perform annual firmware updates via ABB Automation Builder. Clean cooling fins biannually using low-pressure nitrogen in dusty conditions.
Product Assurance:
ABB provides 12-month warranty with lifetime technical support for SPBRC410 controllers. Each unit undergoes 500-hour accelerated life testing including 100 thermal cycles. Global service centers offer 24/7 emergency support with 4-hour response commitment.
