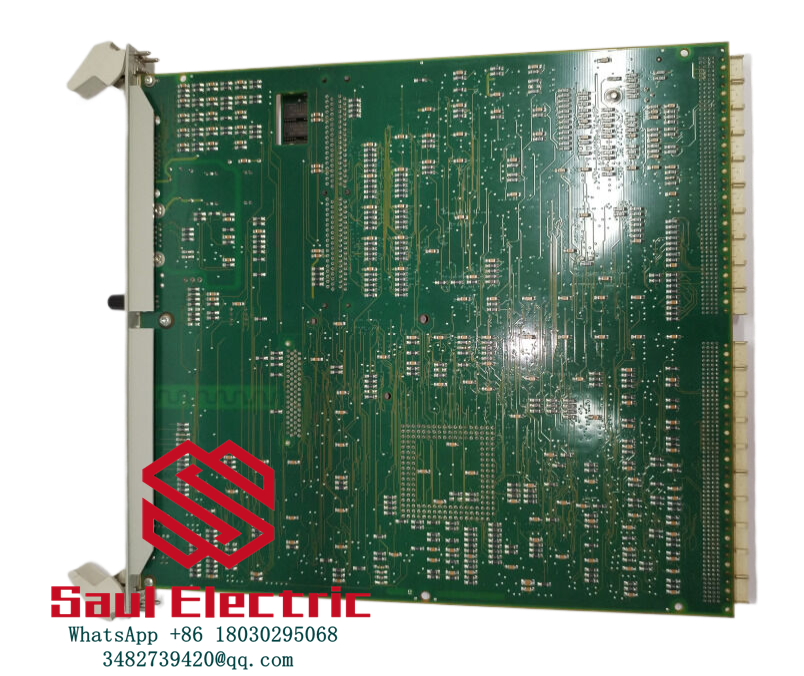

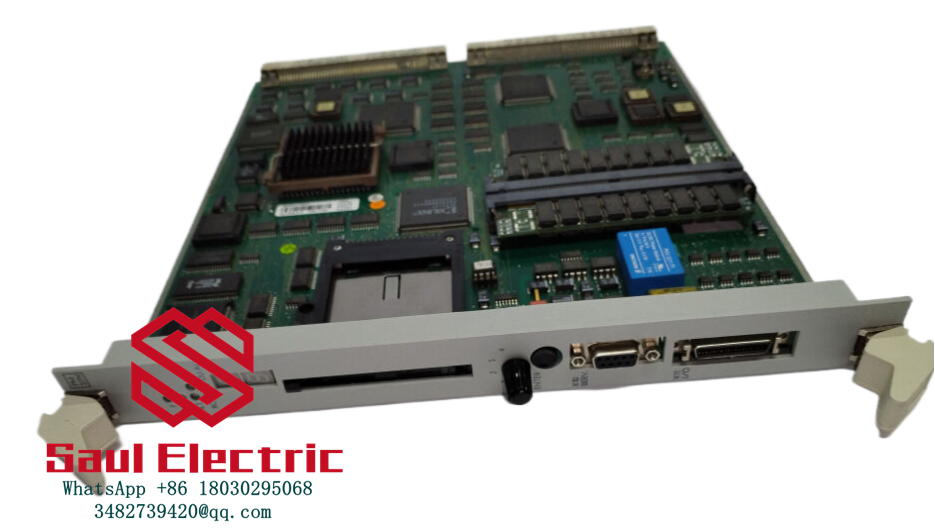

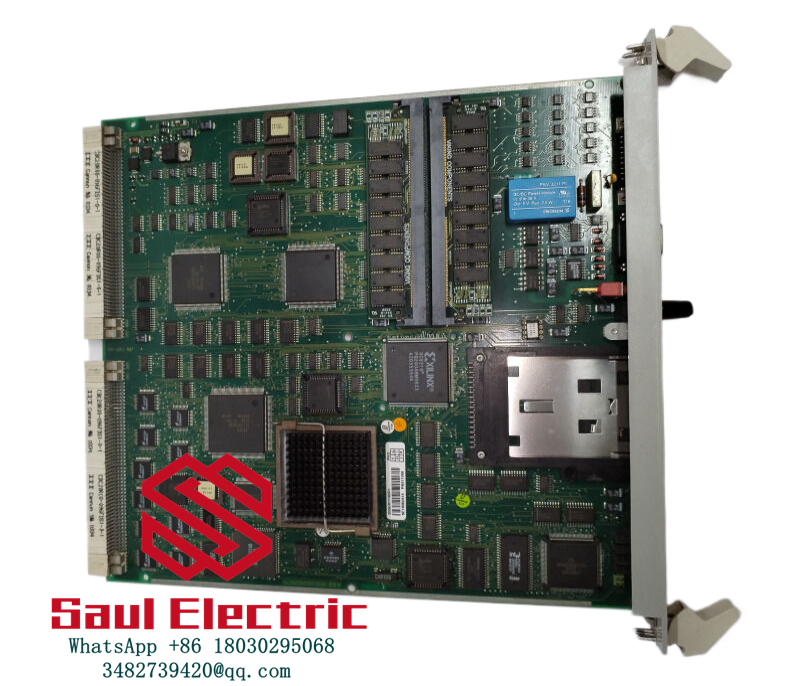

The ABB PM511V08 3BSE011180R1 is a high-performance processor module designed for industrial automation control systems. As part of ABB’s AC 800M controller family, the PM511V08 3BSE011180R1 delivers powerful computing capabilities for complex control applications. The PM511V08 3BSE011180R1 features advanced processing architecture with multiple communication interfaces, making it ideal for demanding process control environments. With its robust design and extensive I/O support, the PM511V08 3BSE011180R1 serves as the central processing unit in distributed control systems.
Technical Specifications
Product Model | PM511V08 3BSE011180R1
Manufacturer | ABB
Product Type | Processor Module
Processor Type | 32-bit RISC
Clock Speed | 800MHz
Memory Capacity | 512MB RAM, 2GB Flash
Communication Ports | 2×Ethernet, 1×RS-232, 1×RS-485
Protocol Support | MODBUS TCP/IP, OPC UA, PROFIBUS DP
Operating Voltage | 24VDC ±10%
Power Consumption | 15W typical
Operating Temperature | -40°C to +70°C
Humidity Range | 5% to 95% non-condensing
Dimensions | 200mm × 150mm × 60mm
Weight | 1.2kg
Key Features and Advantages
The ABB PM511V08 3BSE011180R1 offers exceptional processing power with its advanced 32-bit RISC architecture, capable of handling complex control algorithms with millisecond cycle times. Its dual Ethernet ports enable redundant network configurations for maximum system availability. The module features extensive diagnostic capabilities with real-time monitoring of processor health and performance metrics. Built-in security features include user authentication and data encryption for cyber protection. The PM511V08 3BSE011180R1 supports online program modifications without process interruption, significantly reducing downtime during system updates.
Application Fields
The ABB PM511V08 3BSE011180R1 is widely used in process industries requiring high-performance control. In oil and gas refineries, it manages complex distillation processes and safety shutdown systems. Power plants utilize this module for turbine control and protection applications. The PM511V08 3BSE011180R1 also excels in chemical processing plants where precise sequence control and batch management are critical. Water treatment facilities benefit from its robust performance in managing distributed pumping and filtration systems.
Related Products
- PM891K01 3BSE053241R1 AC 800M Processor Unit
- 3BSE076939R1 PM866AK01 AC 800M communication interface control unit
- PM825 3BSE010796R1 S800 Processor AC80 -Controller
- ABB BC810K02 3BSE031155R1 performance communication module
- PM591V08 3BSE011185R1 – High-availability version with redundant processors
Installation and Maintenance
Installation preparation: Before installing the ABB PM511V08 3BSE011180R1, ensure proper rack mounting space and ventilation. Verify power supply specifications and prepare appropriate network cables for communication interfaces. Grounding must comply with ABB’s installation guidelines to prevent electromagnetic interference.
Maintenance recommendations: Regularly monitor the PM511V08 3BSE011180R1 processor status through system diagnostics. Maintain adequate backup of application programs and configuration data. Clean cooling vents periodically to prevent dust accumulation. Schedule firmware updates during planned maintenance windows to benefit from performance enhancements and security patches.
Product Assurance
ABB provides 12-month warranty coverage for the PM511V08 3BSE011180R1, including comprehensive technical support. Each module undergoes rigorous factory testing to ensure reliability in industrial environments. Our global service network offers 24/7 assistance with guaranteed response times for critical applications.
