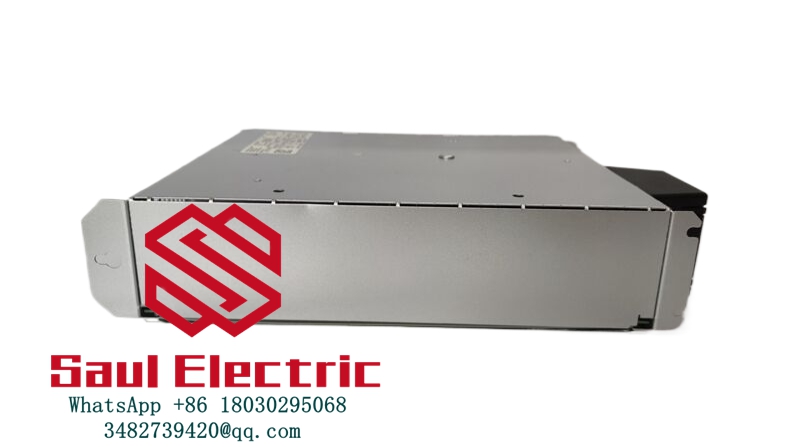

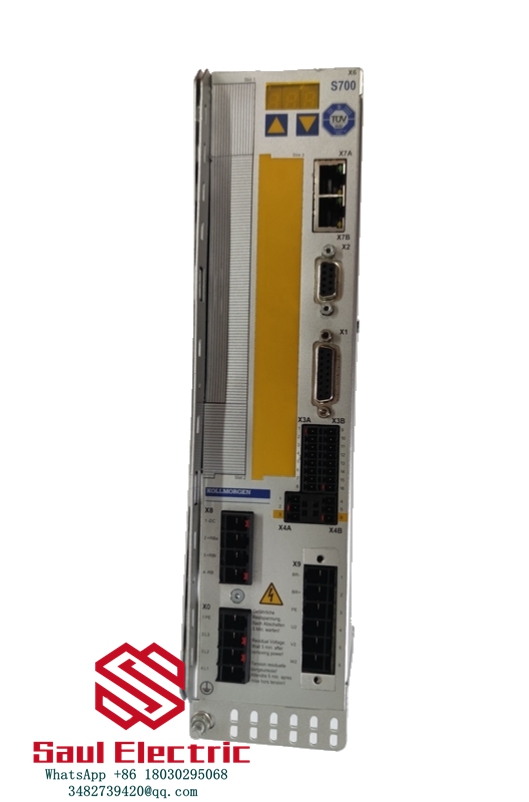

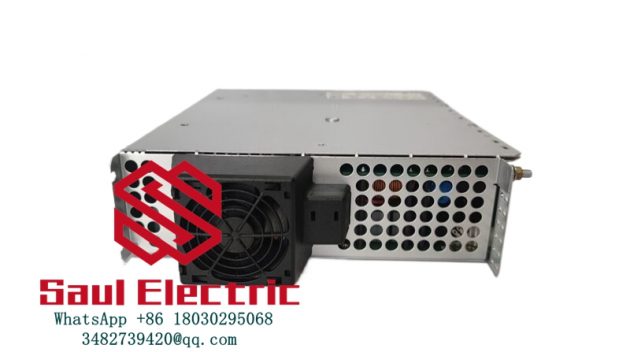

The Kollmorgen S70602-NANANA represents the latest generation of high-performance servo drives designed for precision motion control applications. As part of Kollmorgen’s renowned S700 series, this advanced drive delivers exceptional dynamic response and positioning accuracy for sophisticated industrial automation systems.
Engineered with cutting-edge control algorithms, the S70602-NANANA provides seamless integration with various servo motors and industrial networks. Its compact design and rugged construction make it ideal for installation in space-constrained control panels while maintaining reliable operation in demanding industrial environments with high vibration and electrical noise.
Technical Specifications
Parameter NameParameter Value
Model：S70602-NANANA
Manufacturer：Kollmorgen
Type：Digital Servo DriveRated Current20APeak Current60AInput Voltage200-480V ACControl ModeTorque/Velocity/PositionCommunicationEtherCAT, CANopenFeedbackEnDat 2.2, Hiperface DSLOperating Temperature0°C to +55°CStorage Temperature-40°C to +85°CDimensions150mm × 70mm × 180mmWeight1.8kgProtection ClassIP20
Main Features and Advantages:
The Kollmorgen S70602-NANANA delivers superior motion control performance with its advanced current loop technology and adaptive filtering. Its high-speed processing capabilities enable precise positioning with minimal settling time, making it ideal for high-throughput automation systems.
Network integration: The drive supports multiple industrial communication protocols including EtherCAT for real-time control applications. The S70602-NANANA also features comprehensive safety functions including STO (Safe Torque Off) and SS1 (Safe Stop 1) for enhanced machine safety.
Application Areas:
- Robotics: Articulated arm control
- Packaging: High-speed filling machines
- Metal Processing: CNC machine tools
- Printing: Web tension control
- Semiconductor: Precision wafer handling
Related Products:
- S70601-NANANA: Lower current version (10A)
- S70603-NANANA: Higher current version (30A)
- S70604-NANANA: Advanced safety version
- S70605-NANANA: Extended temperature range
- S70606-NANANA: Multi-axis synchronization version
Installation and Maintenance:
Installation preparation: Verify proper power supply specifications and cooling requirements before installing the Kollmorgen S70602-NANANA. Ensure adequate clearance for ventilation and proper grounding for EMI protection.
Maintenance recommendations: Perform annual firmware updates and visual inspections. The S70602-NANANA requires minimal maintenance but benefits from periodic cleaning of cooling fins and connector inspections.
Product Assurance:
Kollmorgen provides 24-month warranty coverage for the S70602-NANANA. Each unit undergoes extensive factory testing to ensure reliable performance in industrial automation applications.
