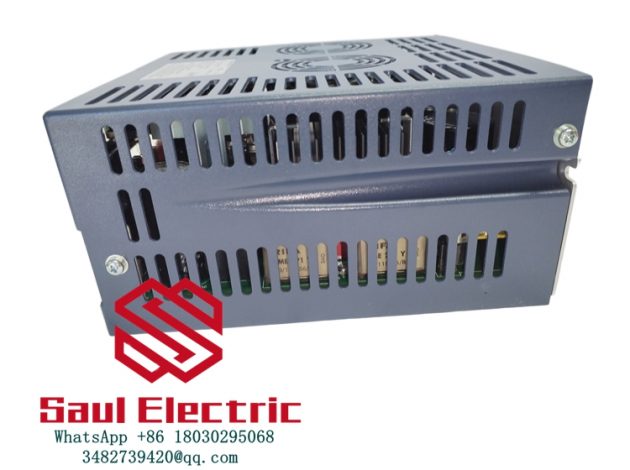

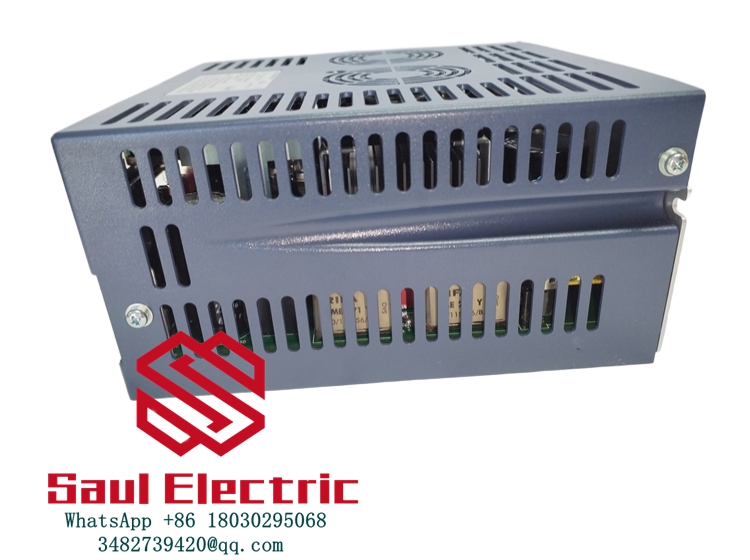

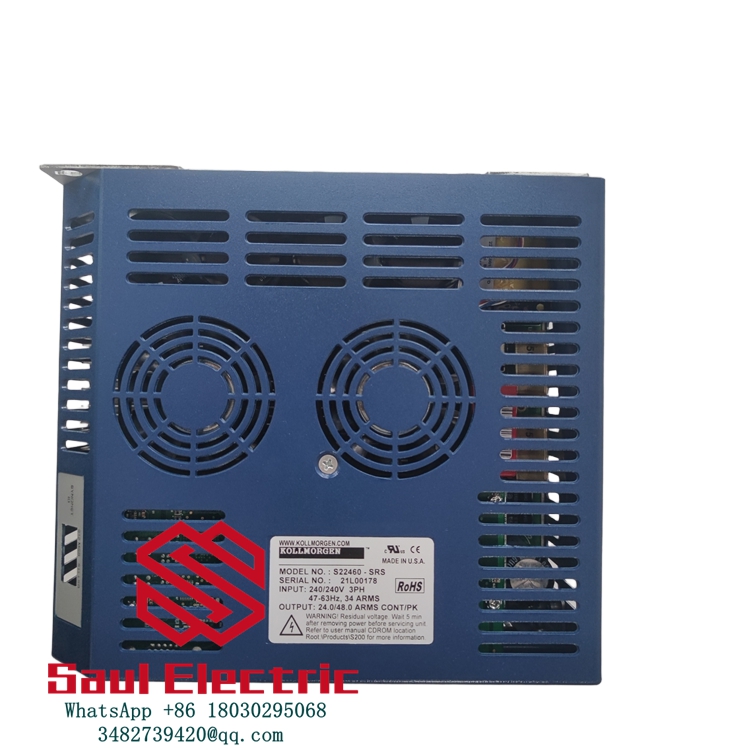

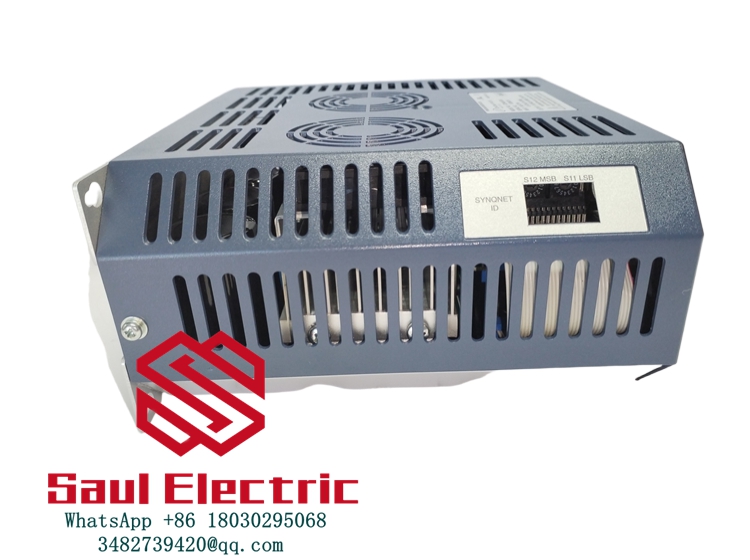

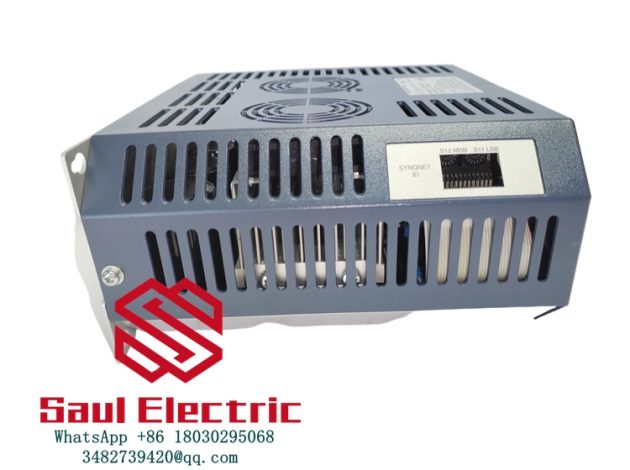

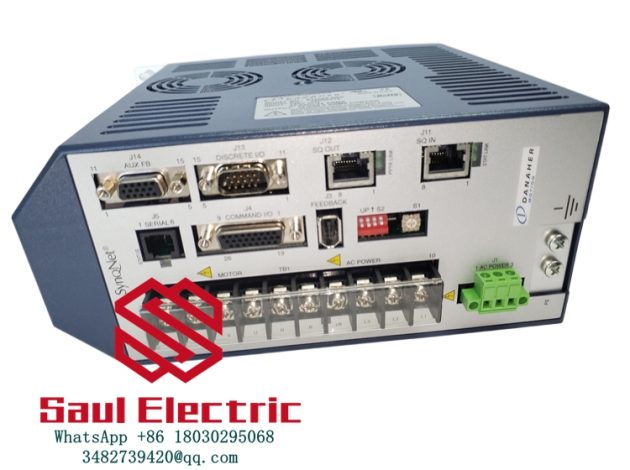

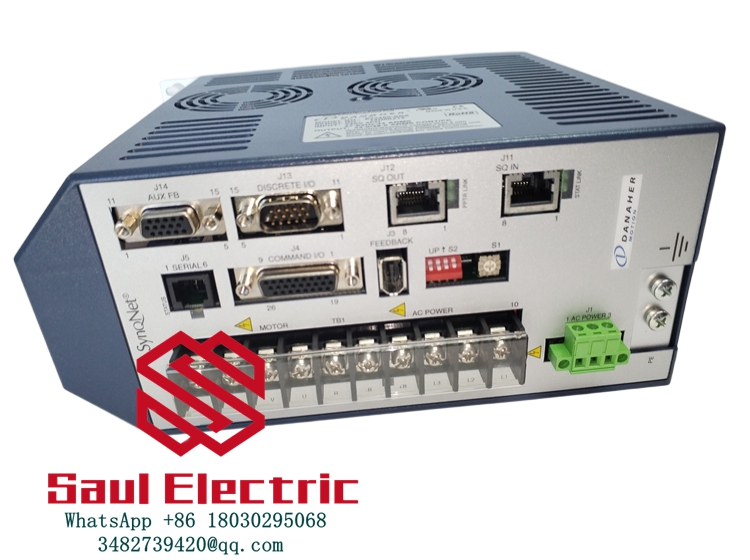

The Kollmorgen S22460-SRS is a high-performance compact brushless servo drive designed for precision motion control applications. As part of Kollmorgen’s acclaimed S200 series, this advanced drive delivers exceptional dynamic performance and positioning accuracy for demanding industrial automation systems.
Engineered with innovative control algorithms, the S22460-SRS provides seamless integration with various servo motors and industrial networks. Its ultra-compact design and rugged construction make it ideal for installation in space-constrained control panels while maintaining reliable operation in harsh industrial environments with high vibration and electrical noise.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | S22460-SRS |
| Manufacturer | Kollmorgen |
| Type | Compact Brushless Servo Drive |
| Rated Current | 20A |
| Peak Current | 60A |
| Input Voltage | 200-480V AC |
| Control Mode | Torque/Velocity/Position |
| Communication | EtherCAT, CANopen |
| Feedback | EnDat 2.2, Hiperface DSL |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 150mm × 70mm × 180mm |
| Weight | 1.8kg |
| Protection Class | IP20 |
Main Features and Advantages:
The Kollmorgen S22460-SRS delivers superior motion control performance with its advanced current loop technology and adaptive filtering. Its high-speed processing capabilities enable precise positioning with minimal settling time, making it ideal for high-throughput automation systems.
Network integration: The drive supports multiple industrial communication protocols including EtherCAT for real-time control applications. The S22460-SRS also features comprehensive safety functions including STO (Safe Torque Off) and SS1 (Safe Stop 1) for enhanced machine safety.
Application Areas:
- Robotics: Articulated arm control
- Packaging: High-speed filling machines
- Metal Processing: CNC machine tools
- Printing: Web tension control
- Semiconductor: Precision wafer handling
Installation and Maintenance:
Installation preparation: Verify proper power supply specifications and cooling requirements before installing the Kollmorgen S22460-SRS. Ensure adequate clearance for ventilation and proper grounding for EMI protection.
Maintenance recommendations: Perform annual firmware updates and visual inspections. The S22460-SRS requires minimal maintenance but benefits from periodic cleaning of cooling fins and connector inspections.
Product Assurance:
Kollmorgen provides 24-month warranty coverage for the S22460-SRS, including technical support and firmware updates. Each unit undergoes extensive factory testing to ensure reliable performance in industrial automation applications.
