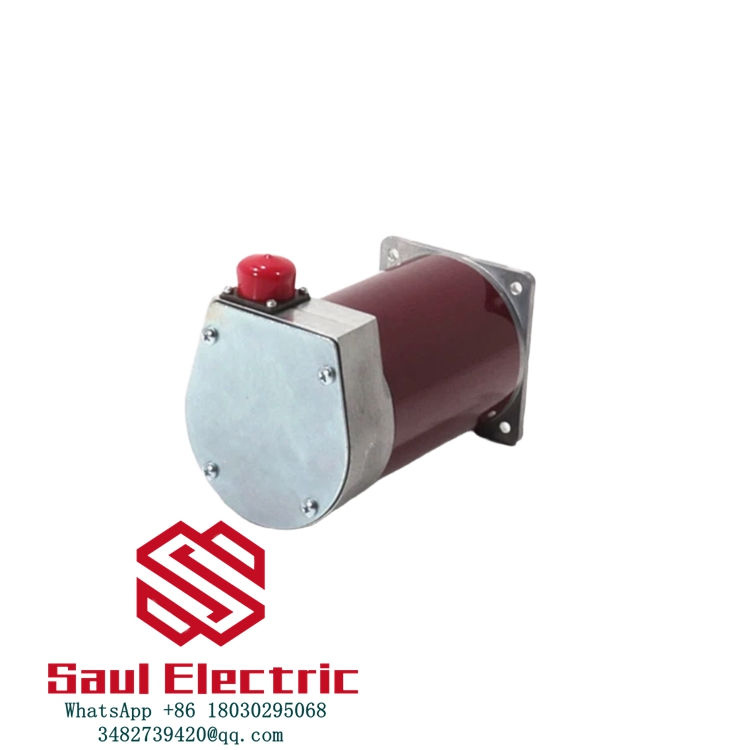

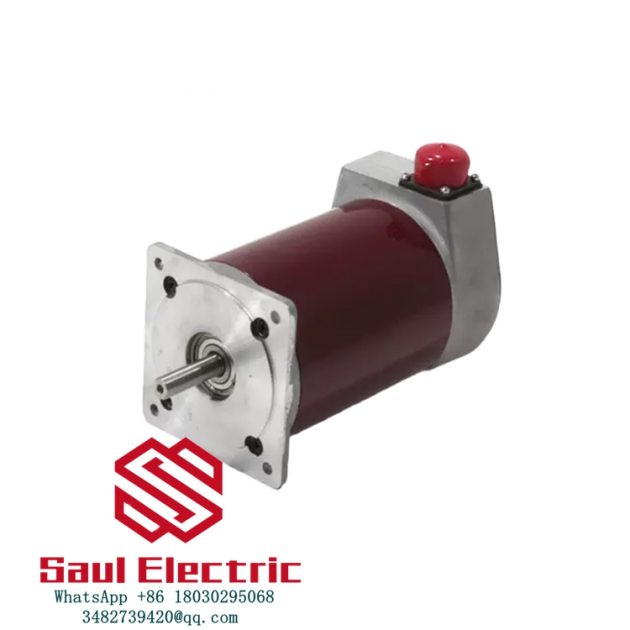

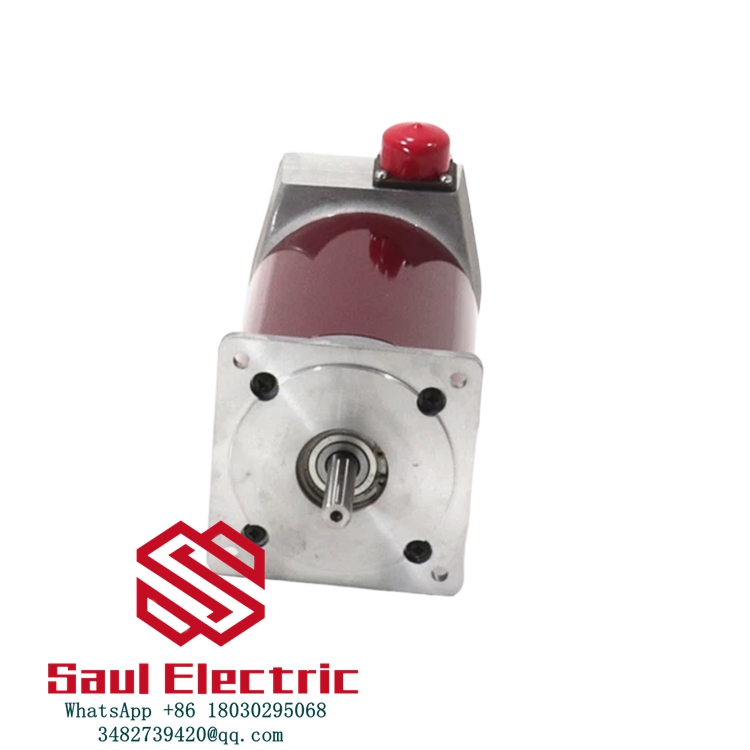

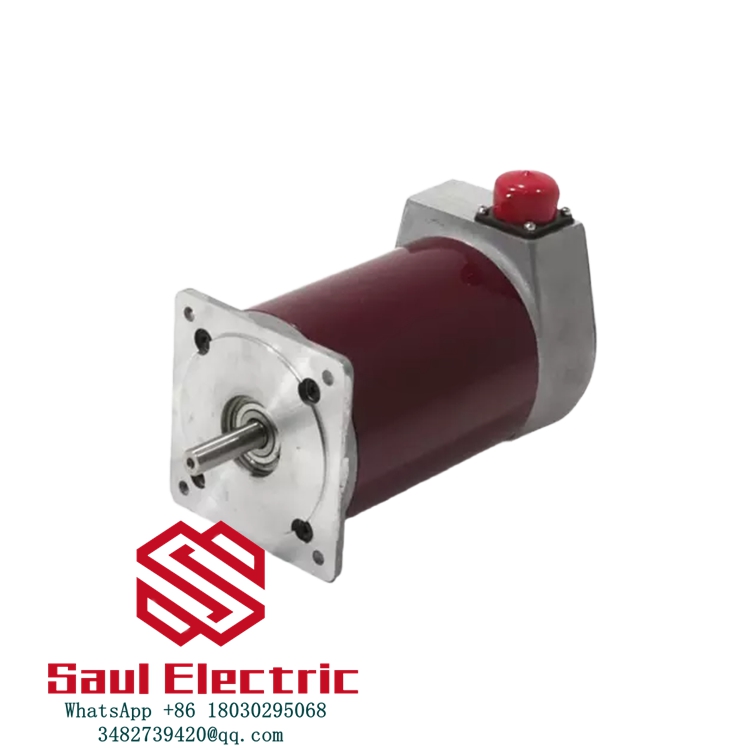

Kollmorgen E33NRHA-LNN-NS-00‌ high-precision micro stepper motor

In stock

The ‌Kollmorgen E33NRHA-LNN-NS-00‌ is a high-precision micro stepper motor designed for applications requiring compact size and exceptional positioning accuracy. As part of Kollmorgen’s renowned E33 series, this motor delivers reliable performance in space-constrained automation systems while maintaining precise motion control capabilities.

123

The ‌Kollmorgen E33NRHA-LNN-NS-00‌ is a high-precision micro stepper motor designed for applications requiring compact size and exceptional positioning accuracy. As part of Kollmorgen’s renowned E33 series, this motor delivers reliable performance in space-constrained automation systems while maintaining precise motion control capabilities.

Engineered with advanced magnetic circuit design, the ‌E33NRHA-LNN-NS-00‌ offers smooth operation and excellent torque characteristics. Its compact form factor makes it ideal for integration into medical devices, laboratory automation equipment, and small-scale industrial machinery where space optimization is critical.

Technical Specifications

Parameter Name Parameter Value
Model E33NRHA-LNN-NS-00
Manufacturer Kollmorgen
Type Micro Stepper Motor
Step Angle 1.8°
Holding Torque 0.35 Nm
Rated Current 1.5A/Phase
Resistance 2.5Ω/Phase
Inductance 3.5mH/Phase
Rotor Inertia 68 g·cm²
Weight 0.45kg
Shaft Diameter 5mm
Length 33mm
Protection Class IP40

Main Features and Advantages:

The ‌Kollmorgen E33NRHA-LNN-NS-00‌ delivers outstanding positioning accuracy with its 1.8° step angle, making it suitable for applications requiring precise angular control. Its compact design (only 33mm length) enables integration in space-limited environments without compromising performance.

The motor features optimized magnetic circuit design that minimizes vibration and ensures smooth operation at various speeds. The ‌E33NRHA-LNN-NS-00‌ also offers excellent heat dissipation characteristics, allowing sustained operation in demanding applications.

Application Areas:

  • Medical: Precision dosing pumps
  • Laboratory: Automated sample handling
  • Semiconductor: Small component positioning
  • Robotics: Compact joint actuators
  • Packaging: Small-scale product handling

Installation and Maintenance:

Installation preparation: Verify proper alignment and coupling before installing the ‌Kollmorgen E33NRHA-LNN-NS-00‌. Ensure adequate clearance for heat dissipation and proper electrical connections.

Maintenance recommendations: The ‌E33NRHA-LNN-NS-00‌ requires minimal maintenance due to its brushless design. Periodic inspection of bearings and connections is recommended for optimal performance.

Product Assurance:

Kollmorgen provides 12-month warranty coverage for the ‌E33NRHA-LNN-NS-00. Each unit undergoes rigorous quality testing to ensure reliable performance in precision motion applications.

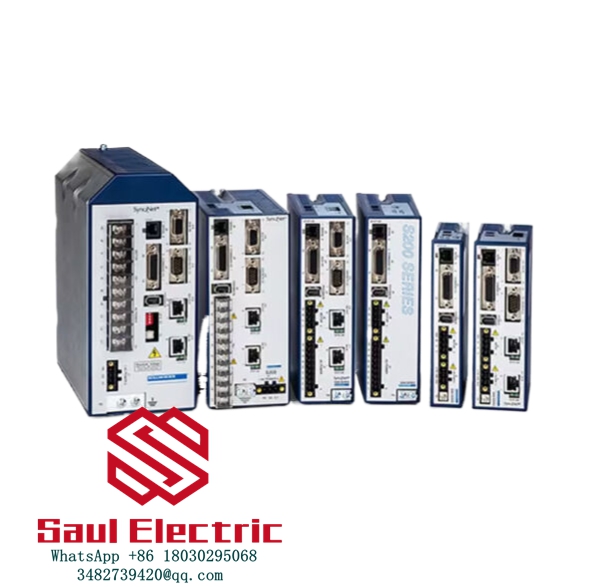

Kollmorgen S20330-SRS compact brushless servo drive
