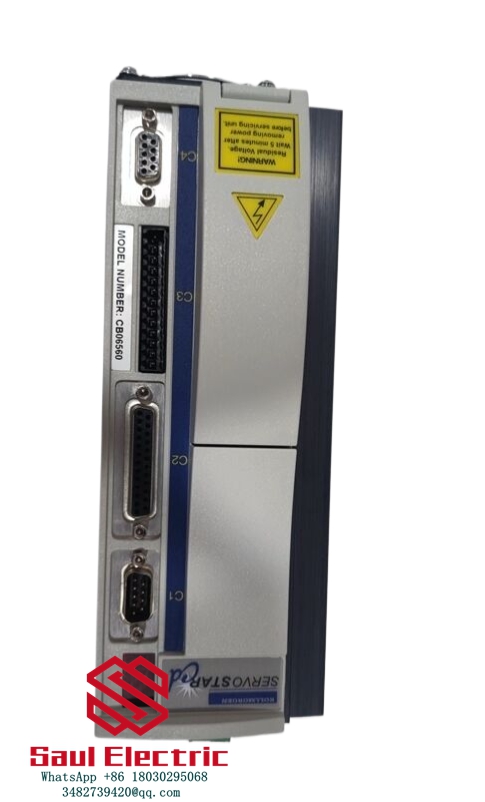

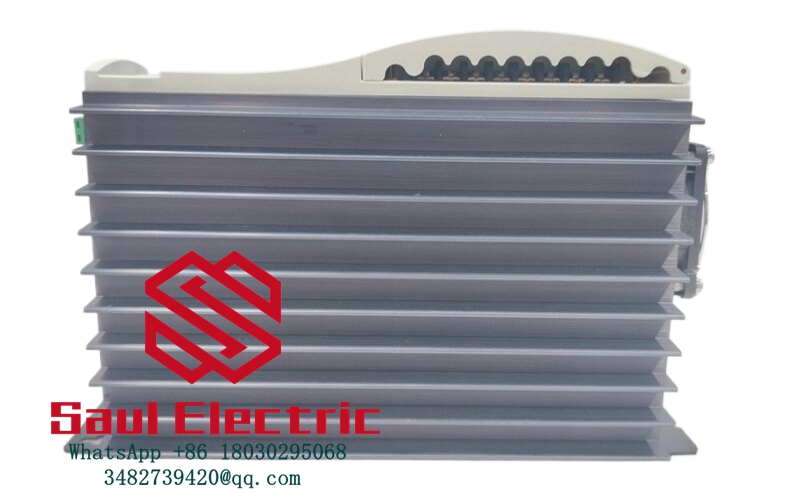

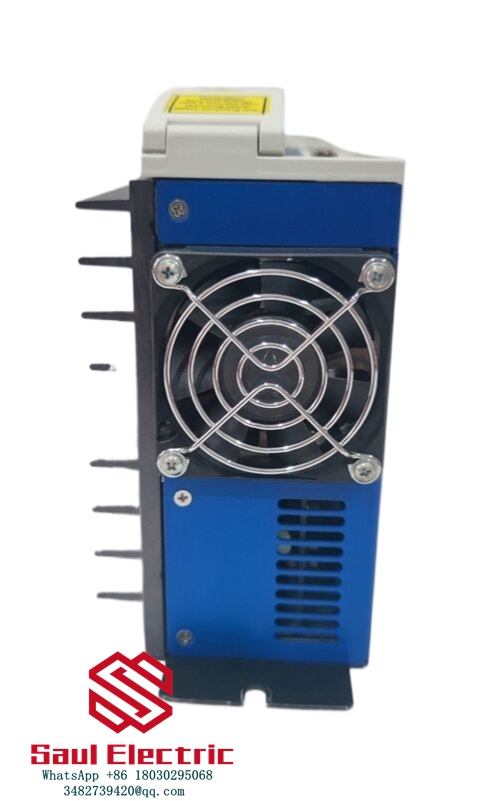

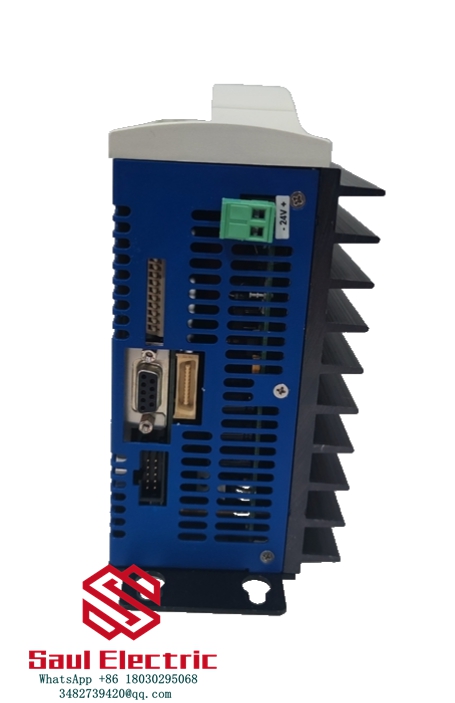

The Kollmorgen CB06560 PRD-B040SAIB-62 is a high-performance servo drive designed for precision motion control applications. As part of Kollmorgen’s renowned AKD series, this advanced drive delivers exceptional dynamic performance and positioning accuracy for demanding industrial automation systems.
Engineered with cutting-edge control algorithms, the CB06560 PRD-B040SAIB-62 provides seamless integration with various servo motors and industrial networks. Its compact design and robust construction make it ideal for installation in space-constrained control panels while maintaining reliable operation in harsh industrial environments.
Technical Specifications
Parameter Name Parameter Value
Model：CB06560 PRD-B040SAIB-62
Manufacturer：Kollmorgen
Type：Digital Servo
DriveRated Current40APeak Current120AInput Voltage200-480V ACControl ModeTorque/Velocity/PositionCommunicationEtherCAT, CANopenFeedbackEnDat 2.2, Hiperface DSLOperating Temperature0°C to +55°CStorage Temperature-40°C to +85°CDimensions150mm × 70mm × 200mmWeight2.1kgProtection ClassIP20
Main Features and Advantages:
The Kollmorgen CB06560 PRD-B040SAIB-62 delivers superior motion control performance with its advanced current loop technology and adaptive filtering. Its high-speed processing capabilities enable precise positioning with minimal settling time, making it ideal for high-throughput automation systems.
Network integration: The drive supports multiple industrial communication protocols including EtherCAT for real-time control applications. The CB06560 PRD-B040SAIB-62 also features comprehensive safety functions including STO (Safe Torque Off) and SS1 (Safe Stop 1) for enhanced machine safety.
Application Areas:
- Robotics: Articulated arm control
- Packaging: High-speed filling machines
- Metal Processing: CNC machine tools
- Printing: Web tension control
- Semiconductor: Precision wafer handling
Related Products:
- CB06561 PRD-B060SAIB-62: Higher current version (60A)
- CB06562 PRD-B020SAIB-62: Lower current version (20A)
- CB06563 PRD-B040SAIB-63: Advanced safety version
- CB06564 PRD-B040SAIB-64: Extended temperature range
- CB06565 PRD-B040SAIB-65: Multi-axis synchronization version
Installation and Maintenance:
Installation preparation: Verify proper power supply specifications and cooling requirements before installing the Kollmorgen CB06560 PRD-B040SAIB-62. Ensure adequate clearance for ventilation and proper grounding for EMI protection.
Maintenance recommendations: Perform annual firmware updates and visual inspections. The CB06560 PRD-B040SAIB-62 requires minimal maintenance but benefits from periodic cleaning of cooling fins and connector inspections.
Product Assurance:
Kollmorgen provides 12-month warranty coverage for the CB06560 PRD-B040SAIB-62. Each unit undergoes extensive factory testing to ensure reliable performance in industrial automation applications.
