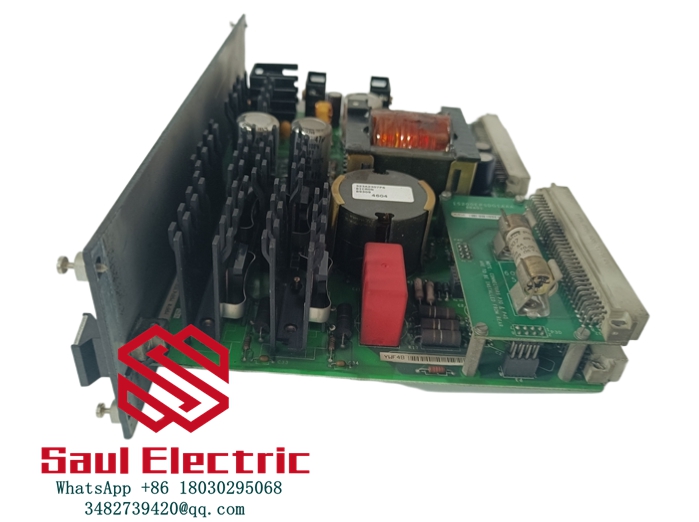

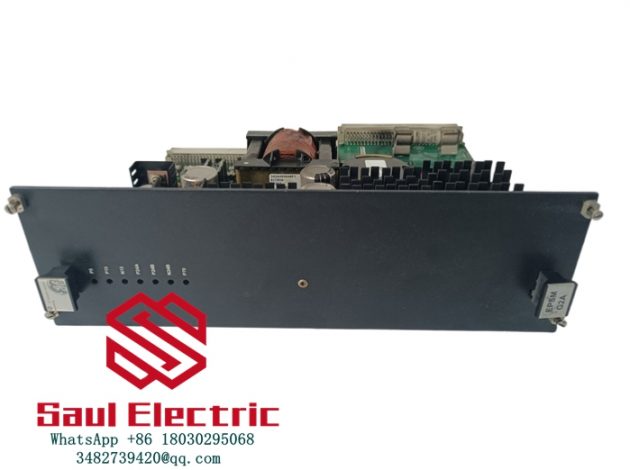

IS200EPSMG2A exciter power module EX2100 Excitation

IS200EPSMG2A exciter power module EX2100 Excitation

IS200EPSMG2A Application Control Layer Module is a product manufactured in the EX2100 excitation control series. It generates excitation current to control the AC terminal voltage and/or reactive volt-ampere of the generator. The IS200EPSMG2A is a thyristor excitation system suitable for newly installed and modified steam, gas and hydraulic turbines.

The exciter is a flexible modular system that can be assembled to provide a range of available output currents and several levels of system redundancy. These options include power sources from potential, composite or auxiliary power sources. Single or multiple Bridges, hot backup Bridges, and single or redundant controls can be used. The overview of the excitation system of the steam turbine generator is shown in the figure.

IS200EPSMG2A exciter power module EX2100 Excitation

EX2100 Excitation Control

The EX2100 hardware is contained in cabinets as follows:
• Control cabinet for the control, communication, and I/O modules
• Auxiliary cabinet for field flashing and protection circuits such as de-excitation and shaft voltage suppression
• Power conversion cabinet for the power SCR cells, cooling fans, dc contactors, and ac disconnect

EX2100 Characteristics Description

Power Converter Module (PCM)

Forcing requirements： 150% of design Amperes (EDA) for 30 sec at 40ºC (typical)

Power Sources

Power for the PCM – Voltage source：Auxiliary bus
Generator terminals
Compound source
600, 1000 or 1400 V ac versions (300 V ac for PMG source)
Power for the PCM – Frequency： 3-phase 50/60 Hz (up to 480 Hz for 42 mm PMG source)
Flashing power：Battery source 125 V dc or 250 V dc, with up to 200 A for at least 10 sec 240 or 480 V ac, 50/60 Hz single-phase auxiliary source
Control power：For two ac sources, or one ac and one dc source:
Nominal 120 or 220 V ac ±15%, with 1 DACA, 8 A rms max.
Battery source, 125 V dc, range 80 – 140 V dc, 6 A dc max

EX2100 Excitation Control

The control boards are located in the control module. This module consists of the exciter backplane (EBKP) and the metal chassis that holds the boards (refer to the figure Control Module (Redundant)). In simplex controls applications, an ESBP backplane is used (refer to the figure Control Module (Simplex)). The control boards are as follows:
• IS200DSPX Digital Signal Processor control board (DSPX)
• IS215ACLE Application Control Layer Module (ACLE or ACLA)
• IS200EISB Exciter ISBus Board (EISB)
• IS200EMIO Exciter Main I/O board (EMIO)
• IS200ESEL Exciter Selector board (ESEL)
• IS200EROC Exciter Regulator Options (EROC) (simplex only)

The exciter terminal boards are as follows:
• IS200EPCT Exciter PT/CT board (EPCT)
• IS200ECTB Exciter Contact Terminal Board (ECTB)
• IS200EXHS Exciter High Speed Board (EXHS)
• IS200EDCF Exciter Dc Feedback board (EDCF)
• IS200EACF Exciter Ac Feedback board (EACF)
