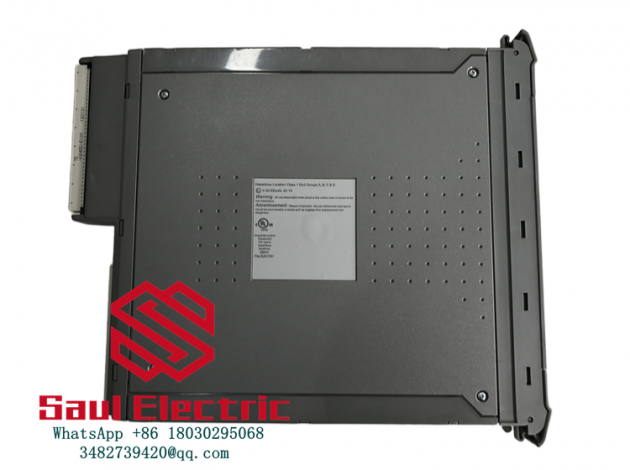

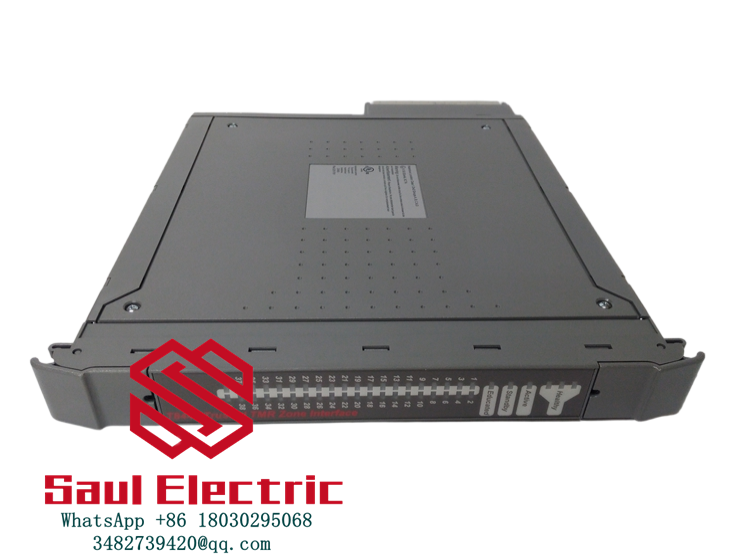

ICS Triplex T8448‌ area interface unit

The ‌ICS Triplex T8448‌ represents the pinnacle of triple modular redundancy (TMR) technology for critical industrial automation applications. As part of the trusted Tricon platform, this ‌T8448‌ module serves as a regional interface unit that provides robust signal conditioning and isolation between field devices and the main safety system. The ‌ICS Triplex T8448‌ features patented “TriVote” architecture that continuously compares three independent processing channels, automatically correcting any single-channel faults without process interruption. With its 24V DC intrinsically safe design, the module achieves SIL 3 certification according to IEC 61508 standards, making it indispensable for safety instrumented systems (SIS) in hazardous environments.

Technical Specifications

Key Features and Advantages:

The ‌ICS Triplex T8448‌ introduces revolutionary “Silent Channel” technology that detects and compensates for signal drift before it impacts system performance, achieving 99.9999% availability in continuous operation. Its galvanic isolation barriers withstand 2.5kV surges while maintaining <0.1% signal distortion across all 16 channels. The module’s patented heat dissipation design allows 50% higher power density than conventional interfaces without compromising reliability.

Unique diagnostic capabilities include real-time channel health monitoring with ±0.05% accuracy and predictive failure analysis that alerts maintenance teams 72+ hours before potential issues. The ‌T8448‌ supports hot-swap replacement during operation, with automatic channel synchronization that eliminates manual recalibration. For cybersecurity, it features hardware-based intrusion detection and encrypted firmware validation compliant with ISA/IEC 62443 standards.

Application Fields:

In oil & gas refineries, the ‌T8448‌ provides failsafe interfacing for emergency shutdown (ESD) systems, processing 500+ I/O points per cabinet with <1ms response time during critical events. Nuclear power plants utilize its radiation-hardened design (100kRad tolerance) for reactor protection systems, while pharmaceutical manufacturers benefit from the module’s USP Class VI certified materials in cleanroom environments.

The ‌ICS Triplex T8448‌ proves particularly valuable in offshore platforms where its corrosion-resistant aluminum housing (MIL-STD-810G) withstands salt spray exposure. Mining operations leverage its -40°C cold-start capability for conveyor safety systems, while the module’s vibration damping ensures reliable operation in compressor stations experiencing 15g transient shocks.

Installation and Maintenance:

Installation preparation: The ‌T8448‌ requires 10mm clearance on all sides for proper heat dissipation. Verify grounding resistance <1Ω before power-up using ICS Triplex’s GTS-200 tester kit.

Maintenance recommendations: Conduct quarterly infrared scans of terminal blocks using Triplex’s recommended thermal camera settings. For ‌T8448‌ modules in high-vibration areas, retorque all field wiring connections every 6 months to 0.6Nm±5%. Perform full diagnostic scans during annual turnaround using Triconex DiagTool software.
