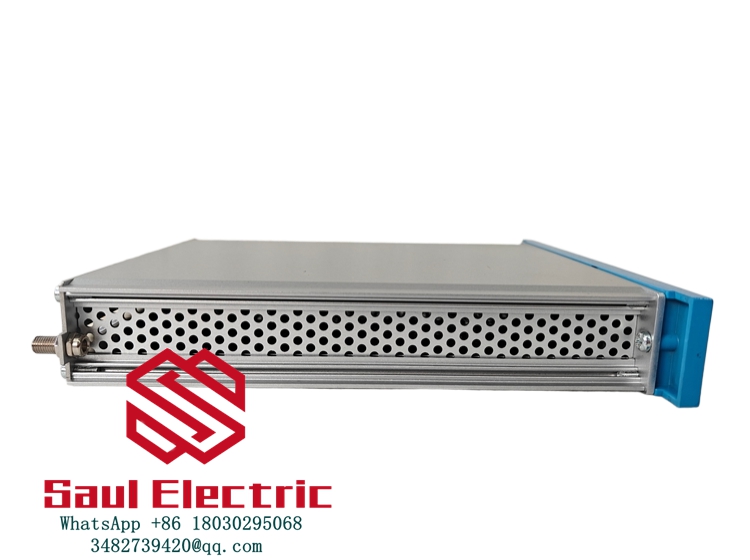

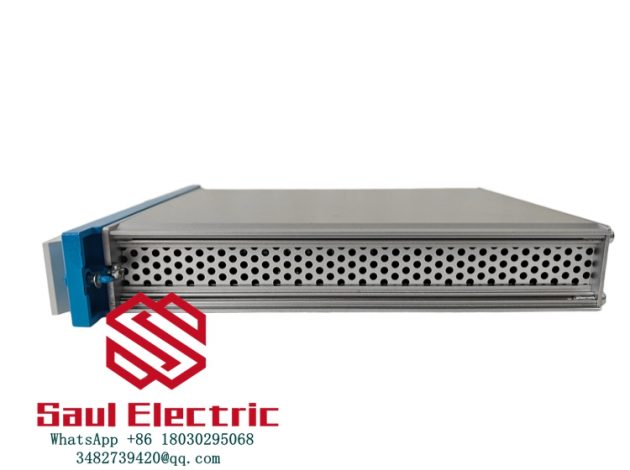

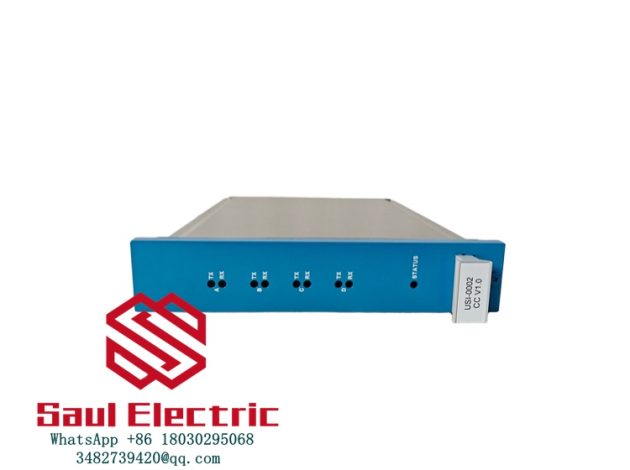

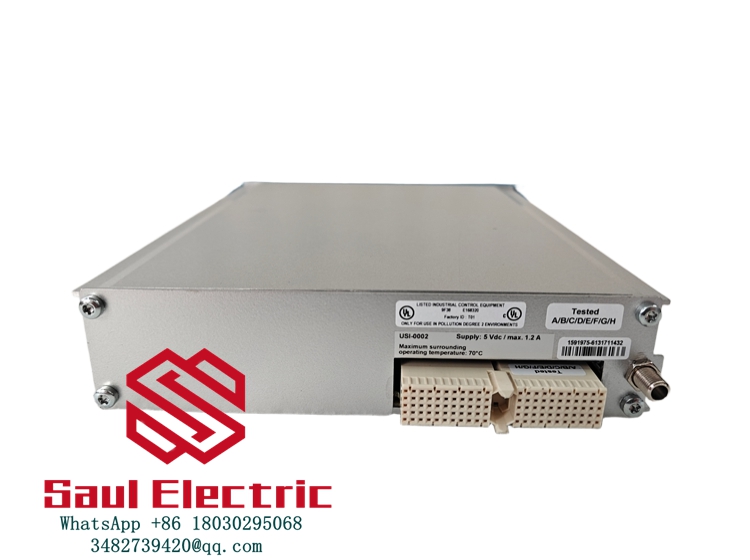

The Honeywell FC-USI-0002 is a state-of-the-art universal safety interface module designed for critical industrial automation systems, providing robust signal conditioning and isolation between safety controllers and field devices. As part of Honeywell’s Safety Manager series, this versatile module serves as a crucial component in safety instrumented systems (SIS), ensuring reliable signal transmission in hazardous environments.
With its advanced galvanic isolation technology, the FC-USI-0002 supports multiple I/O types including analog signals, discrete inputs, and HART communication, making it ideal for complex safety applications in oil & gas and chemical processing plants. Its rugged construction meets stringent industry standards for shock, vibration, and electromagnetic interference, guaranteeing stable operation in demanding conditions.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | FC-USI-0002 |
| Manufacturer | Honeywell |
| Type | Universal Safety Interface Module |
| Input Channels | 8 (configurable) |
| Output Channels | 8 (configurable) |
| Isolation Voltage | 2500V AC |
| Signal Types | 4-20mA, 0-10V, DI, HART |
| Accuracy | ±0.1% FS |
| Response Time | <10ms |
| Power Supply | 24V DC ±20% |
| Operating Temperature | -40°C to +70°C |
| Dimensions | 150mm × 100mm × 45mm |
| Weight | 1.0kg |
| Certifications | SIL 3, ATEX, IECEx |
Key Features and Advantages:
Safety compliance: The FC-USI-0002 incorporates triple-redundant signal processing paths and automatic fault detection, meeting SIL 3 safety requirements for critical shutdown applications. Its patented isolation technology prevents ground loops and eliminates signal interference between channels.
Configuration flexibility: Featuring software-configurable I/O types and ranges, the module simplifies system integration and reduces inventory complexity. The hot-swappable design enables maintenance without system shutdown, minimizing production losses.
Application Areas:
- Oil & Gas: Emergency shutdown system interfaces
- Chemical Processing: Safety interlock signal conditioning
- Power Generation: Turbine protection system integration
- Pharmaceutical: Barrier isolation for classified areas
Related Products:
- FC-USI-0001: Basic version with 4 channels
- FC-PSU-240516 Power Supply Unit 24/5 Vdc, 16 A
- FS-BKM-0001 Battery and Key switch Module
- FS-BLIND-COM Dummy communication module
- HONEYWELL CC-IP0101 Experion Series-C I/O module
Installation and Maintenance:
Installation preparation: Verify proper grounding and cable routing before installing the FC-USI-0002. Maintain minimum 30mm clearance around the module for adequate heat dissipation and accessibility.
Maintenance recommendations: Perform annual diagnostic tests using Honeywell’s Safety Manager software. Regularly inspect terminal connections and monitor module health indicators via system diagnostics.
Product Assurance:
Honeywell provides 12-month extended warranty for the FC-USI-0002, including 24/7 technical support and on-site service options. Each module undergoes 1000-hour burn-in testing and full functional validation before shipment.
