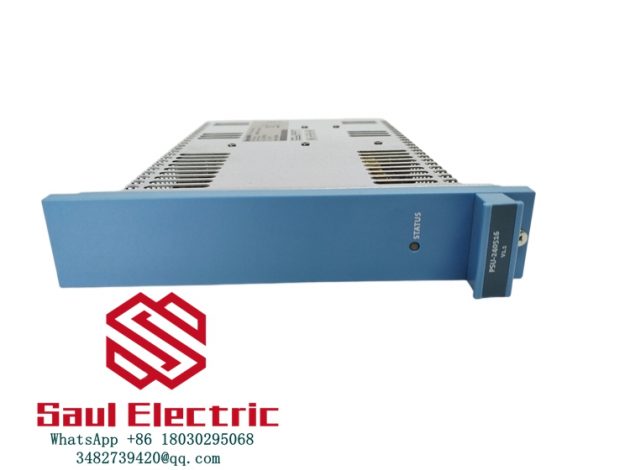

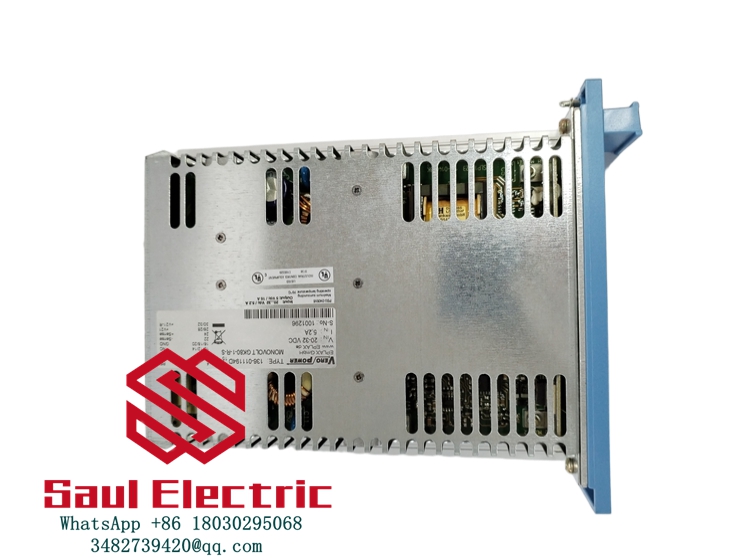

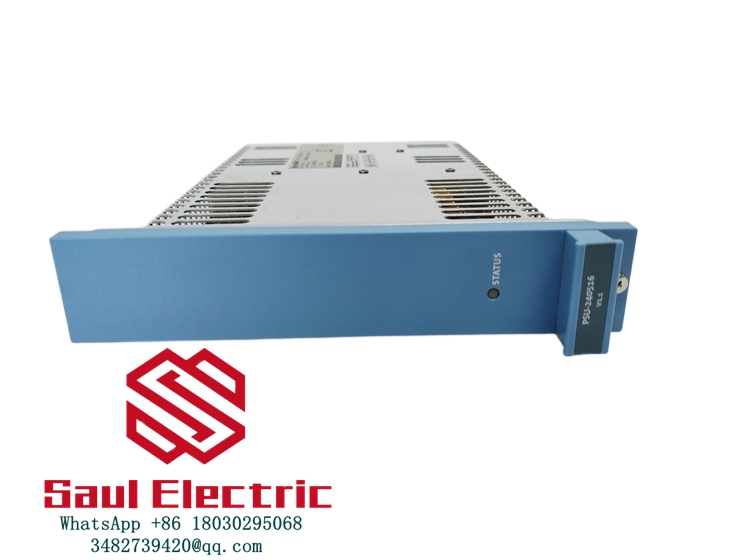

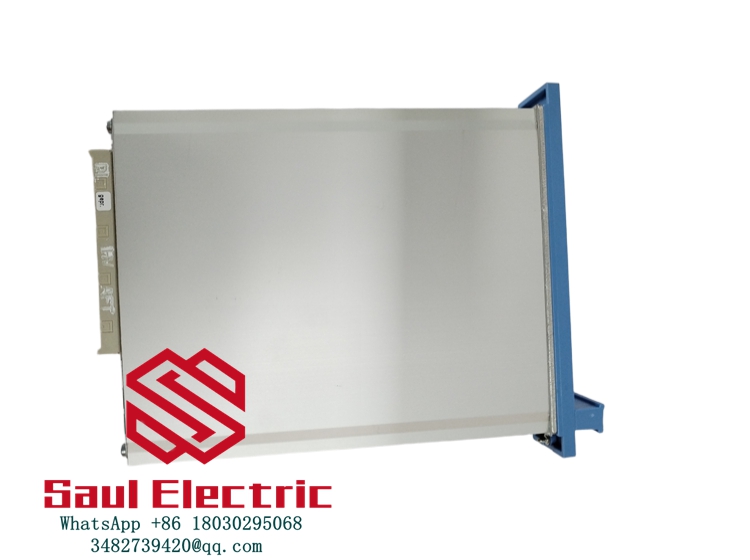

The Honeywell FC-PSU-240516 is a high-performance power supply unit designed for industrial automation systems, delivering reliable 24V/5V DC power with 16A output capacity. As part of Honeywell’s Field Control series, this rugged power module serves as the backbone for distributed control systems (DCS) and programmable logic controllers (PLC), ensuring stable power distribution in harsh industrial environments.
With its advanced switching technology, the FC-PSU-240516 provides clean, regulated power to critical control components while maintaining high efficiency across varying load conditions. Its modular design allows seamless integration with Honeywell’s Experion PKS and Safety Manager platforms, making it ideal for both process automation and safety instrumented systems.
Technical Specifications
Parameter NameParameter ValueModelFC-PSU-240516ManufacturerHoneywellTypePower Supply Unit 24V/5V DC, 16AInput Voltage100-240V AC, 50/60HzOutput Voltage24V DC ±1%, 5V DC ±1%Output Current16A continuousPower Factor≥0.95Efficiency92% typicalRipple & Noise<50mV p-pProtectionsOverload, Overvoltage, Short-circuitOperating Temperature-40°C to +70°CDimensions200mm × 120mm × 60mmWeight2.5kgCertificationsUL 508, CE, IEC 61010
Key Features and Advantages:
Power reliability: The FC-PSU-240516 incorporates active power factor correction and wide input voltage range, ensuring stable operation even with unstable mains power. Its industrial-grade components guarantee 100,000+ hours MTBF for continuous operation.
System integration: Featuring DIN rail mounting and pluggable terminals, the module simplifies installation while reducing wiring complexity. The intelligent thermal management maintains optimal operating temperature without forced cooling.
Application Areas:
- Oil & Gas: Power distribution for offshore platform control systems
- Chemical Processing: Critical power supply for safety shutdown systems
- Power Generation: Backup power for turbine control panels
- Manufacturing: Machine automation power solutions
Related Products:
- FC-PSU-240524: Higher capacity 24V/24A version
- FC-PSM-1000: Redundant power supply module
- FC-DPM-2000: Distributed power management unit
- FC-BBU-3000: Battery backup unit
- FC-MNT-4000: Wall mounting kit
- FC-SDI-1624 Safe digital input module (24 Vdc, 16 channels)
- FC-SAI-0410 Safe analog input module (4 channels）
Installation and Maintenance:
Installation preparation: Verify electrical panel space and ventilation before installing the FC-PSU-240516. Ensure proper cable sizing and maintain minimum 75mm clearance for heat dissipation.
Maintenance recommendations: Perform annual thermal imaging checks on power terminals. Clean ventilation openings quarterly and monitor output voltage stability using built-in indicators.
Product Assurance:
Honeywell provides 12-month extended warranty for the FC-PSU-240516, including advance replacement service and 24/7 technical support. Each unit undergoes 1000-hour burn-in testing and full performance validation before shipment.
