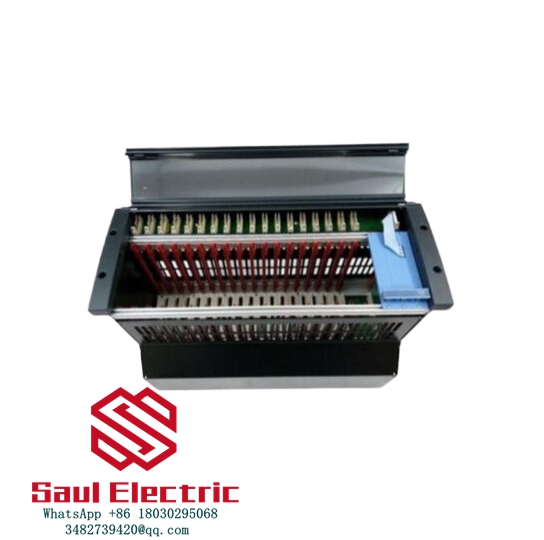

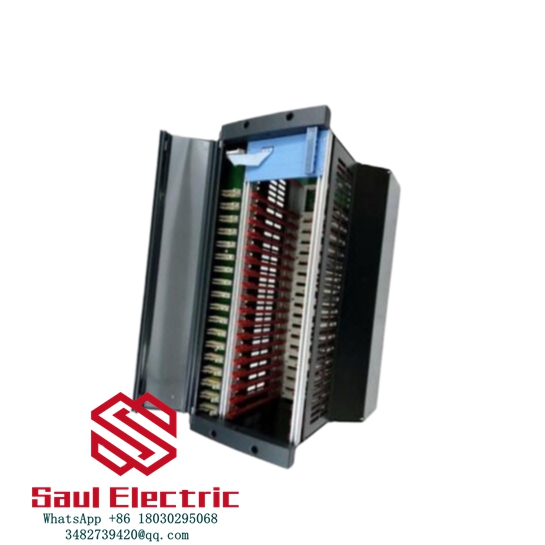

Honeywell FC-IOCHA-0001S non-redundant I/O module chassis

Honeywell FC-IOCHAS-0001S is a high-performance non-redundant I/O module chassis designed for Honeywell’s Experion PKS (Process Knowledge System) automation platform, serving as a critical hardware foundation for integrating discrete and analog I/O modules in industrial control systems. Engineered to deliver reliable connectivity and signal distribution, Honeywell FC-IOCHAS-0001S provides a standardized, compact housing that simplifies the deployment of I/O modules while ensuring seamless communication with Honeywell’s controllers and DCS systems.

As a core component in modular automation architectures, Honeywell FC-IOCHAS-0001S supports a wide range of I/O module types—including digital input/output, analog input/output, and specialty modules—enabling customization to meet specific application requirements. Its robust design, optimized for industrial environments, ensures stable operation even in harsh conditions, while its compatibility with Honeywell’s control ecosystem enhances system scalability and flexibility. Whether used in new installations or system expansions, Honeywell FC-IOCHAS-0001S delivers cost-effective I/O integration, positioning it as a trusted solution for process and manufacturing automation.

Modular flexibility: Honeywell FC-IOCHAS-0001S features 8 standard I/O module slots, supporting a mix of digital, analog, and specialty I/O modules to accommodate diverse signal types and application needs. This modular design allows users to scale I/O capacity incrementally, adding modules only as required, which reduces upfront investment and enables future expansion without system overhauls.

Seamless integration: Optimized for Honeywell’s Experion PKS platform, Honeywell FC-IOCHAS-0001S ensures plug-and-play compatibility with C200/C300/C500 controllers and Honeywell’s I/O module lineup. The 1 Gbps Ethernet backplane enables high-speed data transfer between modules and controllers, minimizing latency and ensuring real-time responsiveness in critical control loops.

Robust industrial design: Built to withstand harsh industrial environments, Honeywell FC-IOCHAS-0001S operates reliably within a temperature range of 0°C to 60°C and offers IP20 protection against dust and debris. The redundant power input support (24 VDC) enhances availability by providing backup power in case of a primary power source failure, reducing the risk of unexpected downtime.

Space-efficient and easy to deploy: With a 2U rack-mount design, Honeywell FC-IOCHAS-0001S maximizes rack space utilization, making it ideal for control rooms with limited space. The chassis features tool-less module insertion and secure latching mechanisms, simplifying installation and replacement of I/O modules, while clear labeling of slots and terminals streamlines wiring and troubleshooting.

Cost-effective non-redundant solution: Tailored for applications where full redundancy is not required, Honeywell FC-IOCHAS-0001S delivers reliable performance at a competitive price point, making it suitable for cost-sensitive projects without compromising on quality or functionality.

Honeywell FC-IOCHAS-0001S is widely utilized across process and manufacturing industries where modular, cost-effective I/O integration is essential. In the oil and gas sector, it is deployed in upstream production facilities, midstream pipelines, and downstream refineries to connect field sensors, valves, and actuators to Honeywell’s DCS, enabling precise monitoring and control of processes such as crude oil distillation, gas processing, and pipeline pressure regulation.

In the chemical and petrochemical industry, Honeywell FC-IOCHAS-0001S supports I/O integration for batch processing, continuous mixing, and safety systems, ensuring reliable data transfer between field devices and control systems to maintain process consistency and compliance with safety standards. It is also used in pharmaceutical manufacturing, where it facilitates the integration of I/O modules for monitoring temperature, pressure, and flow in sterile production environments, adhering to strict regulatory requirements.

The food and beverage industry benefits from Honeywell FC-IOCHAS-0001S in processing plants, where it connects I/O modules for ingredient mixing, pasteurization, and packaging lines, enabling efficient production control and quality assurance. Additionally, it is deployed in water and wastewater treatment facilities, power generation plants, and manufacturing plants (automotive, electronics) to support diverse I/O integration needs, from simple digital signaling to complex analog measurements. Its compatibility with Honeywell’s Experion PKS platform makes Honeywell FC-IOCHAS-0001S a versatile choice for both new projects and retrofits, adapting to varying scale and complexity requirements.

Installation preparation: Before installing Honeywell FC-IOCHAS-0001S, verify that the 19-inch rack has sufficient 2U space and is properly grounded to meet safety standards. Confirm the power supply voltage (24 VDC) matches the chassis requirements and ensure the installation environment is free from excessive moisture, dust, or temperature extremes. Familiarize yourself with the chassis slot numbering and terminal assignments, and prepare compatible I/O modules and wiring tools to ensure secure connections.

Mounting and configuration: Secure Honeywell FC-IOCHAS-0001S in the rack using the provided mounting brackets and screws, ensuring a stable fit to prevent vibration-related issues. Insert I/O modules into the desired slots until they latch securely, and connect the 24VDC power supply to the redundant power inputs for enhanced reliability. Establish communication with the Honeywell controller via the backplane or Ethernet port, and use Honeywell’s Configuration Studio software to assign module addresses and configure I/O parameters.

Maintenance recommendations: Perform quarterly visual inspections of Honeywell FC-IOCHAS-0001S to check for loose module connections, dust accumulation, or signs of overheating. Clean the chassis vents periodically to maintain proper airflow and prevent component overheating. Verify power supply stability and check for error codes via the controller interface or chassis status LEDs. When replacing modules, power down the chassis or use hot-swap compatible modules (if supported) to avoid system disruption. Keep firmware updated via Honeywell’s software tools to ensure compatibility with new I/O modules and access performance improvements.
