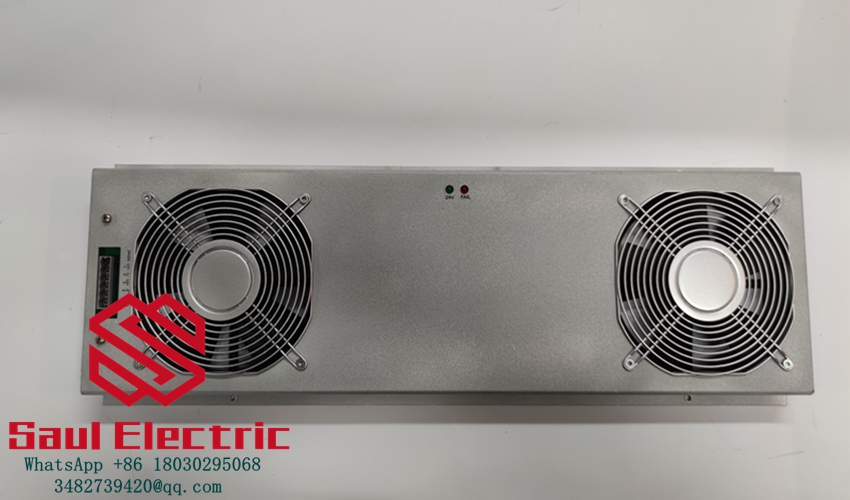

The HIMA K9202 is a high-performance integrated cabinet cooling fan designed specifically for safety-critical control systems in hazardous environments. As part of HIMA’s thermal management solutions, this ruggedized fan module ensures optimal operating temperatures for SIL3-certified safety controllers in the HIMax series. The K9202 features intelligent speed control with ±5% RPM accuracy, automatically adjusting airflow based on real-time cabinet temperature monitoring.
Engineered for continuous operation in demanding industrial settings, the K9202 maintains positive pressure in explosion-proof enclosures (Ex d IIB T4 certified) while consuming only 18W at full load. Its vibration-dampened design reduces acoustic noise to <35dB, making it suitable for noise-sensitive control rooms.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | K9202 |
| Manufacturer | HIMA |
| Type | Integrated Cabinet Fan |
| Airflow | 120 CFM (max) |
| Speed Control | PWM (10-100%) |
| Power Consumption | 18W (max) |
| Voltage Range | 24VDC ±15% |
| Noise Level | <35dB(A) |
| Bearing Type | Dual Ball (60,000h MTBF) |
| Protection Rating | IP54 |
| Operating Temp | -20°C to +70°C |
| Housing Material | Aluminum (anodized) |
| Dimensions | 120×120×38mm |
| Weight | 850g |
| Certifications | ATEX, IECEx, SIL3 |
Key Features and Advantages:
Intelligent thermal management: The K9202’s embedded PID algorithm maintains cabinet temperature within ±1°C of setpoint, preventing component degradation. Its tachometer output provides real-time RPM monitoring for predictive maintenance.
Safety compliance: Explosion-proof construction meets ATEX/IECEx standards for Zone 1 hazardous areas. The brushless DC motor eliminates spark risk in petrochemical applications.
Durability: Military-grade bearings withstand 5G vibration (IEC 60068-2-6), ensuring reliability in offshore platforms. The corrosion-resistant housing survives salt spray tests per ISO 9227.
Application Areas:
- Oil & Gas: SIL3 safety systems in refinery process areas.
- Chemical: Batch reactor control cabinets.
- Power: Turbine emergency shutdown systems.
- Mining: Underground conveyor safety controls.
In pharmaceutical plants, the K9202’s stainless steel variants meet GMP cleanroom requirements.
Related Products:

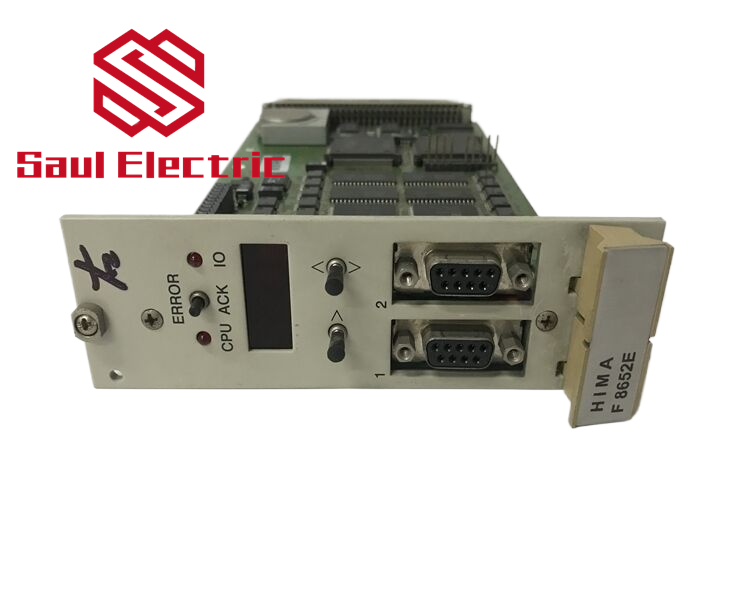

- HIMA F8652X Controller unit module 984865265
- HIMA F3236 16-channel digital module
- HIMA F6217 8-channel analog input module
- HIMa CPU controller Unit F8650X F8651X 984865165 F8652X processor module
- HIMA X-AI3201 985210213 Safety controller module丨HIMax
Installation and Maintenance:
Installation preparation: Verify cabinet cutout dimensions (115×115mm ±0.5mm) before mounting K9202 in vertical orientation. Maintain 50mm clearance from adjacent components for optimal airflow.
Maintenance recommendations: Clean intake grilles quarterly using low-pressure air (<1 bar). Lubricate bearings every 20,000 operating hours with HIMA-approved grease (P/N: GR-9202-01).
Product Assurance:
HIMA provides 12-month warranty with 10-year spare parts availability for K9202 fan modules. Each unit undergoes 500-hour burn-in testing including thermal cycling (-30°C to +80°C). Global service centers offer 48-hour replacement guarantee for critical failures.
