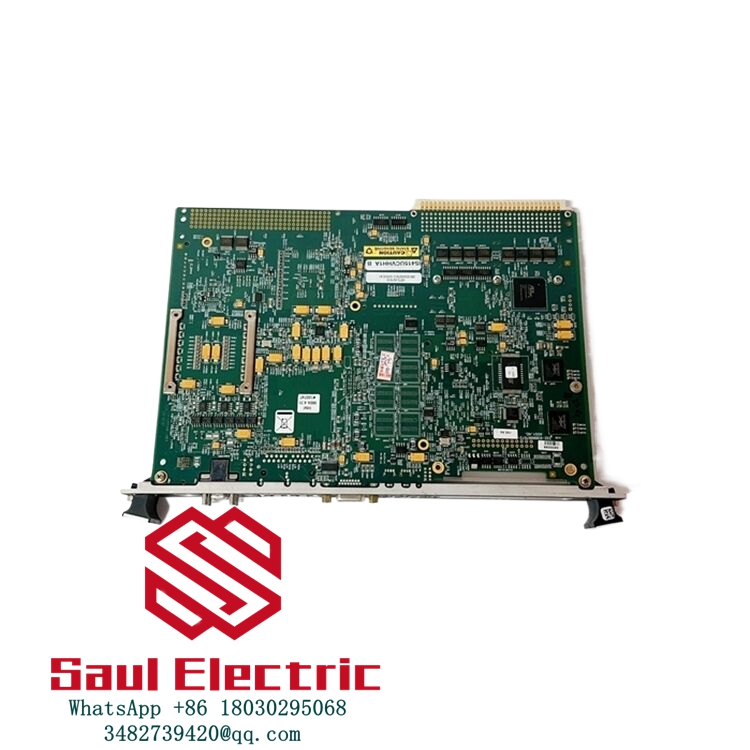

The GE IS215UCVHM06A is a high-performance gas turbine control card designed for critical power generation applications. As part of GE’s Mark VIe series, this control module serves as the brain of gas turbine control systems, providing precise regulation of combustion parameters and turbine operations. The IS215UCVHM06A combines advanced processing capabilities with rugged industrial design, making it suitable for both base load and peaking power plants.
Engineered for reliability, the GE IS215UCVHM06A features triple modular redundancy (TMR) architecture and supports high-speed communication protocols. Its compact design allows flexible installation in turbine control cabinets while maintaining the high durability standards expected from GE’s industrial components.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | IS215UCVHM06A |
| Manufacturer | General Electric |
| Product Type | Gas Turbine Control Card |
| Processor Type | 32-bit industrial grade |
| Clock Speed | 1.2 GHz |
| Memory | 1GB DDR3 |
| Communication Protocols | Ethernet/IP, PROFIBUS DP |
| I/O Capacity | Up to 128 channels |
| Power Supply | 24V DC ±5% |
| Power Consumption | 25W (max) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 150mm × 100mm × 35mm |
| Weight | 1.2kg |
| Protection Rating | IP40 |
Main Features and Advantages:
The GE IS215UCVHM06A delivers exceptional control performance with its advanced processing architecture, capable of handling multiple control loops simultaneously without latency. Its TMR design ensures fault-tolerant operation, critical for uninterrupted power generation.
Safety features: The card includes comprehensive self-diagnostics and failsafe mechanisms, automatically switching to backup systems in case of faults. The IS215UCVHM06A also features advanced thermal management and vibration-resistant components for reliable operation in harsh power plant environments.
Application Areas:
- Power Generation: Gas turbine control systems6
- Oil & Gas: Compressor station control
- Combined Cycle Plants: Integrated turbine control
- District Heating: Cogeneration systems
- Industrial Power: On-site generation facilities
Related Products:
- IS215UCVHM06B: Enhanced version with additional I/O capacity
- IS215UCVHM07A: Next-generation control card
- IS200ERBHG1A: Redundancy module
- IC693ALG392: Analog input module
- DS200DCFBG1B: Communication interface board
Installation and Maintenance:
Installation preparation: Verify proper ESD precautions and environmental conditions before installing the GE IS215UCVHM06A. Ensure adequate clearance for ventilation and proper cable management for optimal performance.
Maintenance recommendations: Perform regular firmware updates and periodic visual inspections. The IS215UCVHM06A requires minimal maintenance but benefits from annual preventive maintenance checks to ensure long-term reliability.
Product Assurance:
GE provides a standard 12-month warranty for the IS215UCVHM06A. Each unit undergoes extensive testing to ensure reliable operation in power generation applications.
