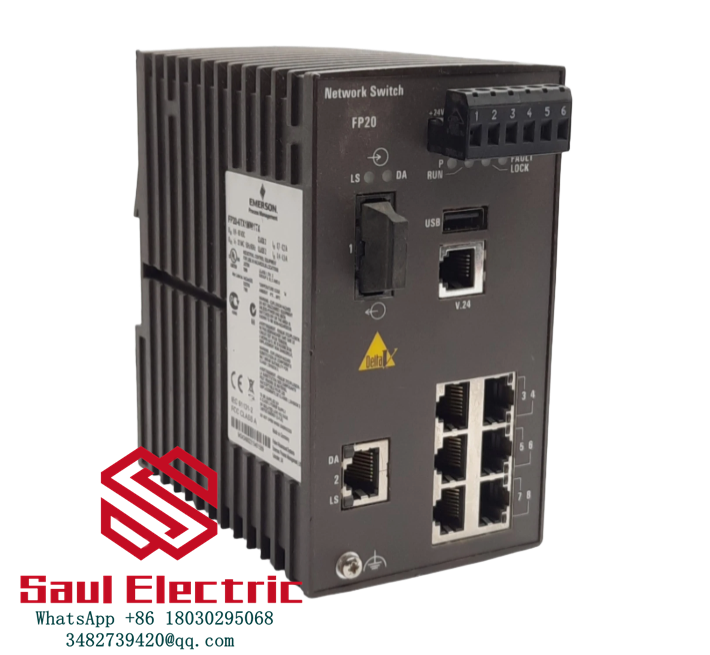

DeltaV 8-port intelligent switch VE6071F01C1
The VE6071F01C1 new DeltaV Network “Smart” switches are the next generation in the use of commercial off-the-shelf (COTS) components in control systems. Called “purpose-built”commercial components, these switches combine the lower cost of off-the-shelf components with DeltaV specific software and features to make them more integrated and plug-and-play in the DeltaV Area Control Network (ACN) and other DeltaV networks external to the ACN.
DeltaV Smart Switches require no configuration to function in the DeltaV networks. Accessing the advanced features takes only minor configuration that is easy to perform using the DeltaV Network Device Command Center to ensure all smart switches on the network are configured consistently and securely you can’t incorrectly configure any switching functions that impact the performance of the DeltaV system.
Characteristics：
New and Improved HW and SW platform with more focus on Security and improved performance
Completely managed by DeltaV™ systems
Network alerts and diagnostics automatically reported to DeltaV workstations
Can be installed on the network between the DeltaV workstations and the Emerson Smart Firewall (DeltaV 2.5 network)
Plug-and-play installation
Auto security lockdown
A full line of Industrial Rated Fanless Switches
Fully supported by Emerson
The DeltaV network “smart” switch is a Fast-Ethernet and Gigabit ethernet Layer 2 network switching device. The switch is available in two variations.

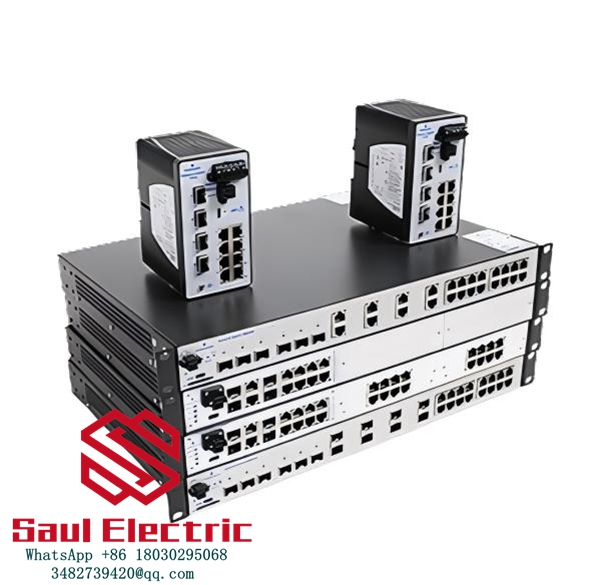

The VE6072, VE6073, VE6075 and VE6076 DeltaV Smart Switches: 19” rack-mountable 10 or 26 port modular switch with wired and fiber connections and 30 fixed port gigabit switch (all ports in the VE6075 and VE6076 switch are gigabit).

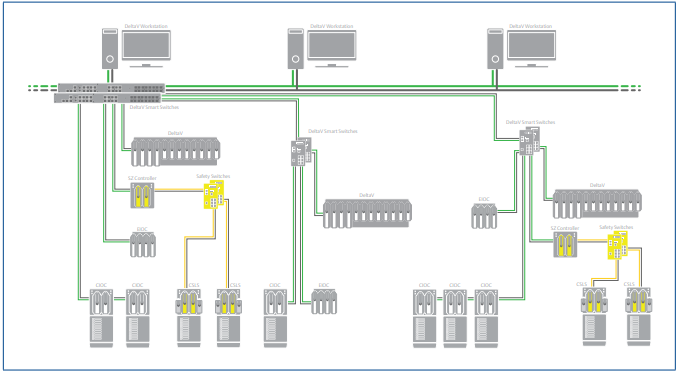

Typical Network Examples using DeltaV Smart Switches：
General Specifications for the VE6071 DeltaV Smart Switches
Power Requirements：
Operating Voltage: 24V – 48V DC, 24 V AC
Power Consumption: 6 W – 9 W (depending on the model)
Mechanical Construction
Dimensions (W x H x D): 73 x 138 x 115 mm (2.87 x 5.43 x 4.52 in)
Mounting: DIN Rail
Weight: 420 g – 570g – depending on the model
Protection Class: IP30
General Specifications for the VE6072, VE6073 DeltaV Smart Switches
Power Requirements
Operating Voltage: 100 – 240V AC, 47 – 63 Hz
Power Consumption: 7.2 W – 11.3 W (Depending on the model)
Mechanical Construction
Dimensions (W x H x D): 448 x 44 x 310 mm (17.64 x 1.73 x 12.20 in) – without mounting bracket
Mounting: 19” control cabinet
Weight: 3.60 – 3.85 kg (depending on the model)
Protection Class: IP20
