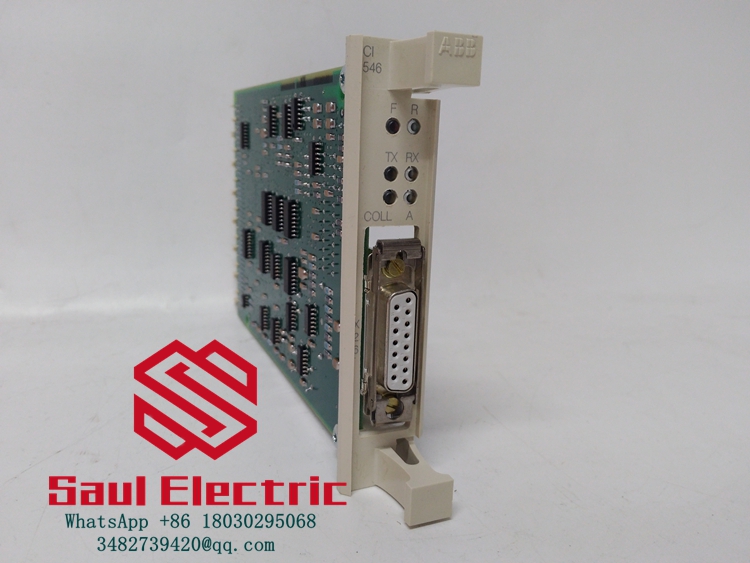

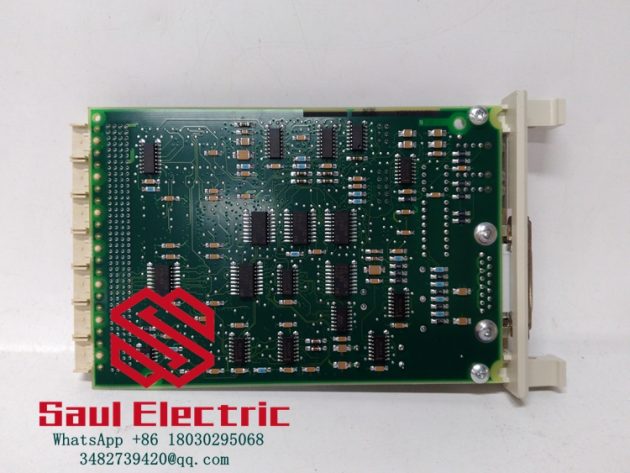

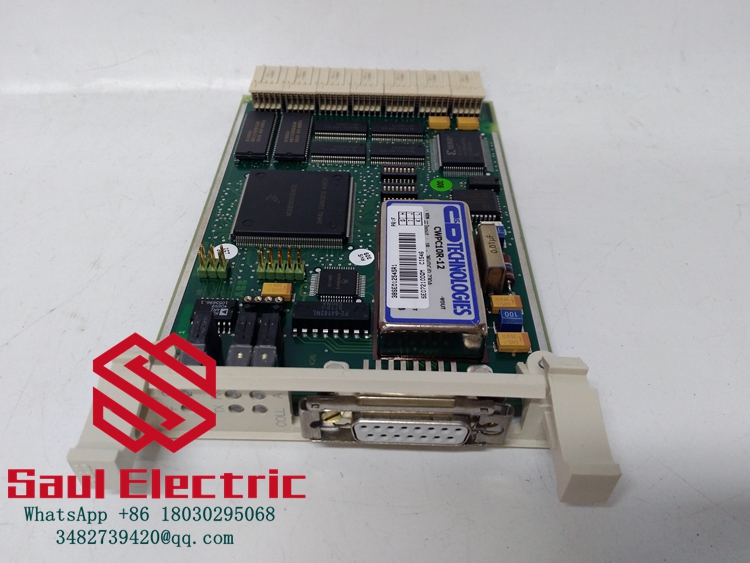

The ABB CI546 3BSE012545R1 is a high-performance VIP communication interface module designed for industrial automation systems. As part of ABB’s advanced control system components, the CI546 3BSE012545R1 provides reliable data exchange between field devices and control systems using the VIP protocol. The CI546 3BSE012545R1 features robust construction and advanced protocol handling capabilities, making it ideal for mission-critical process control applications. With its modular design and flexible configuration options, the CI546 3BSE012545R1 serves as a vital communication hub in distributed control architectures.
Technical Specifications
Product Model | CI546 3BSE012545R1
Manufacturer | ABB
Product Type | VIP Communication Interface Module
Protocol Support | VIP (Versatile Interface Protocol)
Data Transfer Rate | 10Mbps maximum
Operating Voltage | 24VDC ±10%
Power Consumption | 8W typical
Isolation Voltage | 2000V AC
Operating Temperature | -20°C to +70°C
Humidity Range | 5% to 95% non-condensing
Dimensions | 130mm × 90mm × 45mm
Weight | 0.6kg
Protection Class | IP20
MTBF | 100,000 hours
Key Features and Advantages
The ABB CI546 3BSE012545R1 delivers exceptional communication performance with its dual-channel architecture and advanced error detection capabilities. Its galvanic isolation ensures reliable operation in electrically noisy environments, while the built-in diagnostic LEDs provide real-time status monitoring. The CI546 3BSE012545R1 supports automatic baud rate detection and protocol conversion, simplifying system integration. Its compact form factor allows for space-efficient installation in control cabinets, and the module’s firmware is field-upgradable for future compatibility.
Application Fields
The ABB CI546 3BSE012545R1 is extensively used in industrial automation networks requiring reliable fieldbus communication. In power generation plants, it facilitates communication between turbines and DCS systems. Oil refineries utilize this module for process control and safety system integration. The CI546 3BSE012545R1 also serves critical functions in water treatment facilities and chemical processing plants where robust communication is essential.
