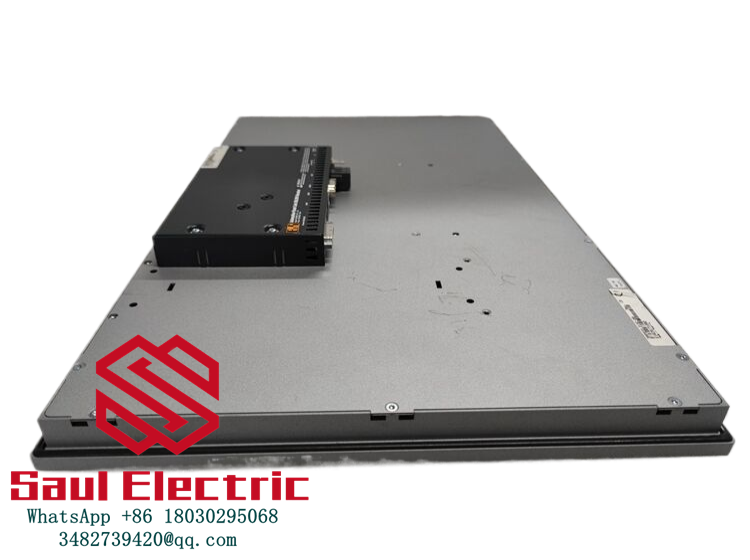

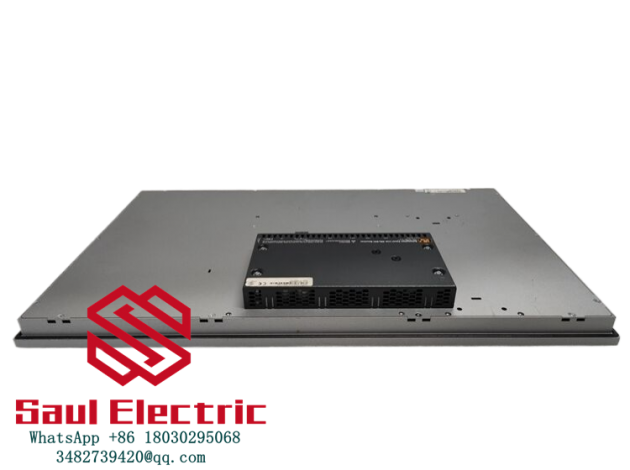

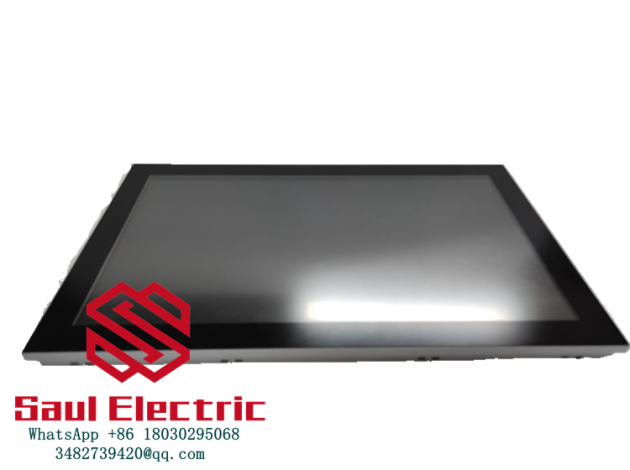

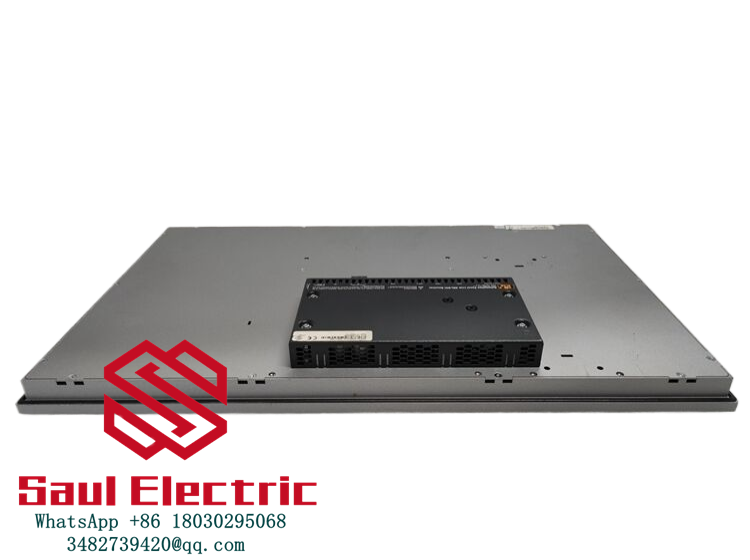

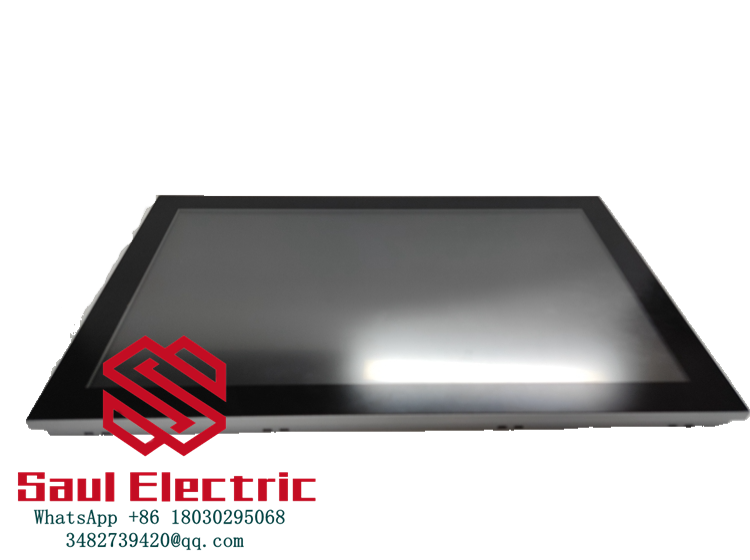

The B&R 5AP933.215C-00 represents a cutting-edge industrial automation panel PC designed for mission-critical process visualization and control in modern manufacturing environments. As part of B&R’s PanelWare 900 series, this 21.5″ full HD TFT display delivers 1920×1080 resolution with projective capacitive multi-touch technology, engineered for precision control in pharmaceutical cleanroom applications. The 5AP933.215C-00 integrates a quad-core Intel® Celeron processor with 8GB DDR4 RAM, enabling real-time visualization of SCADA systems and DCS process variables with 5ms refresh rates
Featuring IP66-rated front panel protection, this HMI solution withstands high-pressure washdowns in food & beverage production lines while maintaining 1000:1 contrast ratio under 10,000 lux ambient light conditions. The B&R 5AP933.215C-00 supports Powerlink and OPC UA communication protocols, serving as the centralized control hub for modular packaging machinery with <50μs cycle time synchronization
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | 5AP933.215C-00 |
| Manufacturer | B&R Automation (ABB Group) |
| Display Type | 21.5″ TFT LED Backlit |
| Resolution | 1920 x 1080 (16:9) |
| Touch Technology | Projected Capacitive (10-point) |
| Processor | Intel® Celeron J1900 Quad-core 2.0GHz |
| Memory | 8GB DDR3L RAM (Expandable) |
| Storage | 128GB SSD (SATA III) |
| Protection Class | IP66 Front / IP20 Rear |
| Brightness | 400 cd/m² |
| Operating Temp | -20°C to +60°C |
| Interfaces | 2x GbE, 4x USB 3.0, 2x COM |
| Power Supply | 24VDC ±10% (18-32VDC) |
| Certifications | UL Class I Div 2, CE, RoHS |
Key Features and Advantages:
Advanced visualization: The 5AP933.215C-00 delivers 178° wide viewing angle with anti-glare coating, crucial for monitoring bottling line operations from multiple angles. Its 10-point multi-touch supports glove operation (2mm thickness) in cold storage facilities.
Industrial durability: Aluminum die-cast chassis with vibration resistance up to 5g (10-150Hz) ensures reliability in metal stamping press environments. The optically bonded display eliminates air gaps, preventing condensation in high-humidity paper mill control rooms.
Seamless integration: Native support for Automation Studio Runtime enables direct connection to B&R X20 PLCs without protocol conversion. Integrated web server allows remote diagnostics via HTML5 browsers, reducing downtime in automotive weld shops.
Application Areas:
The 5AP933.215C-00 excels in:
- Pharma: Aseptic filling line monitoring
- Energy: Gas turbine control room visualization
- Automotive: Robotic assembly cell supervision
- Food: CIP system parameter tracking
In chemical batch processing plants, its 4ms gray-to-gray response time eliminates ghosting during rapid recipe changes. The panel’s 24/7 continuous operation capability makes it ideal for glass furnace temperature monitoring systems.
Related Products:
- 5AP933.130C-00: 13″ Compact version for mobile carts
- 5AC933.215C-01: Sunlight-readable variant
- X20CP1586: Matching PLC controller
- 8V1010.00-1: Industrial mounting arm
- B&R/贝加莱 X20CP1586 I/O processor Intel Atom 1.6 GHz processor
- APC620-0001-10: Protective film kit
- PanelWare 700: Cost-effective 15″ model
Installation and Maintenance:
Installation preparation: Conduct ground continuity verification (≤0.1Ω) before mounting the 5AP933.215C-00 in explosive atmosphere zones. Ensure minimum 100mm clearance for ventilation in enclosed control cabinets.
Maintenance recommendations: Perform quarterly capacitive touch recalibration using BRCalTool software. Clean screen surface weekly with 70% isopropyl alcohol in pharmaceutical cleanrooms. Replace SSD every 5 years under continuous data logging conditions.
Product Assurance:
B&R provides 12-month extended warranty with optional 24/7 premium support package. Each 5AP933.215C-00 undergoes 144-hour burn-in testing including 50 thermal cycles (-30°C to +70°C). Global service network guarantees 4-hour emergency response for critical process industries
