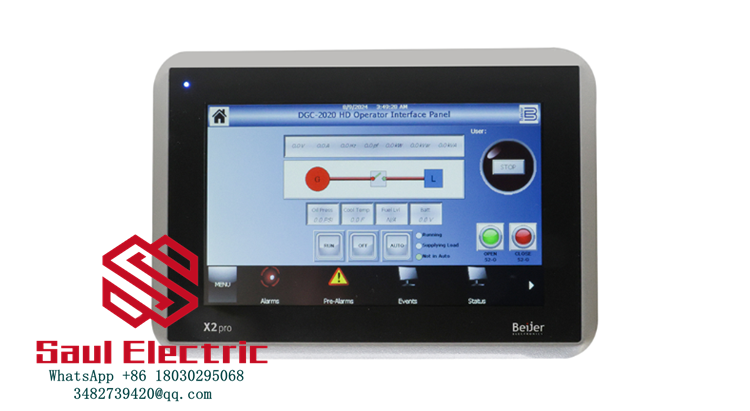

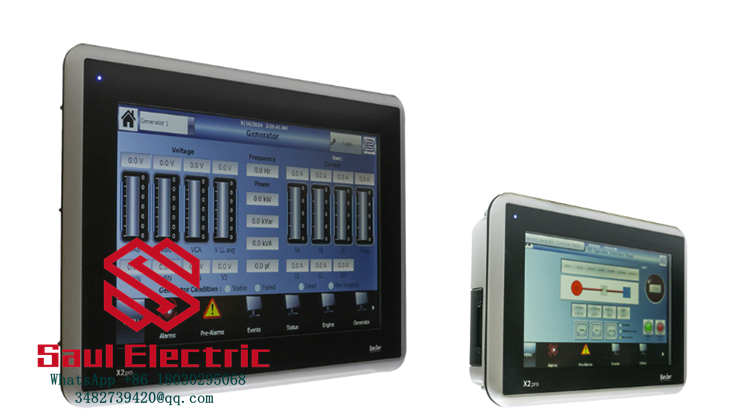

Basler Electric IDP-2020 Interactive Display Panel

The Basler Electric IDP-2020 revolutionizes industrial human-machine interaction with its 20.1-inch multi-touch capacitive display featuring 2560×1440 QHD resolution. Designed for mission-critical control rooms, this IP66-rated panel combines sunlight-readable performance (1000 nits) with glove-compatible touch technology, enabling reliable operation in harsh environments. The IDP-2020 integrates Basler’s proprietary “Dynamic Interface Optimization” that automatically adjusts UI elements based on operator proximity (detected via integrated ToF sensor).

As the flagship of Basler’s Industrial Display Series, the IDP-2020 supports simultaneous multi-protocol communication including OPC UA, MODBUS TCP, and PROFINET with ≤2ms refresh rates. Its magnesium alloy chassis with conductive cooling achieves -30°C to +70°C operational range without active cooling fans. The Basler Electric IDP-2020 uniquely incorporates hardware-accelerated 4K video decoding for surveillance system integration, making it ideal for hybrid SCADA/security applications.

Technical Specifications

Product Model | IDP-2020
Manufacturer | Basler Electric
Product Type | Industrial Interactive Display Panel

Key Features and Advantages:

The IDP-2020 introduces “Context-Aware Touch” technology that intelligently adjusts touch sensitivity based on environmental conditions (humidity, temperature, glove thickness). Its “Always-On” display maintains critical data visibility during power fluctuations with built-in supercapacitors providing 30-second backup. The panel’s “Secure Boot Pro” feature implements hardware-rooted trust with TPM 2.0 and encrypted storage meeting NIST SP 800-193 standards.

Industrial durability: The IDP-2020 withstands 50G shock and 5G vibration while its chemically strengthened glass resists scratches from metal tools. The proprietary “ClearView” optical bonding eliminates air gaps between layers, reducing internal condensation in high-humidity environments. Maintenance teams benefit from tool-less modular design allowing <3-minute replacement of I/O modules. The display’s 100,000-hour MTBF ensures decade-long operation in 24/7 applications.

Application Fields:

In oil refineries, the IDP-2020 serves as central control interface for distributed control systems, with its sunlight-readable display and glove-compatible operation enabling reliable use in outdoor process areas. Pharmaceutical manufacturers utilize its IP66 rating for washdown compatibility while the antimicrobial glass surface meets FDA CFR 21 Part 11 requirements.

Smart grid operators deploy the Basler Electric IDP-2020 for substation automation, where its multi-protocol support integrates legacy RTUs with modern IEC 61850 systems. The panel’s -30°C cold-start capability ensures reliability in Arctic wind farms, while the 4K video decoding allows simultaneous monitoring of security cameras and SCADA data. Food processing plants value the display’s resistance to grease and high-pressure cleaning.

Installation and Maintenance:

Installation preparation: The IDP-2020 requires vibration-isolated mounting (≤7G @ 10-500Hz) using provided stainless steel fasteners. Ensure proper heat dissipation with minimum 100mm clearance and implement shielded Ethernet cabling (CAT6A recommended) for noise immunity in electrically noisy environments.

Maintenance recommendations: Perform quarterly capacitive touch recalibration using Basler’s IDP-Cal utility. Clean the display surface monthly with isopropyl alcohol (70% concentration) and lint-free wipes. The panel’s predictive maintenance system provides 60-day advance notice for backlight replacement (100,000-hour rated life). Always verify digital signatures before firmware updates.
