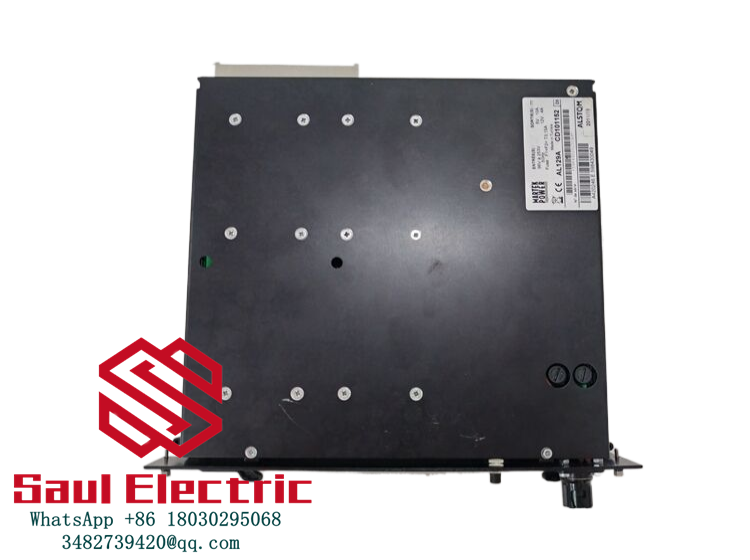

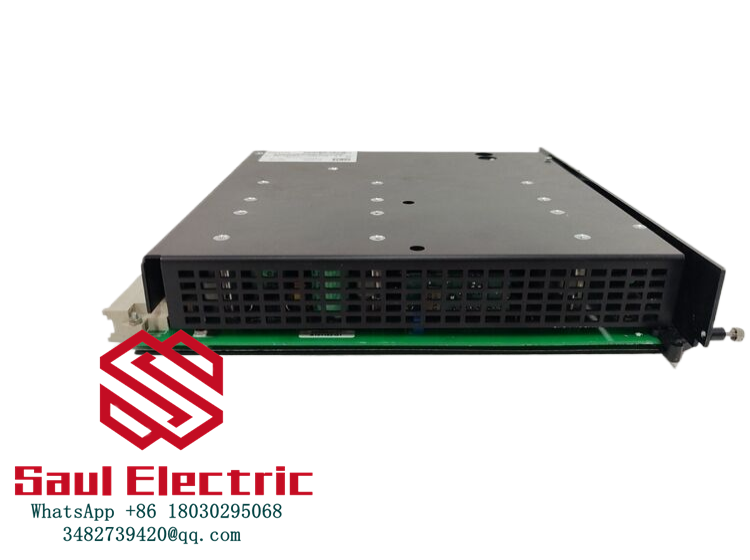

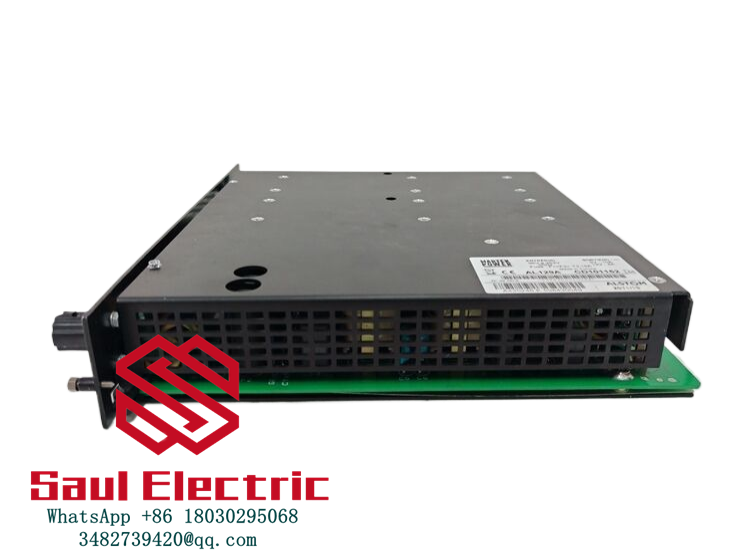

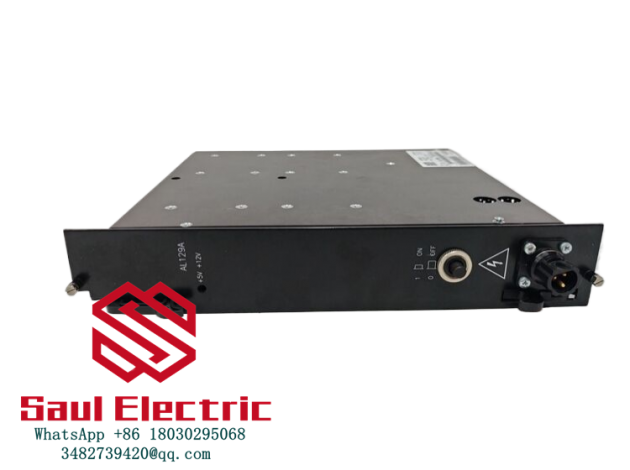

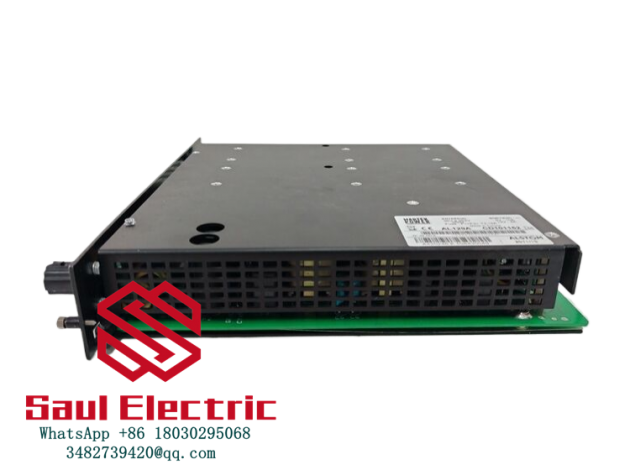

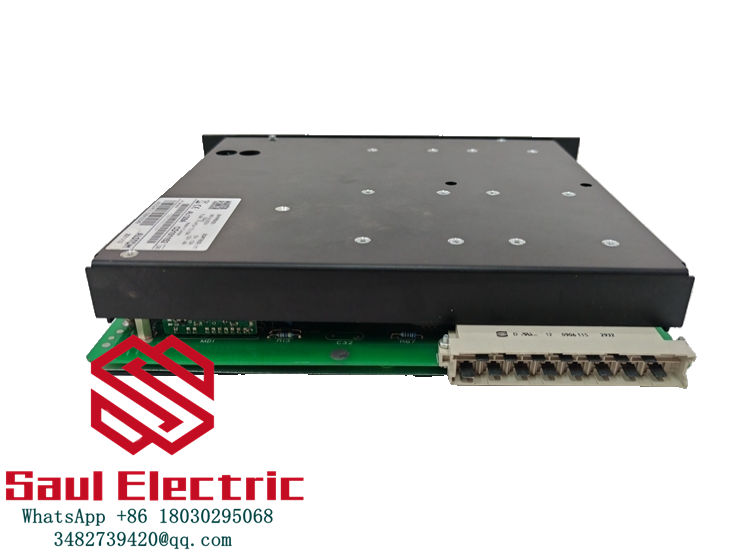

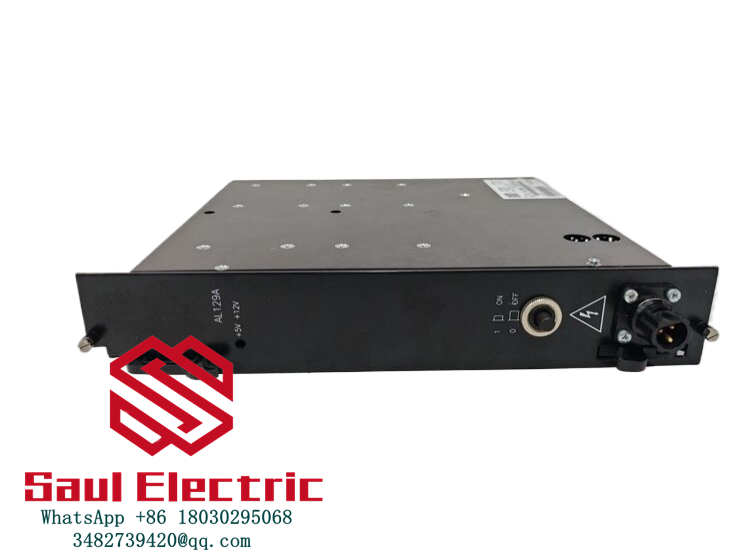

The ALSTOMA AL129A is a high-efficiency industrial power supply module designed for critical automation systems requiring stable DC power distribution. As part of ALSTOMA’s Guardian Series, this 24VDC output module delivers 10A continuous current with 94% conversion efficiency, making it ideal for PLC control cabinets and motor drive systems. The AL129A features active power factor correction (PFC >0.98) to meet EN 61000-3-2 standards in manufacturing facilities.
With its integrated DIN rail mounting design, the ALSTOMA AL129A provides surge protection up to 4kV for sensitive instrumentation in oil & gas installations. The module’s wide input voltage range (85-264VAC) ensures reliable operation in regions with unstable grid power. Built-in over-temperature shutdown (threshold: 85°C±5%) protects chemical plant DCS systems from thermal overload.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Product Model | AL129A |
| Manufacturer | ALSTOMA |
| Product Type | Industrial Power Supply Module |
| Input Voltage | 85-264VAC (47-63Hz) |
| Output Voltage | 24VDC ±1% |
| Rated Current | 10A (240W) |
| Efficiency | 94% (typical at full load) |
| Protection Features | Overload/Short-circuit/Over-voltage |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 125×60×115mm |
| Weight | 0.9kg |
| Certifications | CE, UL 508, RoHS |
Key Features and Advantages:
Energy optimization: The AL129A achieves Class VI efficiency with <0.5W no-load consumption, reducing energy costs in 24/7 production lines. Its harmonic current emission (THD <10%) complies with strict data center power quality requirements.
Robust protection: Triple-stage input filtering (X/Y capacitors + common mode choke) suppresses 100kHz-1GHz EMI in welding robot cells. Output current limiting with auto-recovery (2-5 cycles) prevents downtime in packaging machinery.
Smart monitoring: LED status indicators display power good/fault conditions through polycarbonate window. Optional PM-BUS communication enables remote health monitoring via MODBUS RTU in water treatment plants.
Application Areas:
The ALSTOMA AL129A is deployed in:
- Automotive Manufacturing: Welding robot controller power
- Renewable Energy: Solar inverter control circuits
- Food Processing: CIP system valve actuators
- Material Handling: Conveyor motor starters
In semiconductor cleanrooms, its EN 61204-3 compliance ensures ripple voltage <1% for precision measurement devices. The module’s 3000m altitude rating supports operation in hydroelectric power stations. IP20 protection prevents conductive dust ingress in cement plant control panels.
Related Products:
- AL130B: 15A output version with active cooling
- AL125X: 5A compact model for space-constrained panels
- ALSTOM MITRAC DCU Drive control Unit 3EST125-975 DCC2382A
- ALSTOM POS1846 TRVC062333000 CP00000310 Vehicle control module
- ALSTOM STO1726KO1 Safety Torque Off (STO) module
- ALSTOM VOOB8-B 12004-106-04 8-channel digital output module
- GE 151X1235BC01SA01 RXi Ethernet switch for industrial networks
Installation and Maintenance:
Installation preparation: Verify input voltage matches local grid specifications before connecting AL129A. Use 14-16AWG copper wire for high-current applications in CNC machine tool cabinets. Ensure minimum 50mm clearance above/below module for airflow.
Maintenance recommendations: Clean ventilation slots quarterly using dry compressed air (<3bar) in textile mill environments. Perform annual thermal imaging checks on terminal connections. Replace electrolytic capacitors after 50,000 operating hours in high-humidity coastal facilities.
Product Assurance:
ALSTOMA guarantees 12-month warranty for AL129A, including free technical support through GlobalCare service network. Each unit undergoes 72-hour burn-in test with cyclic load variations (10-100%). Our certified technicians provide on-site service within 48 hours for critical infrastructure customers.
