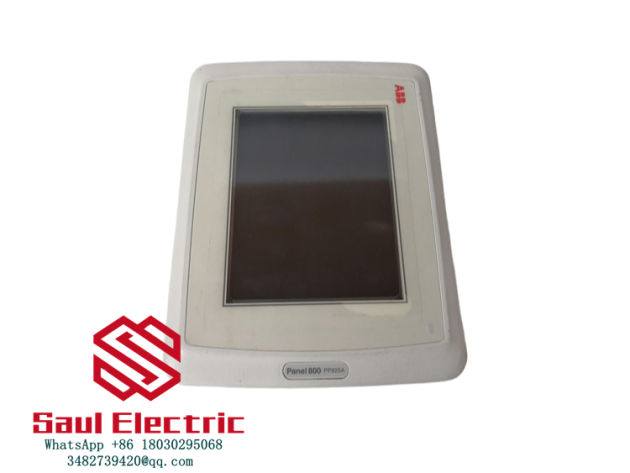

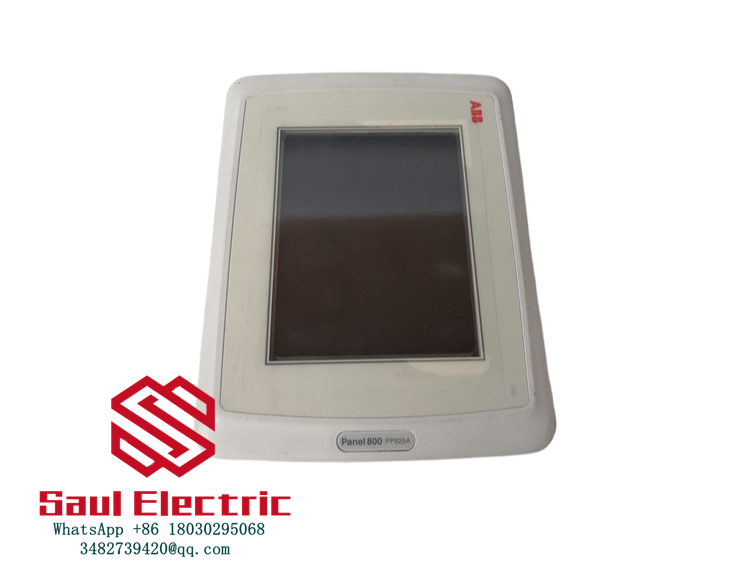

The ABB PP825A 3BSE042240R3 is a high-performance 5.7-inch touchscreen panel from ABB’s Panel 800 series, designed for industrial human-machine interface (HMI) applications. This robust operator panel provides intuitive visualization and control capabilities for monitoring and managing automation processes. The PP825A 3BSE042240R3 serves as a critical interface point between operators and control systems, featuring sunlight-readable display and resistive touch technology suitable for harsh industrial environments.
As part of ABB’s comprehensive automation portfolio, the PP825A 3BSE042240R3 supports multiple communication protocols including PROFIBUS DP and Ethernet, enabling seamless integration with various PLC and DCS systems. Its compact yet durable design makes it ideal for space-constrained installations while maintaining ABB’s high standards for industrial equipment reliability.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | PP825A 3BSE042240R3 |
| Manufacturer | ABB |
| Product Type | Panel 800 Series HMI |
| Display Size | 5.7″ TFT LCD |
| Resolution | 320×240 pixels |
| Touch Technology | Resistive |
| Brightness | 250 cd/m² |
| Viewing Angle | 160° horizontal/vertical |
| Processor | 32-bit RISC |
| Memory | 64MB Flash, 32MB RAM |
| Communication Ports | 1×PROFIBUS DP, 1×Ethernet |
| Power Supply | 24V DC ±10% |
| Power Consumption | 15W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP65 front panel |
| Dimensions | 185mm × 145mm × 55mm |
| Weight | 1.2kg |
Main Features and Advantages:
The ABB PP825A 3BSE042240R3 delivers exceptional operational reliability with its industrial-grade components and robust construction. Its sunlight-readable display ensures clear visibility in various lighting conditions, while the resistive touchscreen supports operation with gloves, making it suitable for industrial environments.
Advanced connectivity: The panel features both PROFIBUS DP and Ethernet interfaces, enabling flexible integration with different control systems. The PP825A 3BSE042240R3 also includes comprehensive alarm management capabilities and historical data logging functions for process monitoring and troubleshooting.
Application Areas:
- Manufacturing: Production line monitoring and control
- Power Generation: Turbine control interfaces
- Oil & Gas: Process visualization systems
- Water Treatment: SCADA system operator panels
- Building Automation: HVAC control interfaces
Related Products:
- 3.5″ touchscreen, TFT 320*280 pixels, picture and character, color PP815 3BSE042239R1
- 10.4″ Function key panel, TFT 800*600 pixels, picture and characters, color PP846 3BSE042238R1

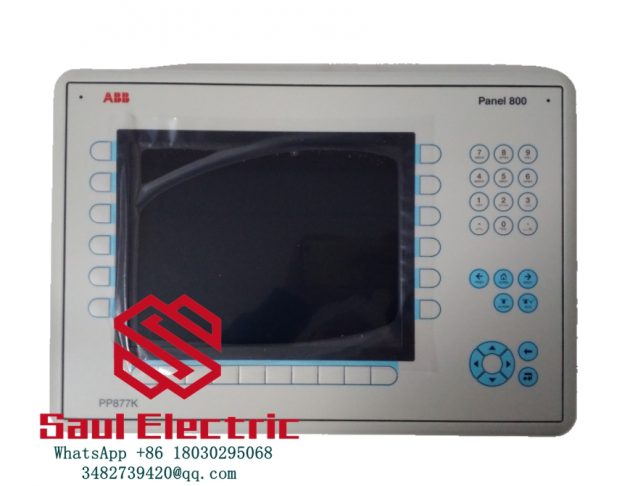

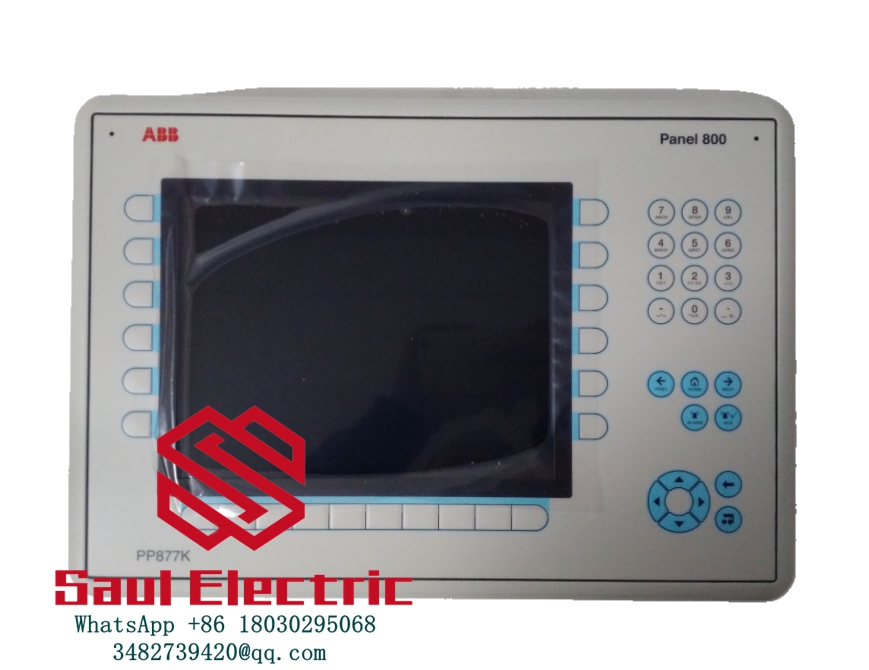

- PP887H Rugged high-brightness 15″ touch screen 3BSE092986R1
- 6.5″ function key panel, TFT 640*480 pixels, picture and characters, color PP836 3BSE042237R1
- PP874, 10.4″ touchscreen TFT 640*480(16:9) 3BSE069272R1
Installation and Maintenance:
Installation preparation: Verify proper mounting location and panel orientation before installing the ABB PP825A 3BSE042240R3. Ensure adequate clearance for cable connections and proper ventilation for optimal performance.
Maintenance recommendations: Clean the touchscreen regularly with appropriate cleaning solutions. The PP825A 3BSE042240R3 requires minimal maintenance but benefits from periodic firmware updates to maintain optimal functionality.
Product Assurance:
ABB provides a standard 12-month warranty for the PP825A 3BSE042240R3. Each unit undergoes rigorous testing to ensure reliable operation in industrial automation applications.
There are no reviews yet.
