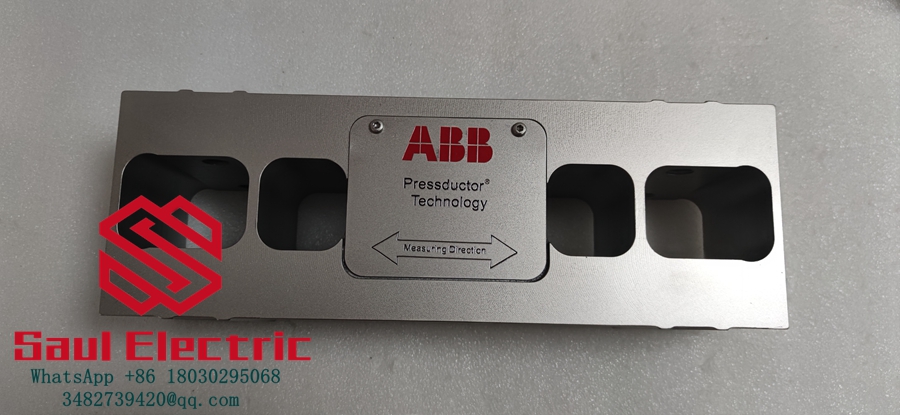

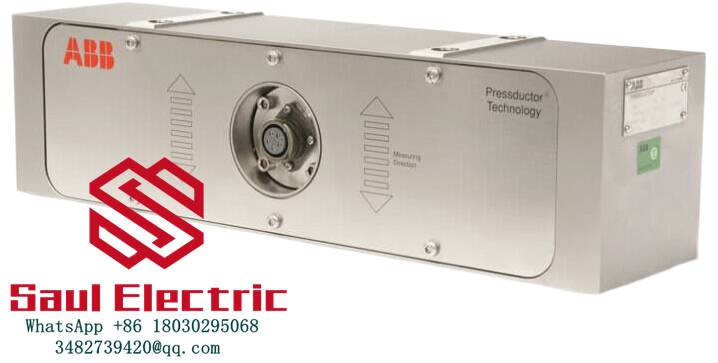

The ABB PFTL101B 5.0KN 3BSE004191R1 is a high-precision pillow block load cell designed for industrial tension measurement applications. As part of ABB’s Force Measurement series, this robust transducer provides accurate force measurement up to 5.0KN with 0.1% linearity for continuous process monitoring. The PFTL101B features stainless steel construction with IP67 protection, making it suitable for harsh industrial environments.
Engineered for reliability, the PFTL101B 5.0KN 3BSE004191R1 variant incorporates temperature-compensated strain gauges with <0.01%/°C thermal drift. Its compact design enables direct integration into conveyor systems, roller presses, and web tension control applications.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | PFTL101B 5.0KN 3BSE004191R1 |
| Manufacturer | ABB |
| Type | Pillow Block Load Cell |
| Capacity | 5.0KN |
| Accuracy | ±0.1% FS |
| Nonlinearity | <0.1% FS |
| Output | 2mV/V (standard) |
| Excitation Voltage | 10VDC (max) |
| Protection Class | IP67 |
| Material | Stainless Steel (17-4PH) |
| Operating Temp | -20°C to +80°C |
| Humidity | 0-95% non-condensing |
| Dimensions | 120×80×40mm |
| Weight | 1.2kg |
| Certifications | CE, RoHS |
Key Features and Advantages:
Measurement precision: The PFTL101B achieves 0.01% repeatability through laser-trimmed strain gauges and advanced signal conditioning. Its symmetrical design eliminates side load interference.
Durability: Hardened stainless steel construction withstands 150% overload capacity without permanent deformation. Sealed connectors prevent moisture ingress in washdown environments.
Installation flexibility: Dual mounting holes accommodate both horizontal and vertical force measurement configurations. Integrated alignment pins simplify mechanical setup.
Application Areas:
- Paper Manufacturing: Web tension control
- Steel Processing: Roller pressure monitoring
- Packaging: Film stretch regulation
- Textile: Yarn tension measurement
In printing presses, the 3BSE004191R1 ensures consistent ink transfer through precise nip pressure control.
Related Products:
- Acid proof type PFTL 201BER-20.0KN 3BSE023161R1 Pillow block tensiometer
- PFTL 101B-20.0KN 3BSE004203R1 For applications with low tension, heavy roll and high running speed
- ABB丨PFTL 101AER-0.5KN 3BSE023010R1 Manufactured on piezomagnetic principle
- ABB PFEA113-65 3BSE050092R65 Tension control module
- ABB PFVO 142 3BSE023732R1 Signal conditioning module
- PFRL101C-2.0kN 3BSE002964R002 Radial force measurement unit
Installation and Maintenance:
Installation preparation: Clean mounting surfaces to <3.2μm roughness before installing PFTL101B. Verify parallel alignment within 0.5° using provided shims.
Maintenance recommendations: Perform quarterly zero-balance verification with no load applied. Inspect cables annually for abrasion damage in high-flex applications.
Product Assurance:
ABB provides 12-month warranty with traceable calibration certificates for 3BSE004191R1 load cells48. Each unit undergoes 500,000 cycle fatigue testing before shipment.
