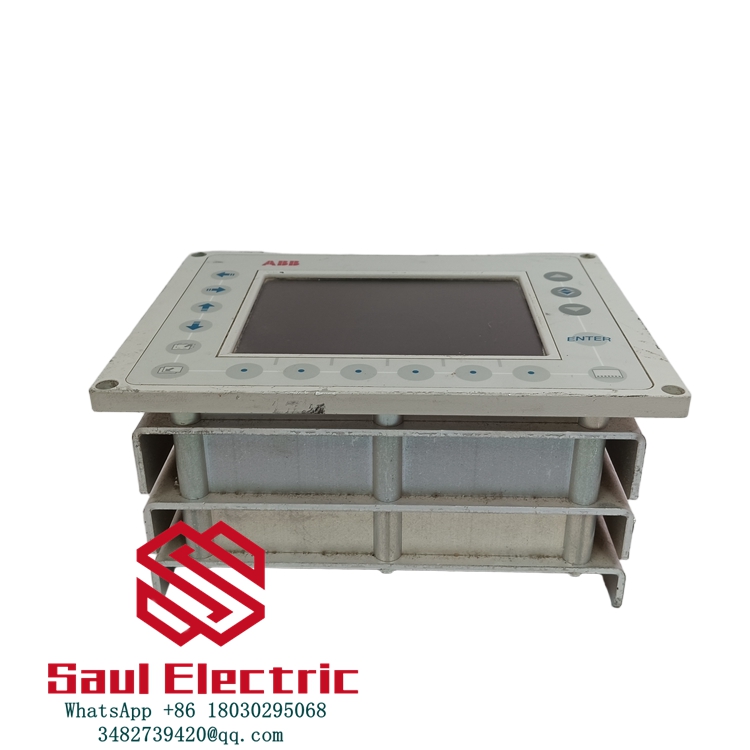

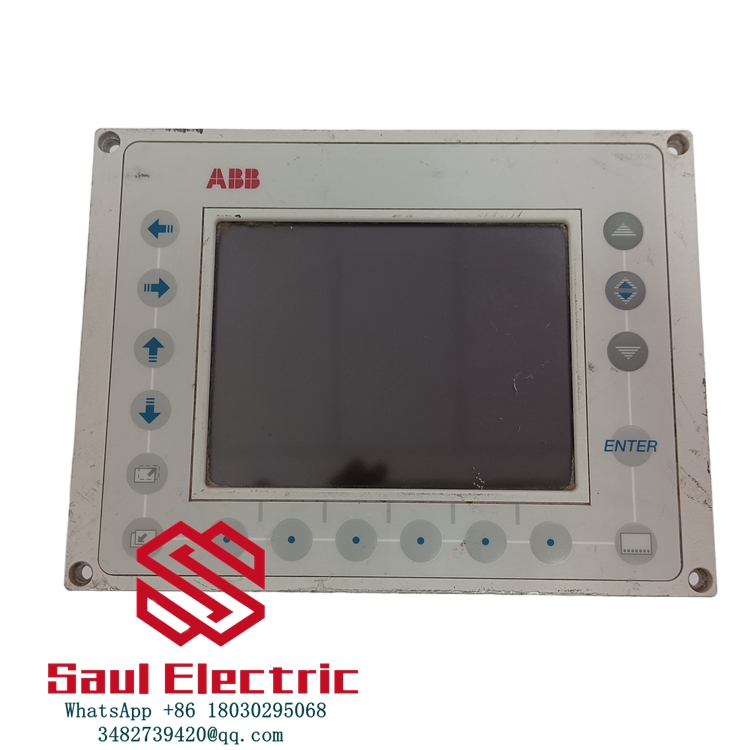

The ABB G2000A5.7ST is a premium PM drive graphic operator panel designed for industrial automation applications requiring advanced human-machine interface capabilities. As part of ABB’s renowned drive control portfolio, this operator panel provides intuitive control and monitoring of drive systems with its high-resolution 5.7-inch color touchscreen display. The G2000A5.7ST serves as a critical interface between operators and drive systems, offering comprehensive parameter access and real-time system monitoring.
Featuring robust construction and sunlight-readable display, the ABB G2000A5.7ST excels in harsh industrial environments where reliable operation is essential. Its modular design allows for seamless integration with ABB’s drive systems while maintaining the high performance standards expected from ABB products.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | G2000A5.7ST |
| Manufacturer | ABB |
| Product Type | PM Drive Graphic Operator Panel |
| Display | 5.7″ TFT color LCD (320×240 pixels) |
| Touchscreen | Resistive touch |
| Operating Voltage | 24V DC ±10% |
| Power Consumption | 15W max |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity Range | 10% to 90% non-condensing |

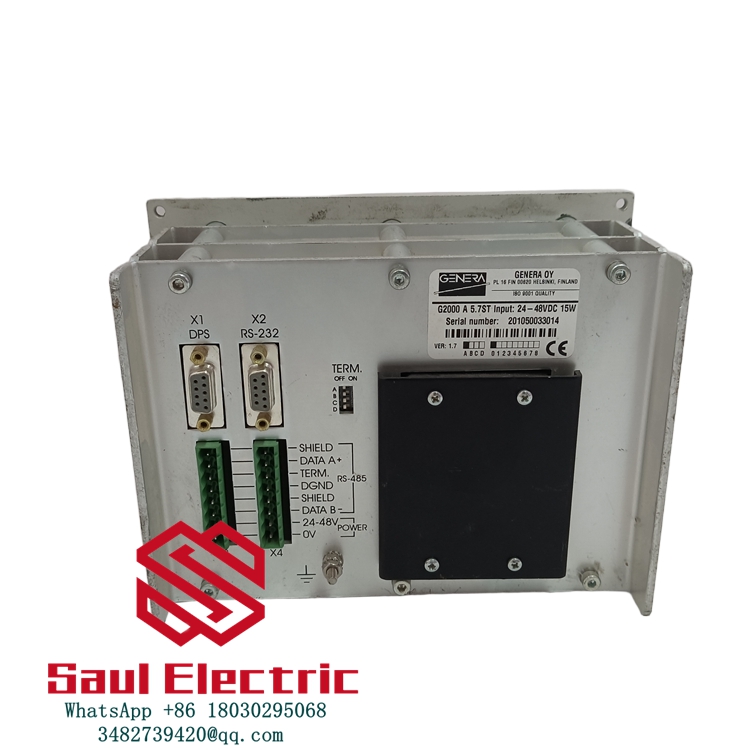

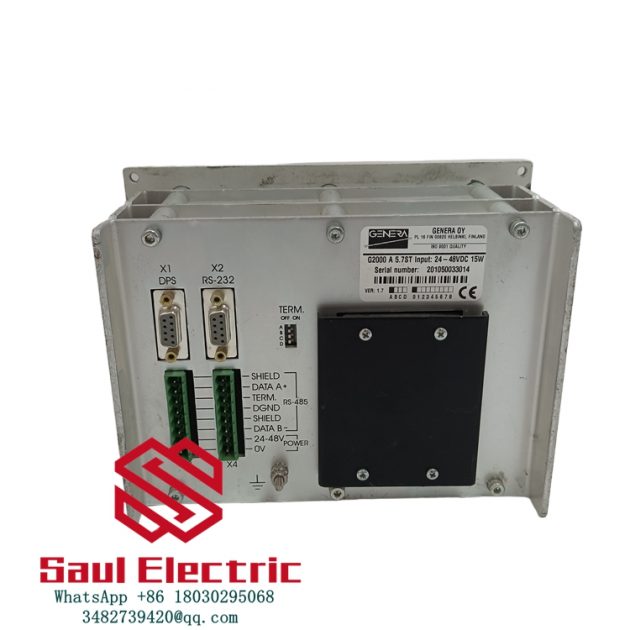

| Communication Interfaces | RS-232, RS-485, CANopen |
| Protection Rating | IP65 front panel |
| Dimensions | 165mm × 125mm × 45mm |
| Weight | 0.8kg |
Main Features and Advantages:
The ABB G2000A5.7ST delivers exceptional usability with its intuitive graphical interface and multi-language support. Its high-brightness display ensures excellent visibility even in direct sunlight conditions, making it ideal for outdoor applications.
Advanced functionality: The panel features comprehensive drive parameter management, real-time monitoring of key performance indicators, and customizable alarm management. The G2000A5.7ST also includes password protection for secure operation in multi-user environments.
Application Areas:
- Manufacturing: Production line drive control3
- Energy: Motor control in power plants
- Water Treatment: Pump drive monitoring
- Mining: Conveyor system operation
- Oil & Gas: Compressor drive interface
Related Products:
- G2000A7.5ST: Larger 7.5-inch version
- G2000A5.7BT: Bluetooth-enabled variant
- G2000A5.7IP: Industrial PC version
- G2000A5.7PRO: Professional edition with enhanced features
- G2000A5.7MT: Marine-grade version
Installation and Maintenance:
Installation preparation: Verify proper mounting surface and power supply before installing the ABB G2000A5.7ST. Ensure adequate clearance for cable routing and ventilation.
Maintenance recommendations: Clean the touchscreen periodically with approved cleaning solutions. The G2000A5.7ST requires minimal maintenance but benefits from regular firmware updates for optimal performance.
Product Assurance:
ABB provides a standard 12-month warranty for the G2000A5.7ST. Each unit undergoes extensive testing to ensure reliable operation in industrial environments.
