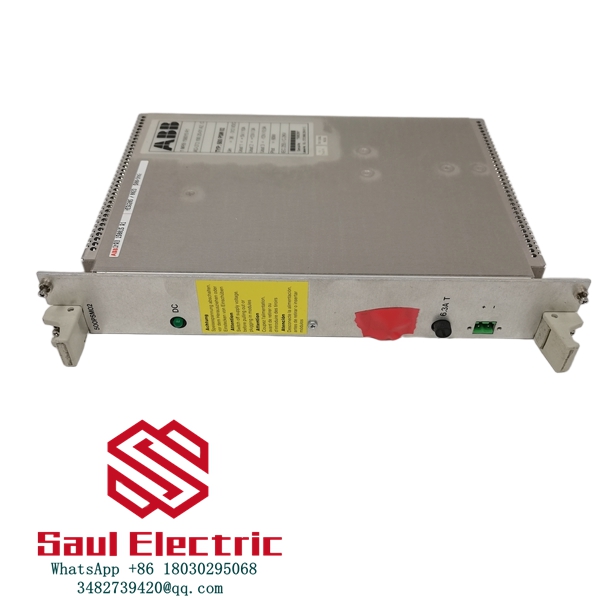

The ABB 500PSM02 1MRB150015R1 is a high-performance power supply module designed for industrial automation systems requiring reliable and stable power distribution. As part of ABB’s renowned automation component portfolio, this module provides robust power conversion and distribution capabilities for control systems. The 500PSM02 1MRB150015R1 serves as a critical power infrastructure component in distributed control architectures, offering clean and regulated power to sensitive control equipment.
Engineered for demanding industrial environments, the ABB 500PSM02 1MRB150015R1 features advanced protection mechanisms and high efficiency power conversion. Its compact design allows for easy integration with existing control cabinets while maintaining the high reliability standards expected from ABB products.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | 500PSM02 1MRB150015R1 |
| Manufacturer | ABB |
| Product Type | Power Supply Module |
| Input Voltage Range | 85-264V AC / 120-370V DC |
| Output Voltage | 24V DC ±1% |
| Output Current | 10A |
| Power Capacity | 240W |
| Efficiency | >93% |
| Ripple & Noise | <100mV p-p |
| Protection | Overload, Overvoltage, Short Circuit |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Cooling Method | Convection |
| Protection Rating | IP20 |
| Dimensions | 115mm × 124mm × 117mm |
| Weight | 1.5kg |
Main Features and Advantages:
The ABB 500PSM02 1MRB150015R1 delivers exceptional power stability with its advanced regulation and filtering technologies. Its wide input voltage range ensures reliable operation even with unstable mains power, while the high efficiency design minimizes energy waste and heat generation.
Advanced protection: The module features comprehensive protection against electrical faults including automatic recovery from temporary overloads. The 500PSM02 1MRB150015R1 also includes diagnostic LEDs for quick status monitoring and troubleshooting.
Application Areas:
- Manufacturing: Production line control systems
- Power Generation: Turbine control cabinets
- Oil & Gas: Process instrumentation power
- Water Treatment: PLC and SCADA systems
- Building Automation: Control panel power distribution
Installation and Maintenance:
Installation preparation: Verify proper mounting location and ventilation before installing the ABB 500PSM02 1MRB150015R1. Ensure adequate clearance for heat dissipation and proper cable management for optimal performance.
Maintenance recommendations: Perform periodic visual inspections and thermal monitoring. The 500PSM02 1MRB150015R1 requires minimal maintenance but benefits from regular dust removal to maintain cooling efficiency.
Product Assurance:
ABB provides a standard 12-month warranty for the 500PSM02 1MRB150015R1. Each unit undergoes extensive testing to ensure reliable operation in industrial automation applications.
