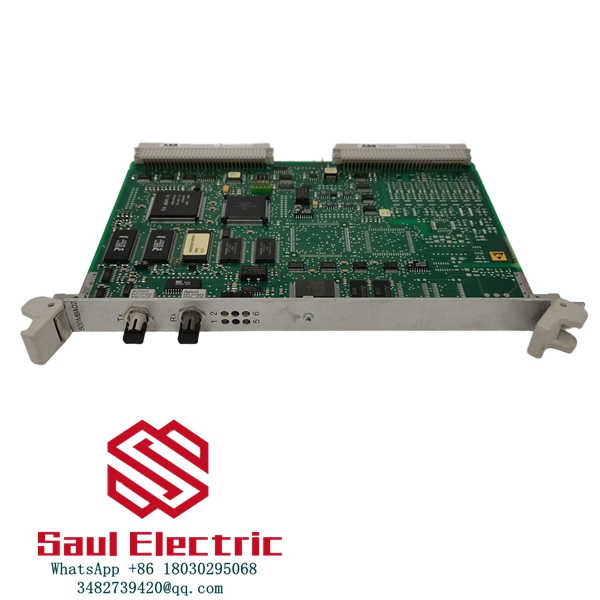

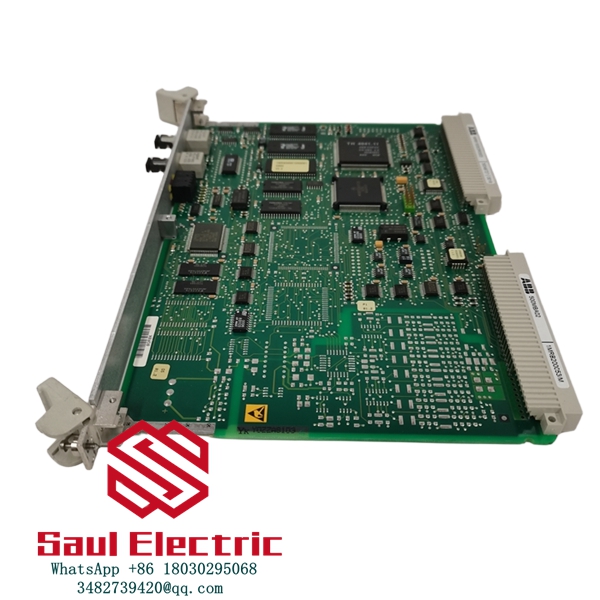

The ABB 500MBA02 1MRB150003R0003 is a high-performance fieldbus module designed for industrial automation systems. As part of ABB’s industrial communication solutions, this module provides reliable real-time data exchange capabilities in distributed control architectures. The 500MBA02 1MRB150003R0003 serves as a critical interface between field devices and control systems, supporting multiple industrial protocols for flexible integration.
With its robust design and advanced diagnostics, the ABB 500MBA02 1MRB150003R0003 ensures stable communication in demanding industrial environments. The module features comprehensive protection against electromagnetic interference and supports hot-swapping capabilities for reduced downtime during maintenance.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | 500MBA02 1MRB150003R0003 |
| Manufacturer | ABB |
| Product Type | Fieldbus Communication Module |
| Power Supply | 24V DC ±10% |
| Power Consumption | 6W max |
| Operating Temperature | -20°C to +70°C |
| Communication Protocols | PROFIBUS DP, PROFINET, Modbus TCP |
| Data Transfer Rate | Up to 100Mbps |
| Isolation Voltage | 1500V AC |
| Dimensions | 125mm × 90mm × 45mm |
| Weight | 0.55kg |
| Certifications | CE, UL, ATEX, IECEx |
Main Features and Advantages:
The ABB 500MBA02 1MRB150003R0003 offers exceptional versatility with its multi-protocol support, enabling seamless integration with diverse industrial networks. Its rugged construction features IP65 protection rating, making it suitable for harsh industrial environments with dust and moisture exposure.
Advanced diagnostics: The module includes comprehensive self-monitoring capabilities with LED status indicators for each channel. The 500MBA02 1MRB150003R0003 also features automatic baud rate detection and configurable watchdog timers for enhanced system reliability.
Application Areas:
- Power Generation: Distributed control system communications
- Oil & Gas: Field device network integration
- Manufacturing: PLC-to-PLC communication links
- Water Treatment: SCADA system data acquisition
- Mining: Remote I/O communication networks
Related Products:
- 500MBA03: Enhanced version with additional protocol support
- 500MBA04: High-speed fiber optic communication module
- 500MBA05: Redundant communication module
- 500MBA06: Wireless communication interface
- 500MBA07: Compact version for space-constrained installations
Installation and Maintenance:
Installation preparation: Verify proper power supply and grounding before installing the ABB 500MBA02 1MRB150003R0003. Ensure adequate clearance for ventilation and proper cable routing for signal integrity.
Maintenance recommendations: Perform annual firmware updates and periodic visual inspections. The 500MBA02 1MRB150003R0003 requires minimal maintenance but benefits from regular cleaning in dusty environments.
Product Assurance:
ABB provides a standard 24-month warranty for the 500MBA02 1MRB150003R0003. Each module undergoes rigorous testing to ensure compliance with industrial standards and reliable performance.
