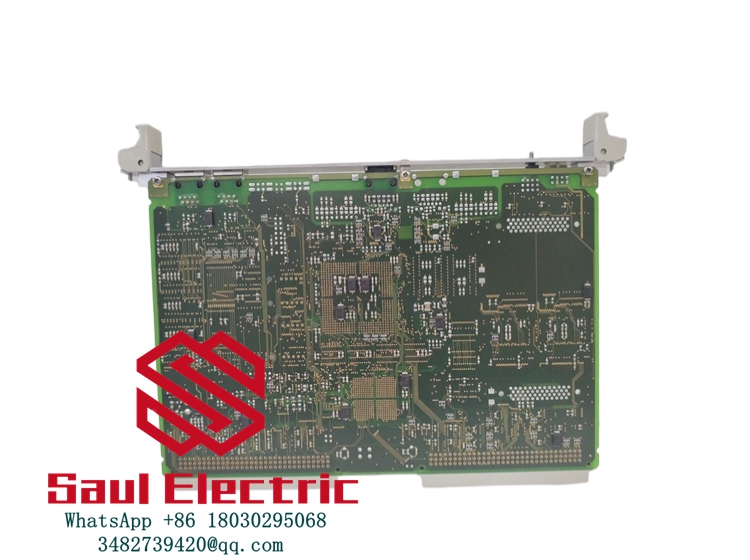

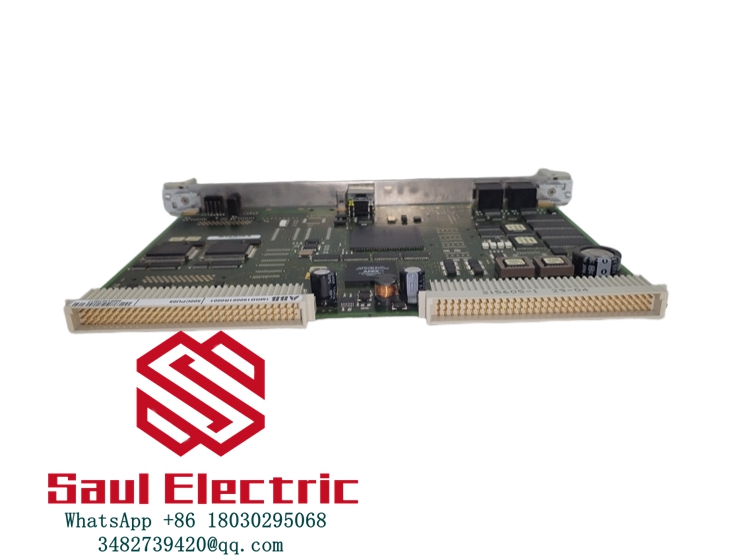

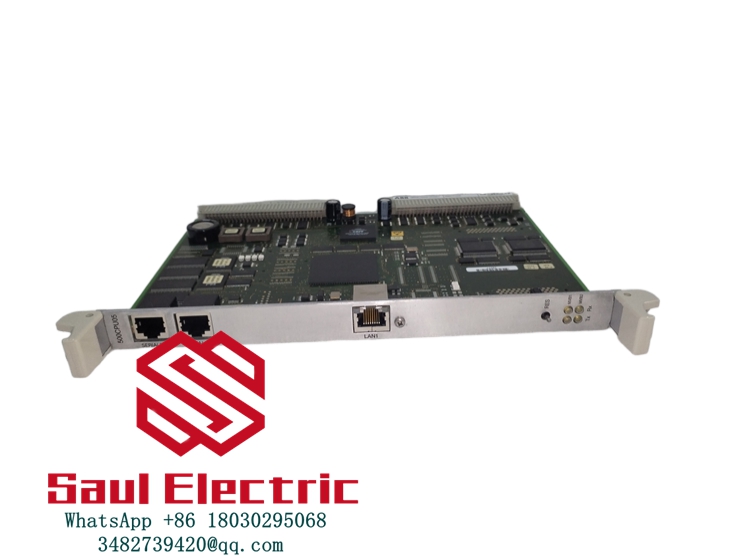

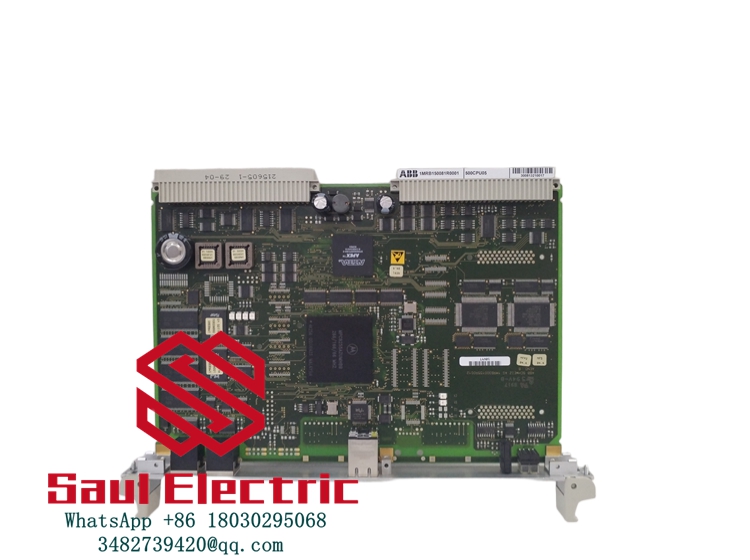

The ABB 500CPU05 1MRB150081R1/E is a high-performance CPU processor module from ABB’s AC500 PLC series, designed for demanding industrial automation applications. This robust controller module provides reliable processing power for complex control tasks in harsh industrial environments. The 500CPU05 1MRB150081R1/E serves as the central processing unit in ABB’s modular PLC system, offering exceptional computing performance and extensive communication capabilities.
With its advanced architecture, the ABB 500CPU05 1MRB150081R1/E supports both discrete and process control applications, making it suitable for hybrid manufacturing environments. The module’s flexible expansion options and powerful programming environment enable engineers to implement sophisticated automation solutions with ease.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | 500CPU05 1MRB150081R1/E |
| Manufacturer | ABB |
| Series | AC500 |
| Processor Type | 32-bit RISC |
| Clock Speed | 400MHz |
| Memory | 512KB RAM, 8MB Flash |
| I/O Capacity | Up to 2048 digital I/O points |
| Communication Ports | 2x RS232/RS485, 1x Ethernet |
| Supported Protocols | Modbus RTU/ASCII, PROFIBUS DP, Ethernet/IP |
| Power Supply | 24V DC ±10% |
| Current Consumption | 500mA @ 24V DC |
| Operating Temperature | -25°C to +60°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions | 115mm × 90mm × 70mm |
| Weight | 0.5kg |
Main Features and Advantages:
The ABB 500CPU05 1MRB150081R1/E delivers exceptional performance with its powerful 32-bit RISC processor and ample memory capacity. Its deterministic execution ensures precise timing for critical control applications, while the modular design allows for flexible system expansion.
Enhanced connectivity: Featuring multiple communication ports and support for industrial protocols, the 500CPU05 1MRB150081R1/E simplifies integration with various field devices and enterprise systems. The module’s robust construction ensures reliable operation in challenging industrial environments.
Application Areas:
- Manufacturing: Production line control
- Energy: Power distribution automation
- Water Treatment: Process control systems
- Transportation: Material handling systems
- Building Automation: HVAC control
Related Products:
- 500CPU06: Higher performance CPU module
- 500I/O: Digital and analog I/O modules
- 500COM: Communication interface modules
- 500PSU: Power supply units
- 500HMI: Operator interface panels
Installation and Maintenance:
Installation preparation: Verify proper power supply and grounding before installing the ABB 500CPU05 1MRB150081R1/E. Ensure adequate space for ventilation and proper cable management.
Maintenance recommendations: Perform regular firmware updates and periodic visual inspections. The 500CPU05 1MRB150081R1/E features diagnostic LEDs for quick troubleshooting.
Product Assurance:
ABB provides a comprehensive 12-month warranty for the 500CPU05 1MRB150081R1/E. Each module undergoes rigorous testing to ensure compliance with industrial standards and reliable performance.
