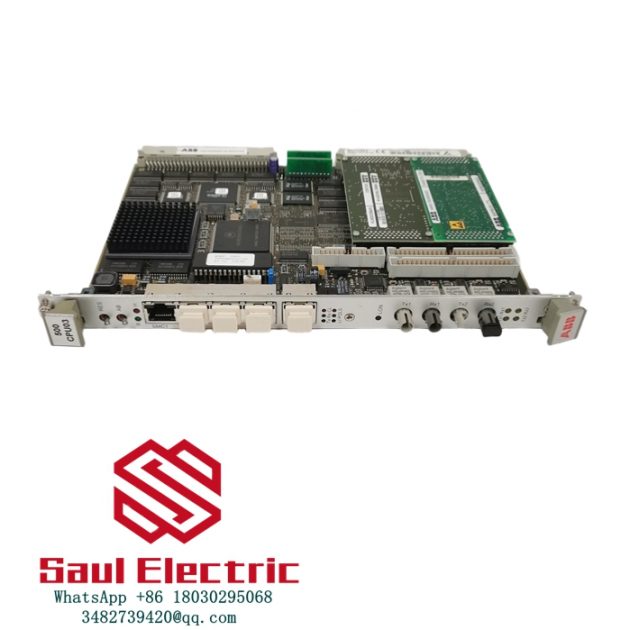

The ABB 500CPU03 1HDF700003R5122 is a high-performance industrial processor module designed for mission-critical automation applications. As part of ABB’s advanced control system components, this module serves as the central processing unit in distributed control architectures, delivering exceptional computational power and reliability. The 500CPU03 1HDF700003R5122 combines robust processing capabilities with advanced communication features, making it ideal for complex industrial automation tasks.
With its modular design and scalable architecture, the ABB 500CPU03 1HDF700003R5122 supports seamless integration with various field devices and higher-level control systems. Its high-speed processing and deterministic performance ensure precise control in time-critical applications, while maintaining the industrial-grade reliability expected from ABB products.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | 500CPU03 1HDF700003R5122 |
| Manufacturer | ABB |
| Product Type | Industrial Processor Module |
| Processor Type | 32-bit RISC |
| Clock Speed | 1.2 GHz |
| Memory Capacity | 512 MB RAM, 4GB Flash |
| Communication Ports | 2× Ethernet, 1× PROFIBUS, 1× RS-485 |
| Protocol Support | Modbus TCP, PROFINET, OPC UA |
| Power Supply | 24V DC ±10% |
| Power Consumption | 15W max |
| Operating Temperature | -20°C to +60°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 120mm × 80mm × 45mm |
| Weight | 0.8kg |
Main Features and Advantages:
The ABB 500CPU03 1HDF700003R5122 delivers exceptional performance with its multi-core architecture and deterministic processing capabilities. Its advanced thermal management system ensures stable operation even in harsh industrial environments, while the ruggedized design provides excellent resistance to vibration and electromagnetic interference.
Advanced functionality: The module features comprehensive diagnostic capabilities and supports redundant configurations for mission-critical applications. The 500CPU03 1HDF700003R5122 also includes built-in security features to protect against unauthorized access and cyber threats.
Application Areas:
- Power Generation: Distributed control system processing
- Oil & Gas: Process automation control
- Manufacturing: High-speed machine control
- Water Treatment: SCADA system integration
- Mining: Remote monitoring and control
Related Products:
- 500CPU04: Enhanced version with additional memory
- 500COM01: Communication interface module
- 500PSU01: Power supply unit
- 500IO01: Digital input/output module
- 500AI01: Analog input module
Installation and Maintenance:
Installation preparation: Verify proper power supply and grounding before installing the ABB 500CPU03 1HDF700003R5122. Ensure adequate clearance for ventilation and proper cable management for optimal performance.
Maintenance recommendations: Perform periodic firmware updates and visual inspections. The 500CPU03 1HDF700003R5122 requires minimal maintenance but benefits from regular cleaning to prevent dust accumulation.
Product Assurance:
ABB provides a standard 12-month warranty for the 500CPU03 1HDF700003R5122. Each module undergoes rigorous testing to ensure compliance with industrial standards and reliable performance in critical applications.
