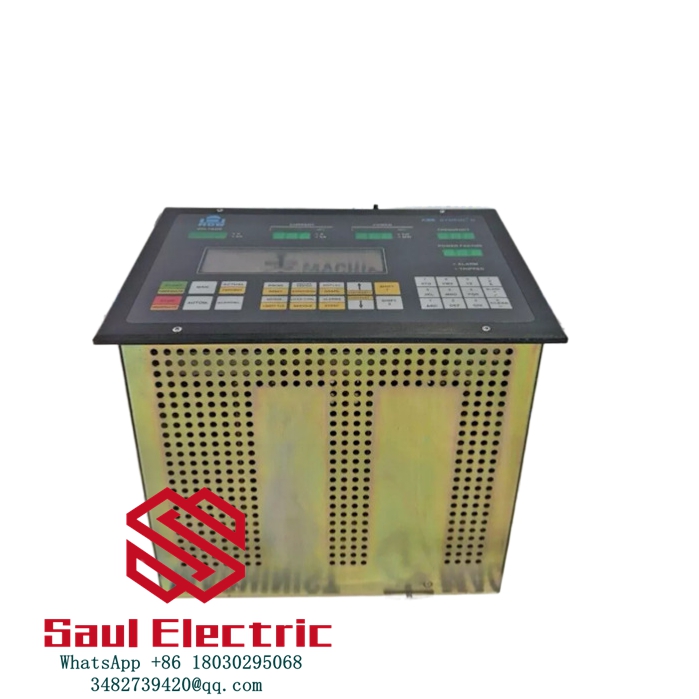

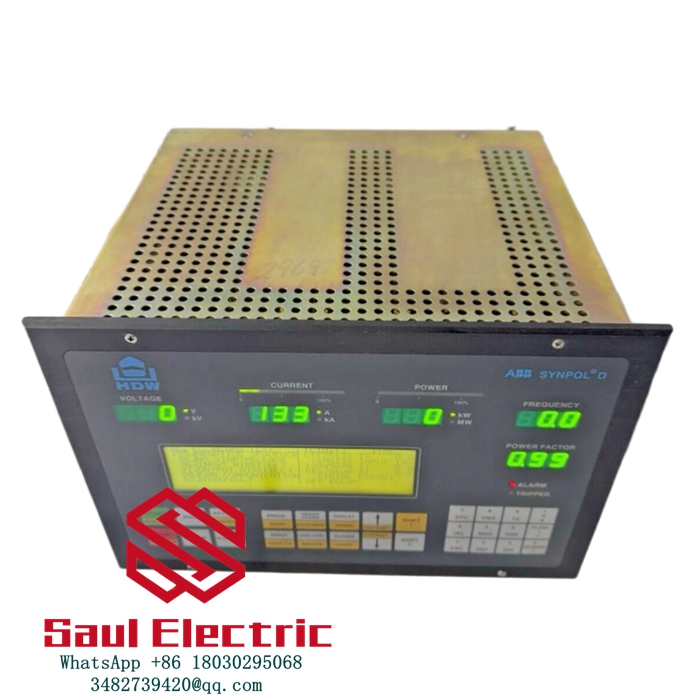

The ABB 3DDE300400 CMA120 is a fundamental controller panel unit designed for industrial automation systems requiring reliable control functionality. As part of ABB’s comprehensive control component series, this unit serves as a critical building block in distributed control architectures, providing essential control capabilities for various industrial processes. The 3DDE300400 CMA120 combines robust hardware design with intuitive operation, making it suitable for both standalone applications and integrated control systems.
Engineered for industrial environments, the ABB 3DDE300400 CMA120 features a compact yet durable construction that withstands harsh operating conditions. Its modular design allows for flexible configuration while maintaining the high reliability standards expected from ABB’s industrial components.
Technical Specifications
Parameter Name | Parameter Value |
---|---|
Model | 3DDE300400 CMA120 |
Manufacturer | ABB |
Product Type | Basic Controller Panel Unit |
Processor Type | 32-bit industrial grade |
Clock Speed | 800 MHz |
Memory | 512MB Flash, 256MB RAM |
I/O Capacity | Up to 256 digital I/O points |
Communication Ports | 2×RS-485, 1×Ethernet |
Power Supply | 24V DC ±10% |
Power Consumption | 12W (typical) |
Operating Temperature | -20°C to +60°C |
Storage Temperature | -40°C to +85°C |
Dimensions | 150mm × 120mm × 45mm |
Weight | 0.9kg |
Protection Rating | IP40 |
Main Features and Advantages:
The ABB 3DDE300400 CMA120 delivers exceptional control performance with its industrial-grade processor and optimized firmware. Its modular I/O structure allows for flexible system configuration, adapting to various application requirements without hardware modifications.
Reliable operation: Designed for 24/7 operation in demanding industrial environments, the 3DDE300400 CMA120 features advanced thermal management and vibration-resistant components. The unit also includes comprehensive diagnostic capabilities, providing detailed status information for proactive maintenance and troubleshooting.
Application Areas:
- Manufacturing: Production line control systems
- Power Generation: Auxiliary equipment control
- Water Treatment: Pump station automation
- Building Automation: HVAC control applications
- Material Handling: Conveyor system control
Related Products:
- CMA130 3DDE300410 basic controller panel unit
- CMA131 3DDE300411 basic controller panel unit
- ABB PM864AK01 3BSE018161R1 AC 800M series controller
- CI854AK01: Communication interface module
- PP825A 3BSE042240R3 panel 800 series 5.7-inch touchscreen panel
Installation and Maintenance:
Installation preparation: Verify proper mounting location and environmental conditions before installing the ABB 3DDE300400 CMA120. Ensure adequate clearance for ventilation and proper cable management for optimal performance.
Maintenance recommendations: Perform regular firmware updates and periodic visual inspections. The 3DDE300400 CMA120 requires minimal maintenance but benefits from annual preventive maintenance checks to ensure long-term reliability.
Product Assurance:
ABB provides a standard 12-month warranty for the 3DDE300400 CMA120. Each unit undergoes extensive testing to ensure reliable operation in industrial automation applications.
