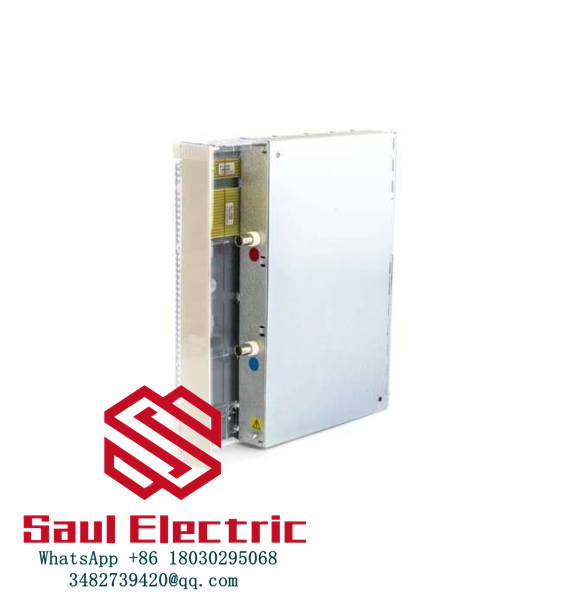

ABB 3BSE011000R1 CI630‌ AF100 communication interface module

The ‌ABB 3BSE011000R1 CI630‌ represents a high-performance AF100 communication interface module designed for industrial automation networks. As part of ABB’s renowned Industrial IT system family, this ‌3BSE011000R1 CI630‌ module serves as the critical communication gateway between AC 800M controllers and field devices in distributed control systems. The ‌ABB 3BSE011000R1 CI630‌ features advanced protocol conversion technology that ensures seamless data exchange between different automation layers, supporting real-time process control with deterministic communication latency <10ms. Its ruggedized design and extended temperature range operation make it ideal for harsh industrial environments in power generation, oil & gas, and chemical processing applications.

Technical Specifications

Key Features and Advantages:

The ‌ABB 3BSE011000R1 CI630‌ incorporates patented “DualPath” communication technology that maintains redundant data channels with automatic failover in <50ms, ensuring uninterrupted operation in mission-critical applications. Its galvanic isolation between AF100 and Ethernet ports prevents ground loop interference while supporting 32-bit cyclic data exchange with <0.01% signal distortion. The module’s integrated diagnostic LEDs provide real-time status monitoring for all communication channels, simplifying troubleshooting.

Unique among interface modules, the ‌3BSE011000R1 CI630‌ features configurable protocol conversion that supports simultaneous operation of up to 8 MODBUS TCP/IP client connections alongside native AF100 communications. The hot-swappable design enables field replacement without system shutdown, while the corrosion-resistant zinc alloy housing ensures 15+ year service life in demanding environments. Cybersecurity features include hardware-based authentication and encrypted firmware validation compliant with IEC 62443-3-3 standards.

ABB DSPU131 3BSE000355R1 MA200 Interface Board

Application Fields:

In power plants, the ‌3BSE011000R1 CI630‌ provides robust communication between turbine control systems and distributed I/O, handling 500+ process variables with deterministic refresh rates <100ms. Oil refineries leverage its -40°C cold-start capability for safety instrumented systems (SIS), while the module’s vibration resistance (5g @ 10-500Hz) ensures reliable operation in compressor stations.

The ‌ABB 3BSE011000R1 CI630‌ proves particularly valuable in pharmaceutical manufacturing where its EMC immunity (10V/m @ 80MHz-1GHz) prevents interference with sensitive instrumentation. Water treatment facilities utilize its simultaneous protocol support to integrate legacy PLCs with modern DCS systems, reducing migration costs by 30%. For marine applications, its salt spray resistance (1000hr salt fog test) ensures dependable performance in shipboard automation systems.

Installation and Maintenance:

Installation preparation: The ‌3BSE011000R1 CI630‌ requires proper ESD precautions during handling. Verify cabinet grounding resistance <1Ω using ABB’s GSK-200 test kit before installation. Ensure minimum 30mm clearance around the module for adequate airflow and heat dissipation.

Maintenance recommendations: Perform annual communication performance tests using ABB’s ComCheck diagnostic software. For ‌3BSE011000R1 CI630‌ modules in dusty environments, clean with dry nitrogen purge every 6 months. Check connector tightness during scheduled outages (recommended torque 0.8Nm±10%).
