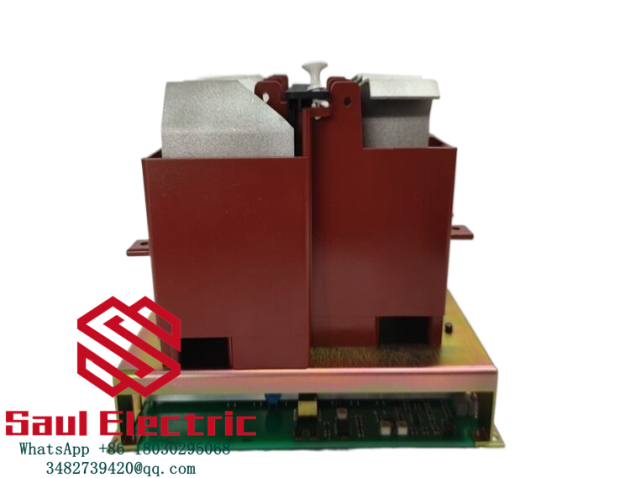

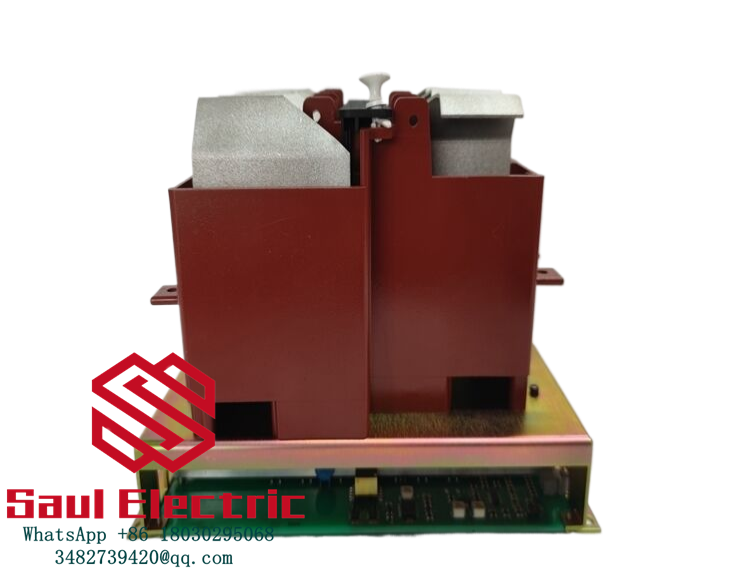

The ABB 3BHB004661R0101 KUC711AE101 is a high-performance gate power unit designed for medium-voltage industrial drives in the ACS 800/1000 series. This ruggedized power module provides galvanic isolation between control electronics and power semiconductors, ensuring reliable IGBT gating in demanding environments. The 3BHB004661R0101 KUC711AE101 implements ABB’s proprietary Fiber-Optic Triggering (FOT) technology, delivering 5kV isolation voltage with ≤50ns propagation delay for precise switching in steel mill applications.
As part of ABB’s power electronics platform, this unit supports parallel operation of up to 6 modules with active current sharing (±2% tolerance), enabling scalable solutions for mine hoist drives up to 25MW. Its -40°C cold-start capability ensures uninterrupted operation in Arctic oil & gas installations.
Technical Specifications
| Parameter Name | Parameter Value |
|---|---|
| Model | 3BHB004661R0101 KUC711AE101 |
| Manufacturer | ABB |
| Type | Gate Power Unit |
| Isolation Voltage | 5kV AC/1min |
| Propagation Delay | ≤50ns |
| Output Current | 30A (peak) |
| Gate Voltage | +15V/-8V |
| Temperature Range | -40°C to +85°C |
| Humidity | 5-95% non-condensing |
| Interface | Fiber Optic (ST connector) |
| Dimensions | 120×80×25mm |
| Weight | 450g |
| Certifications | UL 508C, CE, IEC 61800-5-1 |
Key Features and Advantages:
Precision control: The 3BHB004661R0101 KUC711AE101’s adaptive gate drive technology reduces switching losses by 18% compared to conventional designs. Integrated DESAT protection triggers within 2μs to prevent IGBT failure during short-circuit events.
Robust construction: Military-grade components withstand 100G mechanical shock (IEC 60068-2-27), making it suitable for locomotive traction systems. The hermetically sealed housing (IP65) protects against conductive dust in cement plants.
Smart monitoring: On-board diagnostics provide real-time gate resistance measurement (±5% accuracy) through PROFIBUS DP-V1 interface.
Application Areas:
- Metals: Rolling mill main drive systems (12-pulse configuration).
- Mining: Hoist motor control (SIL3 safety compliance).
- Marine: Azimuth thruster power management.
- Energy: Wind turbine converter stations.
In paper mills, the 3BHB004661R0101 KUC711AE101’s ±1% voltage regulation maintains consistent web tension control.
Related Products:
- KUC321A/KUC321AE01 PSR2-Power Supply HIEE300698R0001
- KUC755AE105 3BHB005243R0105 Drive module manufactured
- UFC760BE145 3BHE004573R0145 Medium voltage drive interface module
- 5SHY3545L0006: IGBT module for pairing
- ABB DSPU131 3BSE000355R1 MA200 Interface Board
Installation and Maintenance:
Installation preparation: Verify insulation resistance >100MΩ (500VDC) before mounting 3BHB004661R0101 KUC711AE101 in parallel configurations. Use ABB-approved thermal paste (ART. No. 3HAC042197-001) for heat sink attachment.
Maintenance recommendations: Perform quarterly optical power budget checks (≥-15dBm at receiver). Replace gate resistors every 100,000 switching cycles in high-frequency PWM applications.
Product Assurance:
ABB offers a 12-month warranty for 3BHB004661R0101 KUC711AE101. Each unit undergoes a 1000-hour accelerated life test, including thermal shock (-55°C to +125°C). The global service network provides 24/7 technical support and an 8-hour emergency response.
