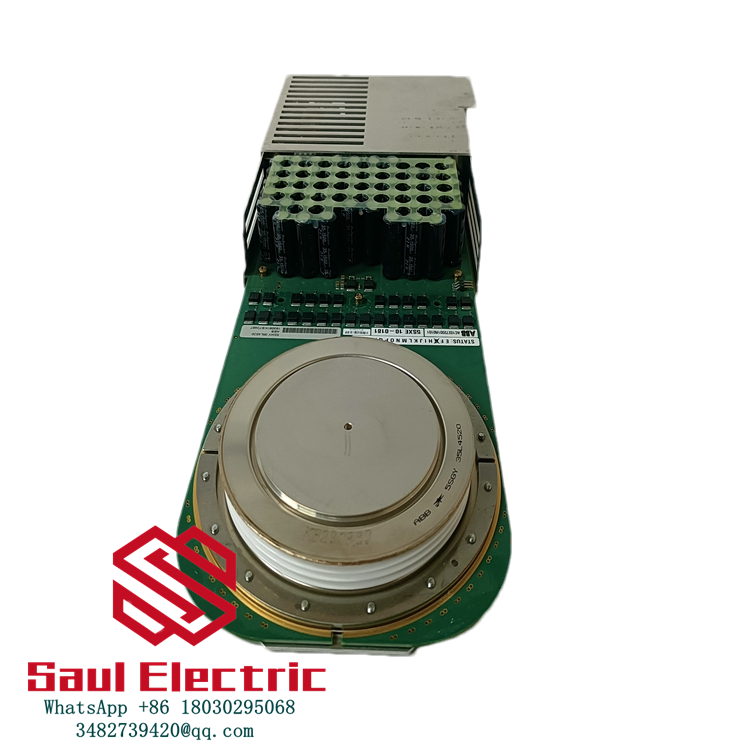

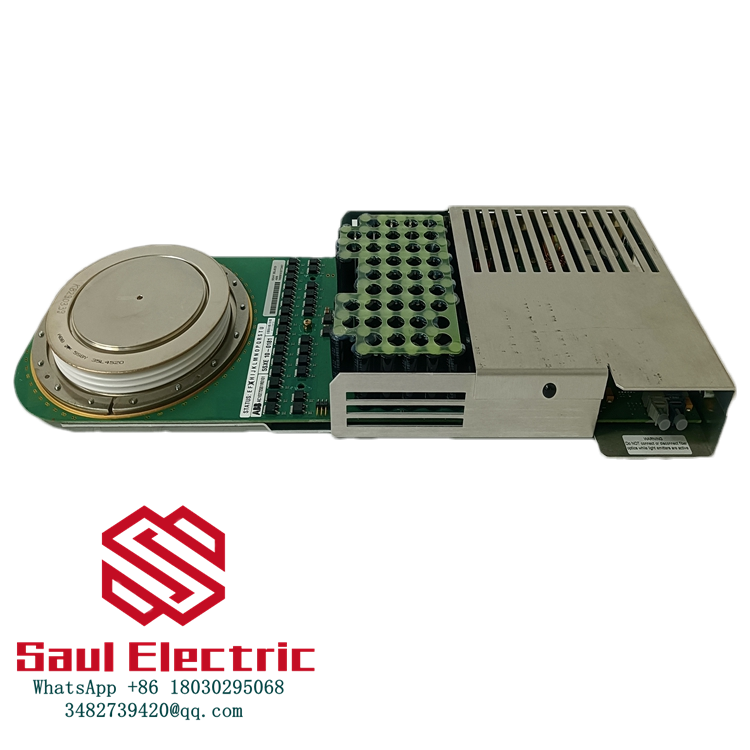

The ABB 5SHY3545L0021 is a premium Reverse Conducting Integrated Gate-Commutated Thyristor (RC-IGCT) module designed for high-power industrial applications. As part of ABB’s renowned power semiconductor portfolio, the 5SHY3545L0021 combines the functionality of a GCT and freewheeling diode in a single robust package. This 4.5kV class device delivers exceptional performance in medium-voltage drive systems, power converters, and energy transmission applications. The 5SHY3545L0021 stands out with its low conduction losses and high switching reliability, making it ideal for demanding industrial environments where efficiency and uptime are critical. Its press-pack design ensures superior thermal management compared to conventional solutions.
Technical Specifications
Product Model | 5SHY3545L0021
Manufacturer | ABB
Product Type | RC-IGCT (4.5kV Class)
Maximum Blocking Voltage | 4500 V
Nominal Current | 4000 A
Peak Surge Current | 24 kA
Gate Trigger Voltage | 1.5-2.5 V
Storage Temperature Range | -40°C to +125°C
Operating Junction Temperature | -40°C to +125°C
Critical Rate of Voltage Rise | 1000 V/μs
Module Weight | 1200 g
Mounting Force | 25 kN ±10%
Isolation Voltage | 6000 V RMS
Key Features and Advantages
The 5SHY3545L0021 delivers industry-leading performance through its innovative single-chip integration technology. Its symmetrical blocking capability eliminates the need for external diodes in voltage source converters, reducing system complexity. Thermal management: The press-pack design provides direct cooling to both sides of the silicon wafer, enabling higher current densities than conventional modules. Reliability is enhanced through ABB’s proprietary pressure contact technology that eliminates wire bonds – the most common failure point in power semiconductors. The 5SHY3545L0021 features extremely low conduction losses (<1.65V at nominal current) and fast switching times (<5μs), significantly improving system efficiency. Its robust design withstands harsh industrial environments with excellent immunity to mechanical stress and thermal cycling.
Application Fields
The 5SHY3545L0021 excels in high-power industrial applications including medium-voltage drives for mining equipment, oil/gas compressors, and metal processing machinery. In renewable energy systems, it’s deployed in multi-megawatt wind turbine converters and solar farm inverters. The module’s reliability makes it ideal for traction applications in electric locomotives and ship propulsion systems. For power transmission, the 5SHY3545L0021 is used in STATCOM devices and HVDC light converters where its precise switching enables reactive power control. The chemical and petrochemical industries benefit from its robustness in critical motor drive applications where operational safety is paramount.
Related Products
- 5SHY35L4520 IGBT Electric voltage driven device
- ABB 3BHB004661R0101 KUC711AE101 gate power supply unit
-
5SHX1445H0001 3BHB003230R0101 Power semiconductor device
- Excitation hybrid input/output device PPD539A102 3BHE039770R0102丨PPD539
- ABB DSPU131 3BSE000355R1 MA200 Interface Board
- IGBT Electric voltage driven device 5SHX2645L0004 3BHB003154R0101
- 3BHE023784R0001 5SHY3545L0014 IGBT semiconductor switching device
Installation and Maintenance
Installation preparation: Before installing the 5SHY3545L0021, thoroughly clean the heatsink surface and apply proper thermal interface material (0.05-0.1mm thickness). Use calibrated torque tools to achieve specified clamping force (25kN ±10%) without damaging the ceramic housing. Ensure proper alignment of power terminals to minimize mechanical stress.
Maintenance recommendations: Regularly inspect the 5SHY3545L0021 for signs of thermal degradation or contamination. Monitor gate unit parameters quarterly using ABB diagnostic tools. Replace thermal interface material during major maintenance cycles (typically every 5 years). Verify clamping force after significant thermal cycling events.
Product Assurance
ABB provides comprehensive 12-month warranty coverage for the 5SHY3545L0021, including protection against manufacturing defects and premature wear under normal operating conditions. Our global technical support network offers 24/7 assistance and rapid replacement services. Each 5SHY3545L0021 module undergoes rigorous factory testing with full traceability.
