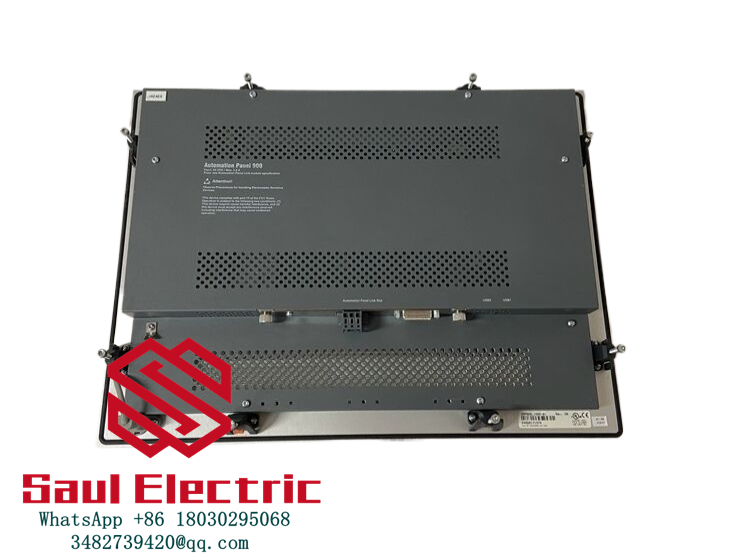

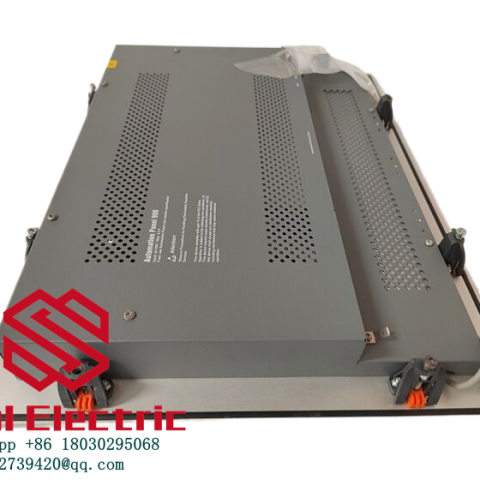

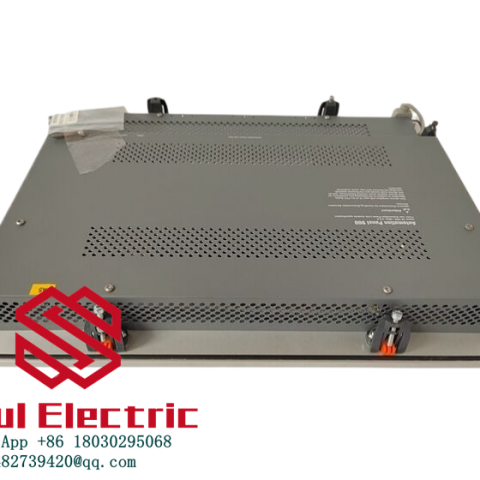

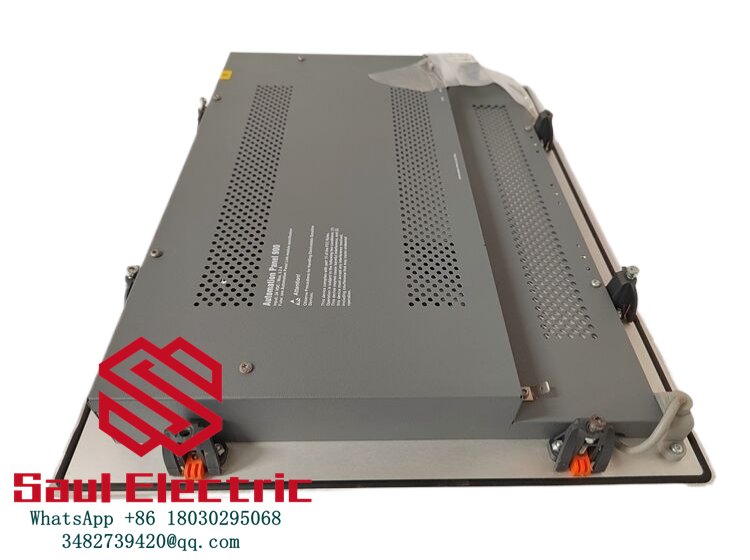

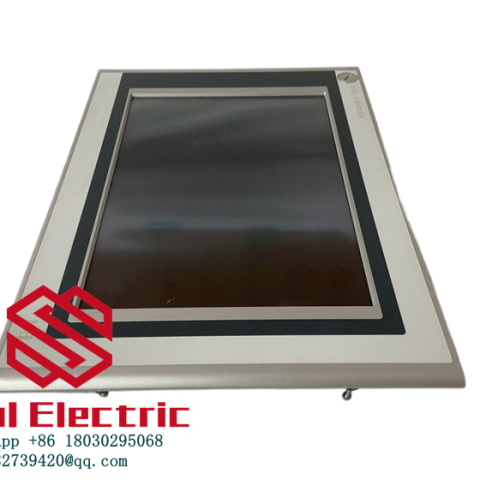

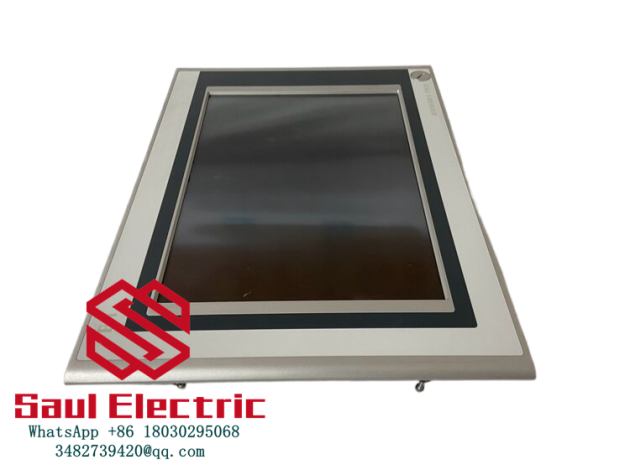

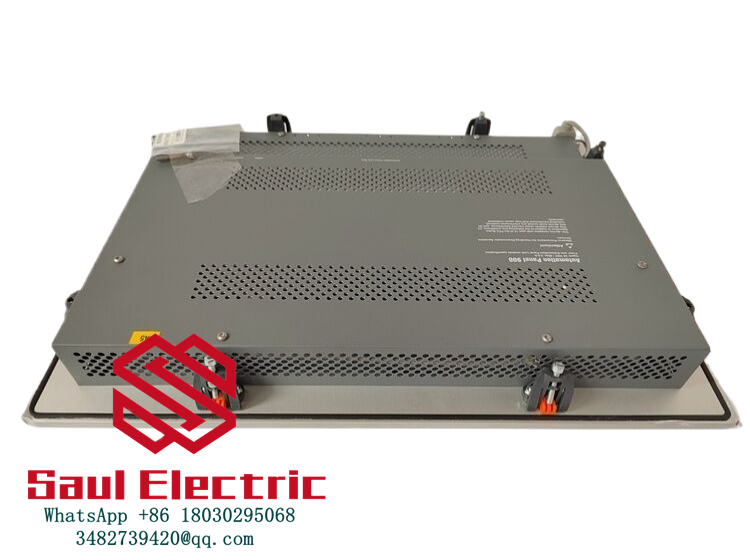

B&R 5AP920.1505-01‌ Industrial HMI operating panel

In stock

The ‌B&R 5AP920.1505-01‌ represents a rugged industrial HMI solution designed for process visualization in harsh manufacturing environments. As part of B&R’s PanelWare 900 series, this 15″ XGA TFT display combines resistive touch technology with IP65 front protection, making it ideal for food processing plants requiring frequent washdowns. The ‌5AP920.1505-01‌ features three isolated USB 2.0 ports supporting both peripheral connectivity and secure data transfer in pharmaceutical batch record systems.

The ‌B&R 5AP920.1505-01‌ represents a rugged industrial HMI solution designed for process visualization in harsh manufacturing environments. As part of B&R’s PanelWare 900 series, this 15″ XGA TFT display combines resistive touch technology with IP65 front protection, making it ideal for food processing plants requiring frequent washdowns. The ‌5AP920.1505-01‌ features three isolated USB 2.0 ports supporting both peripheral connectivity and secure data transfer in pharmaceutical batch record systems.

Integrated Automation Panel Link (APL) technology enables direct communication with B&R X20 PLCs at 100Mbps, reducing control system latency by 40% compared to conventional HMIs. Its 400cd/m² brightness maintains readability in foundry applications with strong ambient light up to 10,000lux

Technical Specifications

Parameter Name Parameter Value
Product Model 5AP920.1505-01
Manufacturer B&R Industrial Automation
Display Type 15″ XGA TFT LCD
Resolution 1024×768 (4:3)
Touch Type 4-Wire Resistive
Protection Class IP65 Front / IP20 Rear
Brightness 400 cd/m²
Viewing Angle 160° H/V
Interface 3×USB 2.0, APL Slot
Power Supply 24VDC ±10%
Power Consumption 45W (Max)
Operating Temp 0°C to +50°C
Storage Temp -20°C to +70°C
Vibration Resistance 1g (10-150Hz)
Certifications CE, UL61010-1

Key Features and Advantages:

Environmental resilience: The ‌5AP920.1505-01‌’s IP65-rated front panel withstands high-pressure cleaning (80Bar) in dairy processing lines. Its 5H hardness screen surface resists scratches from gloved operation in automotive weld shops.

Enhanced connectivity: Triple USB host ports support simultaneous connection of barcode scanners, security dongles, and recipe storage devices in packaging applications. The APL slot enables direct control cabinet integration without external gateways.

Safety compliance: Integrated ESD protection (8kV air/4kV contact) prevents electrostatic damage in electronics assembly cleanrooms. Optional TPM 2.0 module enables secure boot functionality for GMP-regulated facilities.

Application Areas:

The ‌5AP920.1505-01‌ excels in:

  • Food & Beverage‌: CIP system monitoring with chemical splash resistance.
  • Chemical‌: Batch reactor control in ATEX Zone 2 environments.
  • Water Treatment‌: Pump station visualization with sunlight-readable display.
  • Automotive‌: Robotic cell teaching pendants with glove-compatible touch1.

In pharmaceutical tablet press operations, its 8ms response time eliminates display lag during critical pressure monitoring. The panel’s -20°C cold-start capability ensures reliable operation in frozen warehouse control systems.

Related Products:

  1. ‌B&R 5AP933.215C-00‌ Industrial Automation panel PC
  2. ‌5AP915.1001-00‌: 15″ Cost-optimized model
  3. ‌X20CM1480‌: Matching PLC controller
  4. ‌APC920-0001‌: Protective film kit
  5. ‌B&R/贝加莱 X20CP1586 I/O processor Intel Atom 1.6 GHz processor
  6. ‌8LV0030.00-1‌: 24VDC power supply unit
  7. ‌B&R 5AC600.GPI0-K05‌ High performance servo drive
  8. Panel 800 PP886 3BSE092980R1 standard touch display panel

Installation and Maintenance:

Installation preparation: Verify grounding resistance (<1Ω) before mounting the ‌5AP920.1505-01‌ in Class I Div 2 areas. Use M5 stainless steel fasteners with torque limited to 2.2Nm for vibration-prone installations.

Maintenance recommendations: Clean touch surface weekly using 70% ethanol solution in cleanroom environments. Perform annual touch calibration using BRCalTool software, especially after display module replacement.

Product Assurance:

B&R provides 12-month extended warranty with optional on-site service packages. Each ‌5AP920.1505-01‌ undergoes 72-hour burn-in testing including 50 thermal shock cycles (-20°C↔+70°C). Global technical support guarantees 8-hour response time for critical process interruptions.
