PACSystems RX3i CPE400 Controller: The intelligent hub of industrial control

I. Product technical architecture and core features

1: The integration of real-time control and edge computing

The RX3i CPE400 controller adopts the PACEdge™ software platform, integrates real-time control and edge computing capabilities, and supports synchronous processing of 4096 I/O points with a 1ms-level control cycle. Its 1.1GHz multi-core processor, combined with 5MB of RAM and 5MB of non-volatile flash memory, achieves a scanning speed of 0.72ms per thousand Boolean instructions. Through the built-in OPC UA server and MQTT proxy, it can simultaneously connect to the cloud platform and on-site devices, with a data throughput of up to 100Mbps.

2: Open communication architecture

The controller is equipped with 3 gigabit Ethernet ports and natively supports 12 industrial protocols such as PROFINET, Modbus TCP, and DNP3. The unique dual-backplane bus design (high-speed PCI + serial bus) enables compatibility with 90-30 series I/O modules and supports hybrid architecture expansion up to 64 racks. The HMI can be connected or firmware upgrade operations can be performed through the main USB 2.0 port

3: Network Security and Reliability

It has passed the Achilles Level 2 certification, adopts a secure boot mechanism and encrypted firmware signature technology, effectively defending against man-in-the-middle attacks and malicious code injection. The hardware level achieves an IP51 protection grade, with an operating temperature range covering -40℃ to +70℃ and an average mean time between failures of up to 100,000 hours

II. Typical industry application scenarios

1: Smart Water Management System

In a large-scale sewage treatment plant renovation project in North America, eight CPE400 controllers were used to build a distributed control network

• Real-time monitoring of over 2,000 sensors (including parameters such as pH, turbidity, and flow rate)
• The aeration unit is precisely controlled through the fuzzy PID algorithm, and energy consumption is reduced by 18%
• Integrate the SCADA system to achieve a 98% equipment automation rate
  The system is connected to the regional dispatching center via the built-in DNP3 protocol, increasing the average daily sewage treatment capacity to 500,000 tons

2: Environmental control of rail transit

The environmental control system of a certain Asian metro adopts a CPL410 controller cluster:

• Manage 368 fans and 520 air valves within a 15-kilometer tunnel
• Based on the passenger flow prediction model, the fresh air volume is dynamically adjusted, saving 23% of energy
• The 10ms-level linkage with the platform door system is achieved through PROFINET IRT
  The system meets the EN 50155 rail transit certification, and the fault recovery time is less than 500ms

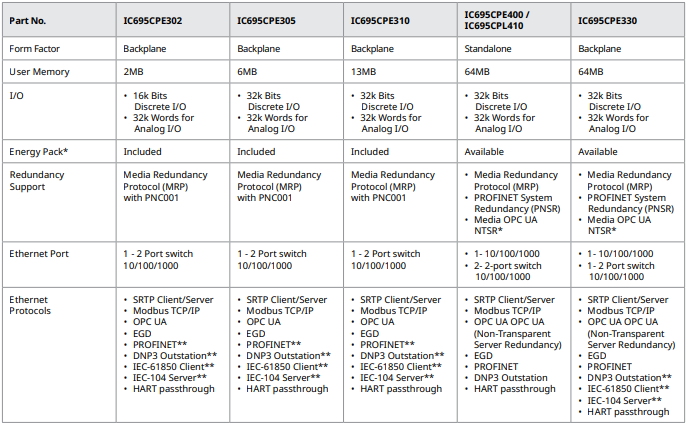

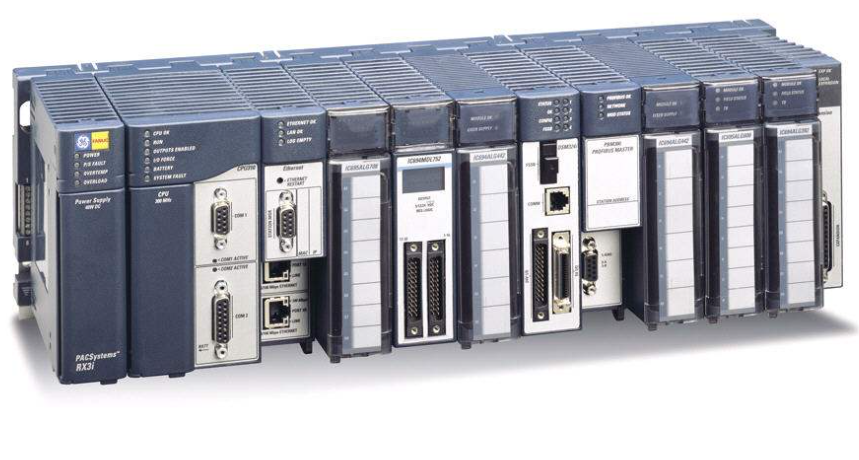

PACSystems™ RX3i Controllers

IV. Software Ecosystem Support

1. PAC Machine Edition (PME)

The integrated development environment supports mixed programming of ladder diagrams, structured text, C language and function blocks. Its symbolic variable database supports over 100,000 tags and realizes data synchronization of over 50 nodes through the EGD exchange protocol. The unique “Test Editing” mode can verify logical modifications without downtime

2. Digital twin interface

The controller is equipped with the built-in OPC UA Pub/Sub function and can transmit real-time data of over 2000 points per second to the Emerson Plantweb platform. By automatically generating IEC 61499 function blocks, the shortening of the virtual debugging cycle is supported

3. Asset Management Suite

Integrate the vibration analysis module (sampling rate 51.2kHz) and the equipment health index model to predict the remaining life of key components such as bearings and gearboxes. It is compatible with over 200 types of field instruments through FDT/DTM technology

PACSystems™ RX3i Controllers Series Product Recommendations:

IC695CPE400‌ PACSystems RX3i Programmable Automation Controller

IC695CPU320-CF RX3i 1GHz Celeron M CPU with 64MB User Memory

IC695CPU315-CD GE The IC695CPU315-CD CPU is in a mode

The PACSystems RX3i CPE400 series is reshaping the boundaries of industrial control through its open architecture, deterministic real-time performance and deeply integrated IT/OT capabilities. From ensuring water security in cities with a population of over ten million to building an intelligent and low-carbon rail transit network, this platform has continuously demonstrated its core value in complex industrial scenarios. With the advancement of Industry 5.0, this control center will accelerate the advancement of the manufacturing industry towards autonomous operation.
